Component Inspection





Engine Control
P0447 Evaporative Emission System-Vent Control Circuit Open - Inspection/Repair:_:Component Inspection

Component Inspection

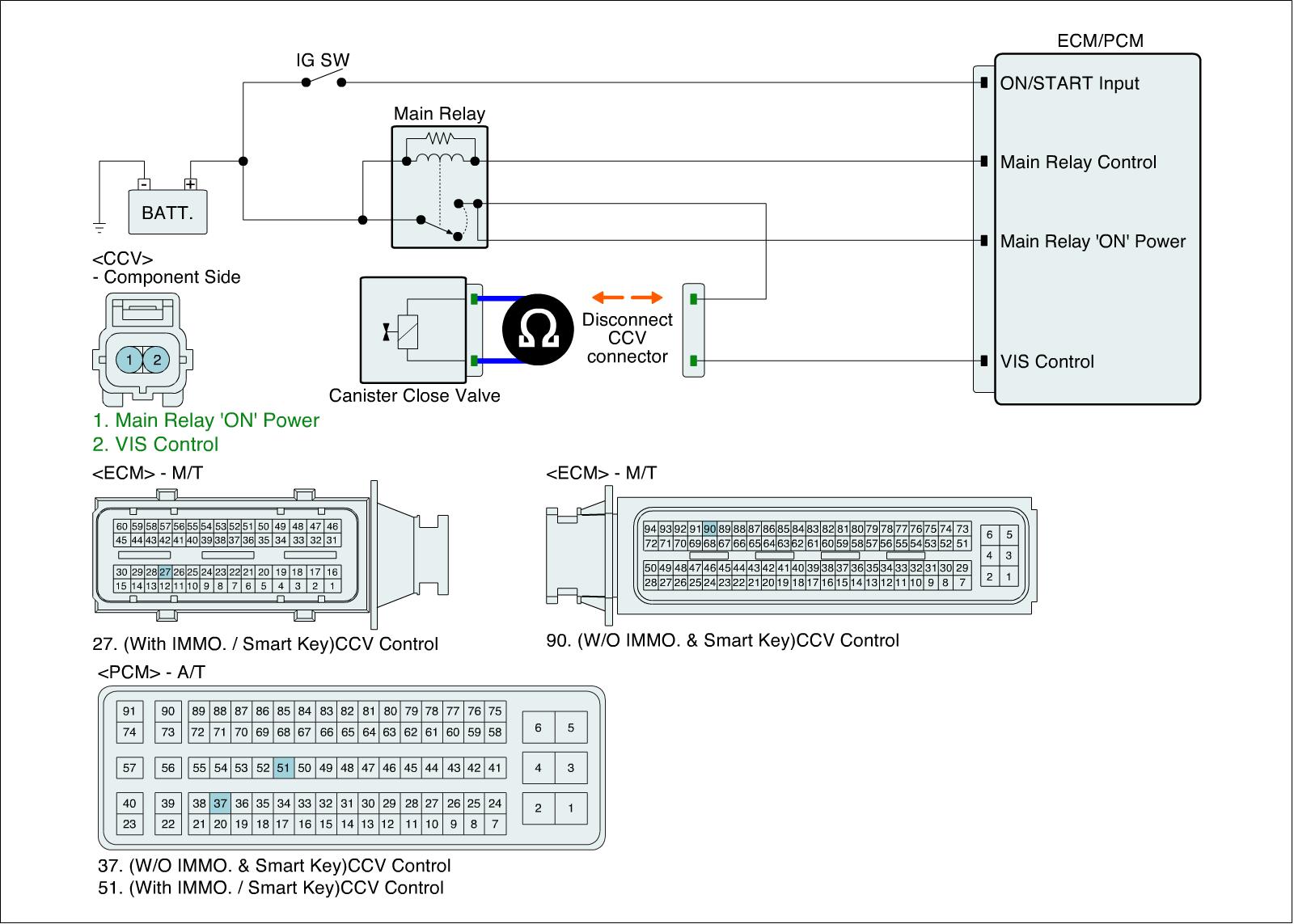

Check CCV
1. IG "OFF" and disconnect CCV connector.
2. Measure resistance between power and control terminals of CCV connector.(Component side)

Specification :23 - 26 Ohms (20°C(68°F))

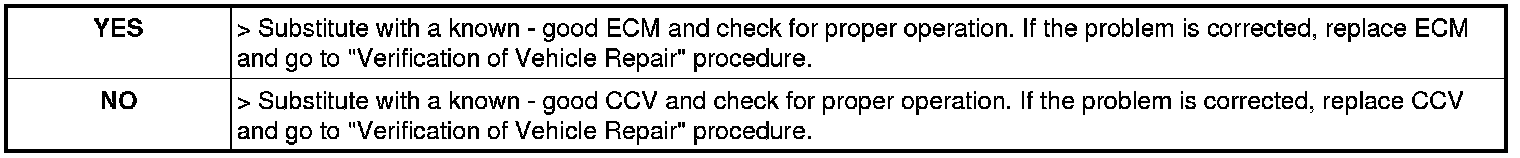

3. Is the measured resistance within specification ?
