General Information

Engine Control
P0441 Evaporative Emission System Incorrect Purge Flow - General Information

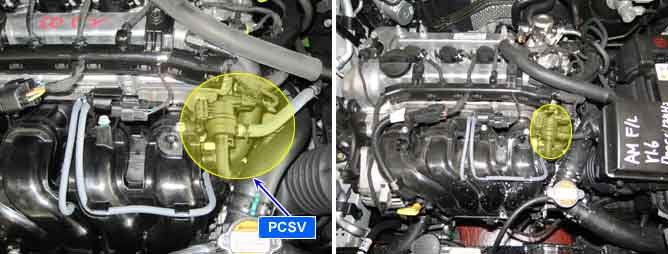

Component Location





General Description

The purge solenoid is a pneumatic device that meters the air and fuel (purge) vapor flow to thepurge port. In a sense, the purge solenoid is comparable to a fuel injector, because the meteredpurge flow follows the same slope and offset characteristics. However, the purge solenoidnormally runs with a duty cycle at a fixed frequency because the opening response is significantly slower than a fuel injector. It would not practical to run the solenoid synchronously with engine events except perhaps at very low RPM. The normal frequencies for the purge solenoid are between 8 and 20 Hz.

DTC Description

Checking output signals from fuel tank pressure sensor under evap.system test, if fuel tank's vacuum is higher than prescribed threshold, ECM sets P0441.

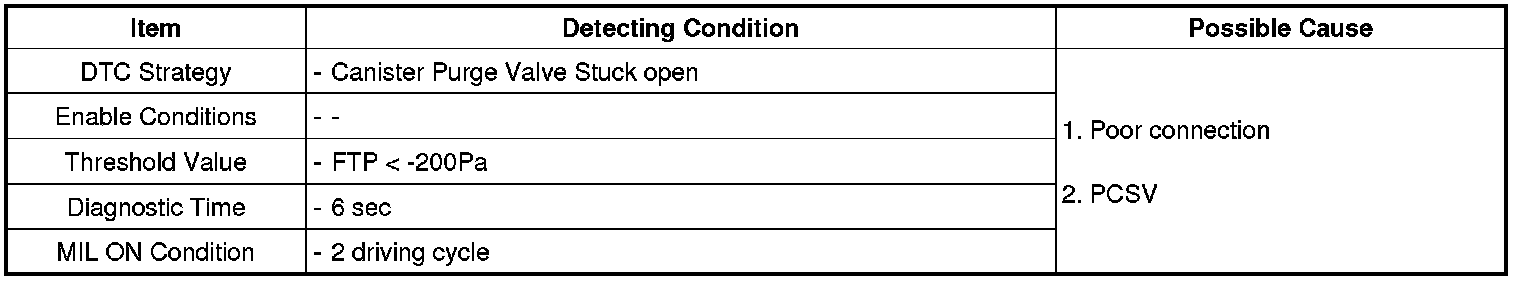

DTC Detecting Condition





Specification

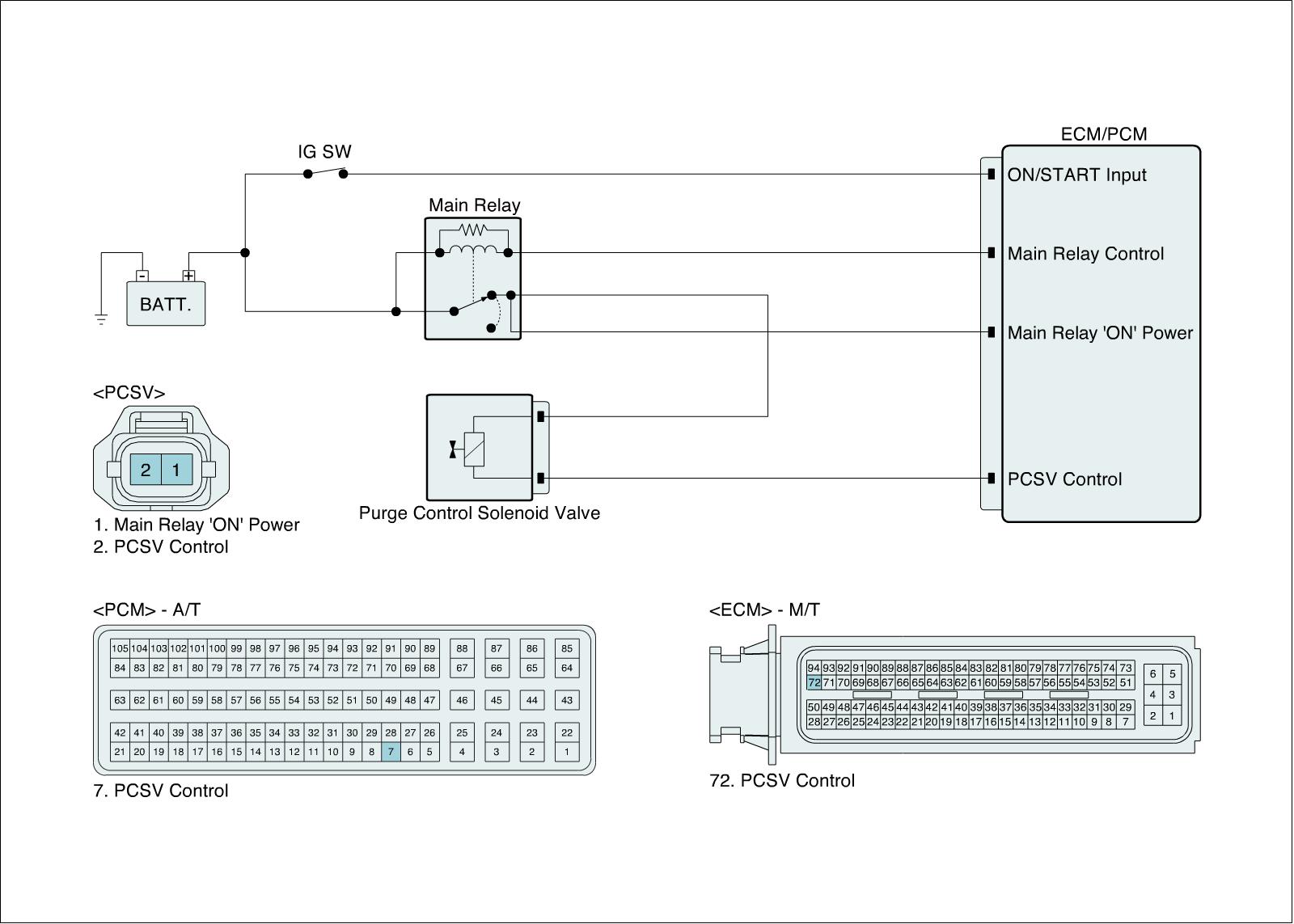

Diagnostic Circuit Diagram
