Scantool Diagnostics

Engine Control

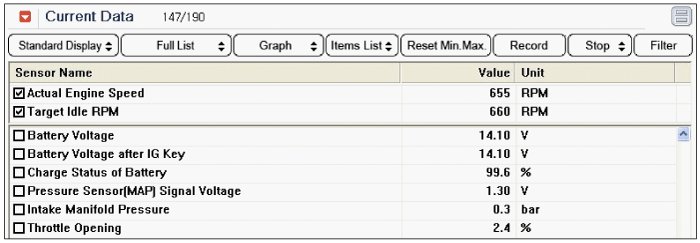

P0336 Crankshaft Position Sensor \'A\' Circuit Range/Performance - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Engine start.
3. Monitor the "Engine speed" parameters on the GDS.

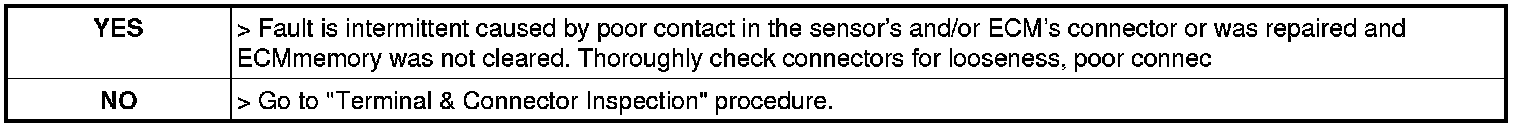

4. Are the parameters displayed correctly ?
