Component Inspection

Engine Control
P0270 Cylinder 4 Injector Circuit Low - Inspection/Repair:_:Component Inspection

Component Inspection

Injector check
1. IG KEY "OFF".
2. Disconnect injectors.
3. Check clog on injectors.
4. Measure the resistance between power and control terminal of injectors(Component side).
Specification :

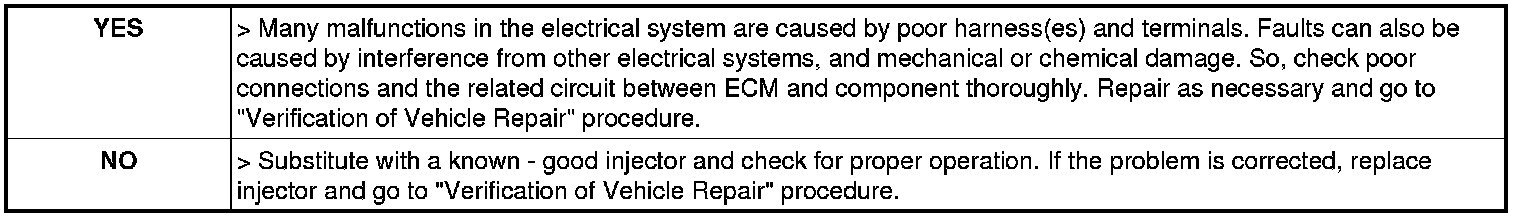

5. Is the measured resistance within specifications?
