Scantool Diagnostics

Engine Control
P0230 Fuel Pump Primary Circuit - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC)
2. Engine start.

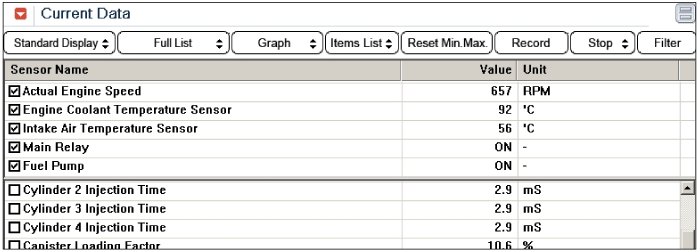

3. Monitor the "Fuel pump relay" parameters on the GDS.

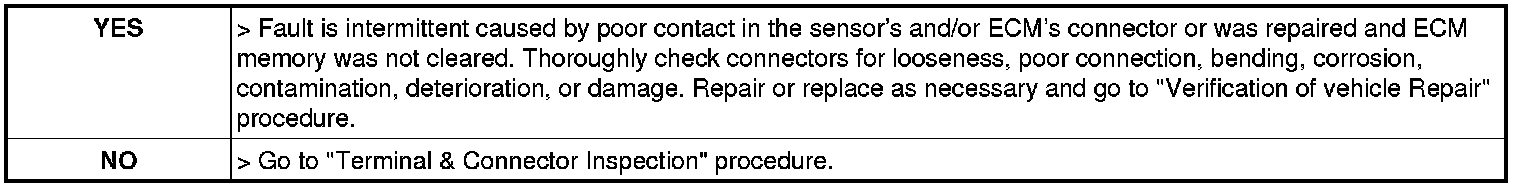

4. Are the parameters displayed correctly?
