P0017 Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B) - Inspection/Repair:_:Component Inspection

Component Inspection

Check CMPS, CKPS
1. IG "OFF".

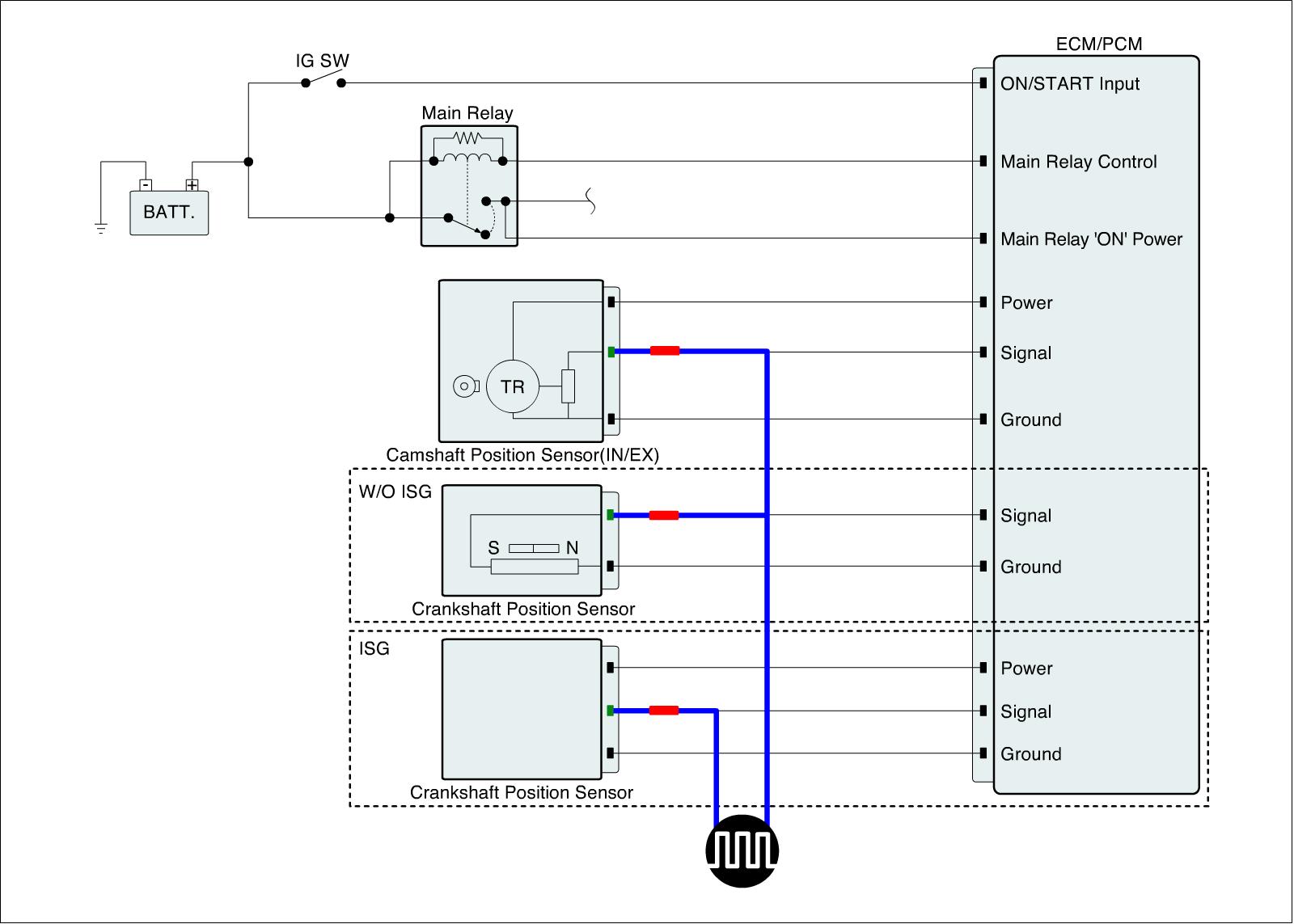

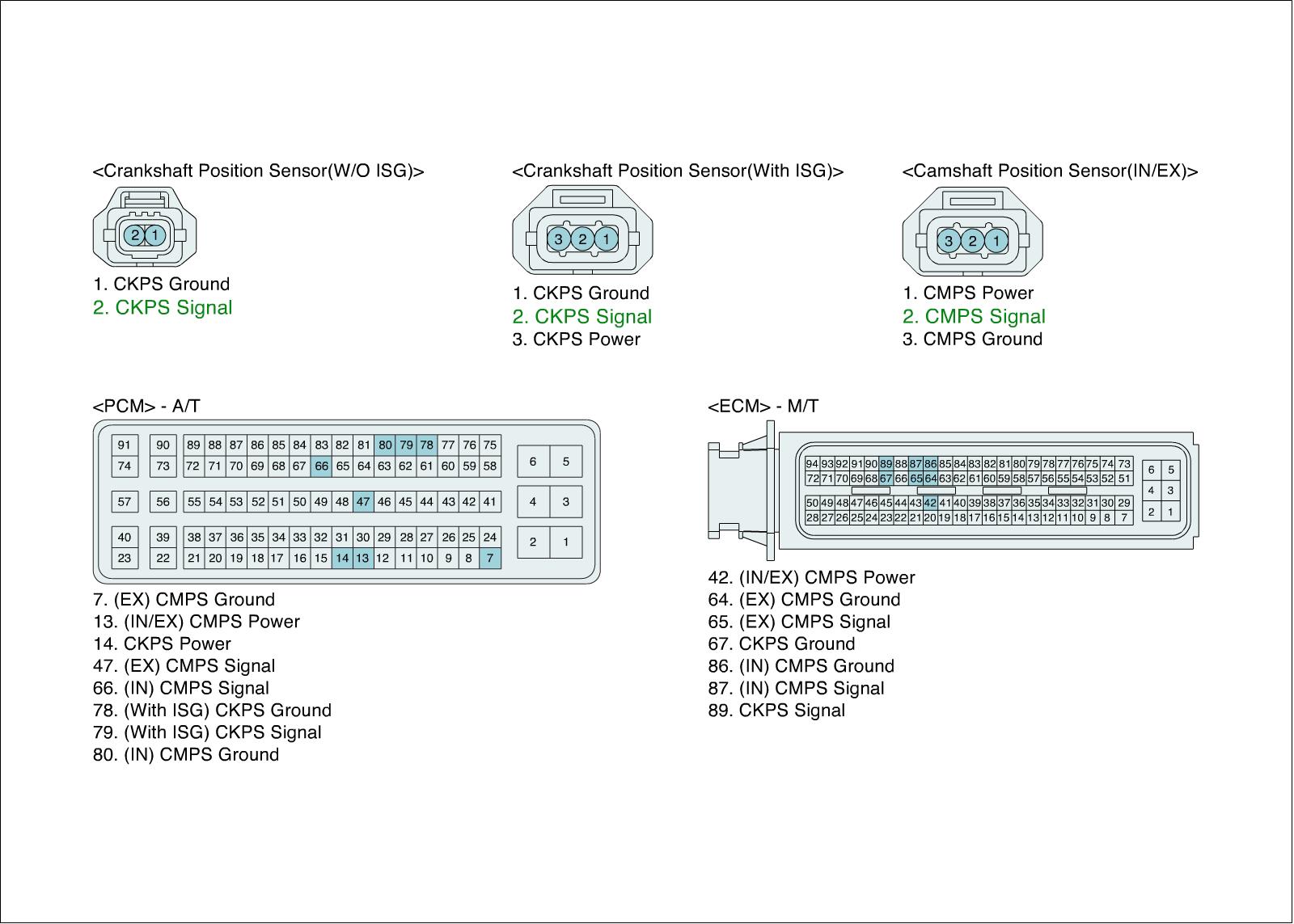

2. Select "vehicle scopemeter" in the menu, and connect channel A of GDS with signal terminal of CKPS harness connector.
3. Connect Channel B of GDS with power or signal terminal of CMPS harness connector.
4. Engine start. And check the signal waveforms.

Specification :Refer to Signal Waveform & Data








5. Is the measured signal waveforms of CKPS/CMPS normal?





Check timing mark
1. IG "OFF".
2. Check timing mark.

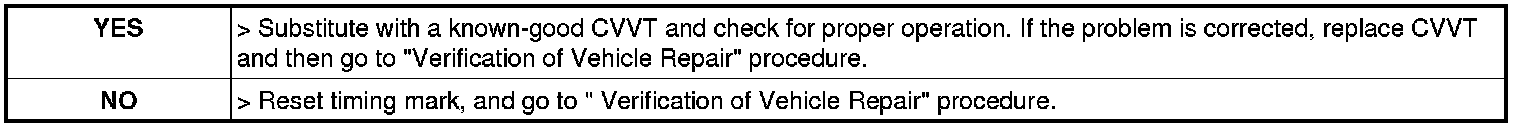

3. Is timing mark normal?
