Component Inspection

Engine Control
P0011 \'A\' Camshaft Position-Timing Over-Advanced or System Performance (Bank 1) - Inspection/Repair:_:Component Inspection

Component Inspection

Check OCV
1. Connect GDS to Data Link Connector(DLC).
2. IG KEY "ON" & ENG "OFF".
3. Perform "Actuation Test" for OCV.

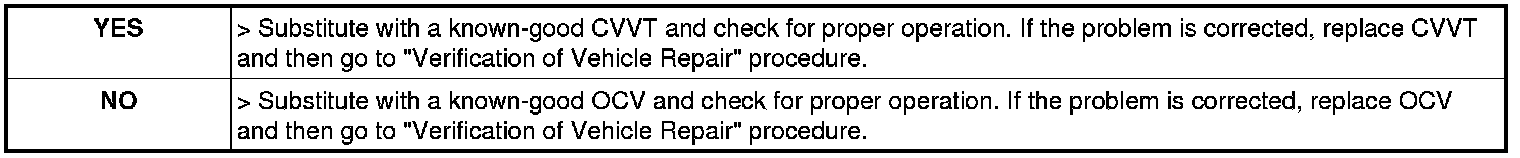

4. Does the OCV work normally? (Check cliking sound)
