General Information

Motor Driven Power Steering
C2401 Motor circuit - General Information

Component Location





General Description

There is a sensor to detect a motor position in EPS CM for controlling EPS motor preciously.
ESP CM controls a motor according to a data read from this sensor.

DTC Description

EPS CM sets this code and inhibits EPS if a data read from motor position sensor has an error.

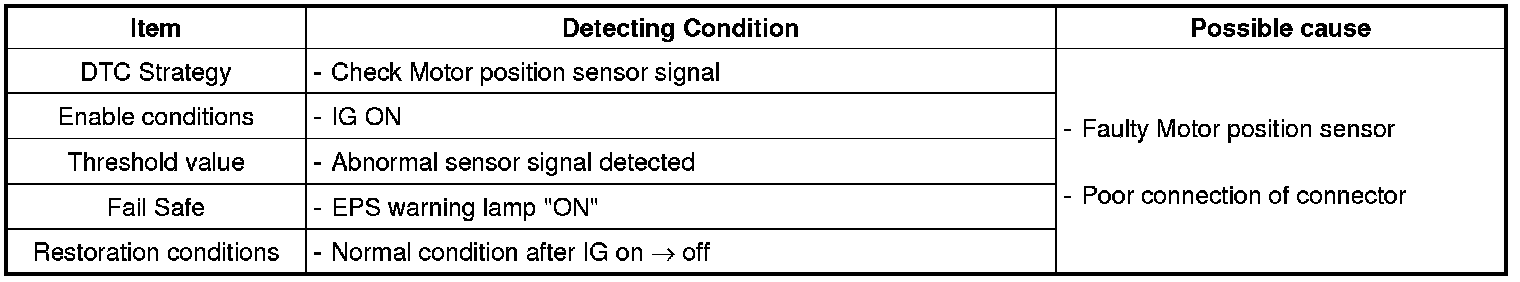

DTC Detecting Condition
