Scantool Diagnostics

Motor Driven Power Steering
C1702 Variant Coding Error - Scantool Diagnosis:_:Monitor Scantool Data

Monitor Scantool Data

EPS Type recognition
1. Connect scantool to Data Link Connector(DLC)
2. Ignition "OFF" and then Ignition "ON".
3. Choose the area type (figure 1).
4. Ignition "OFF" & Wating 20sec.
5. Ignition "ON".
6. Select "Diagnostic Trouble Codes(DTCs)" mode again.

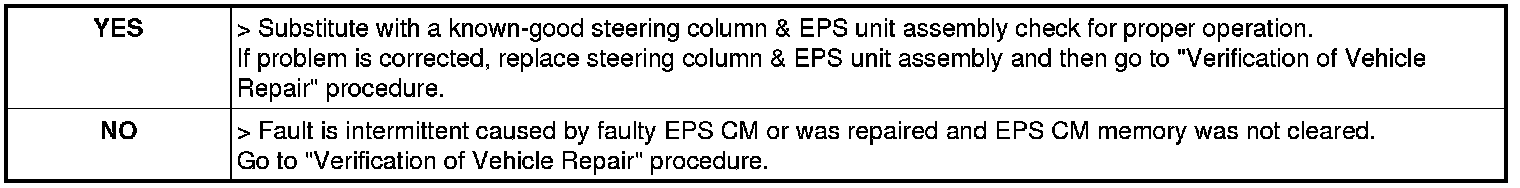

7. Are any DTCs present ?
