General Information

Motor Driven Power Steering
C1700 Byte Coding Error - General Information

Component Location





General Description

EPS CM has a various parameter setting for different steering feeling according to applied region. EPS CM reads a proper parameter setting according to applied region.

DTC Description

EPS CM sets this code if parameter setting data read from memory is out of normal range.

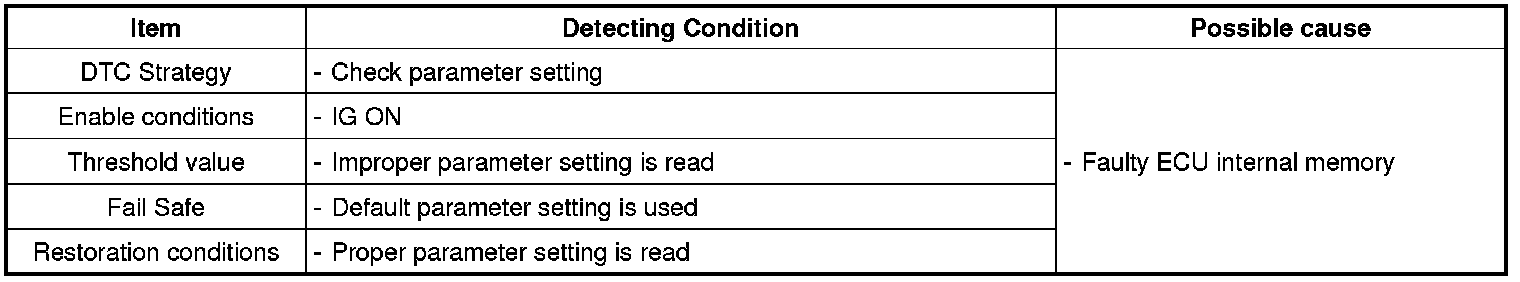

DTC Detecting Condition
