Scantool Diagnostics

Tire Pressure Monitoring System
C1312 Sensor 1 Radio Frequency Channel Failure - Scantool Diagnostics

Monitor GDS Data

1. Park the vehicle on an even ground.
2. Connect GDS to Data Link Connector(DLC).
3. IG "ON"
4. Monitor the service data related to TPMS sensor on the GDS.

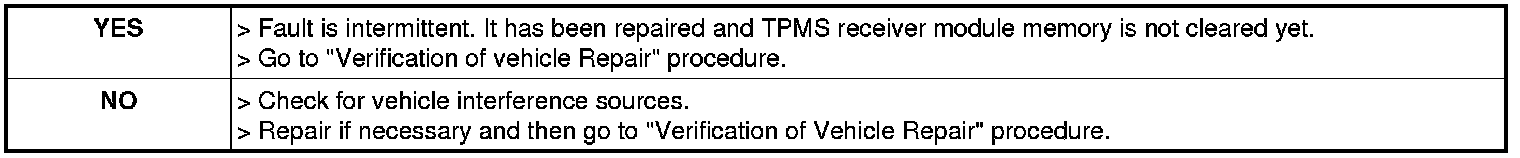

5. Are parameters normal?
