Monitor Scantool Data

Motor Driven Power Steering
C1103 Ignition Voltage Fault - Scantool Diagnosis:_:Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Start engine and turn the headight and the heatwire on.
3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.
4. Maintaining ENG. RPM at 2,500RPM(idle) over 2 minutes.

Specification :Battery Voltage

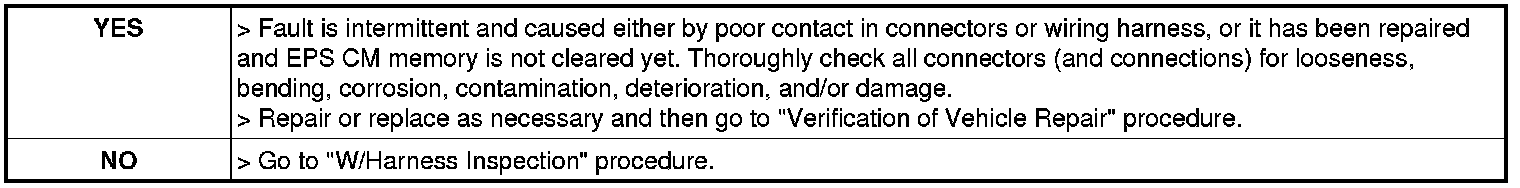

5. Is parameter within specifications?
