Scantool Diagnostics

Electronic Stability Control
C1101 Battery Voltage High - Scantool Diagnostics:_:Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the GDS.

Specification :Below. 17.5V




Fig.1) Normal Data at ENG "ON"

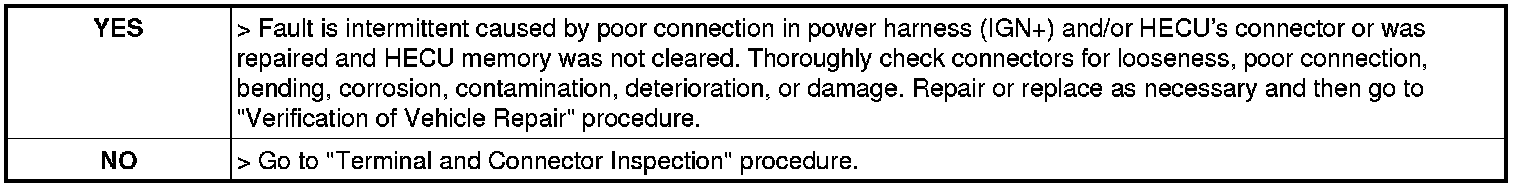

4. Is parameter displayed within specifications ?
