Scantool Diagnostics

Smart Key Unit
B1613 CAN Timeout Between SMK and CLU - Scantool Diagnostics

Monitor GDS data

Check DTC
1. Check DTC with GDS.
2. Check DTC related CAN communication is set on SMK Module and every modules.
3. If there is DTC related Module Check the DTC according to troubleshooting guide.
4. Repair and erase the DTC with GDS.

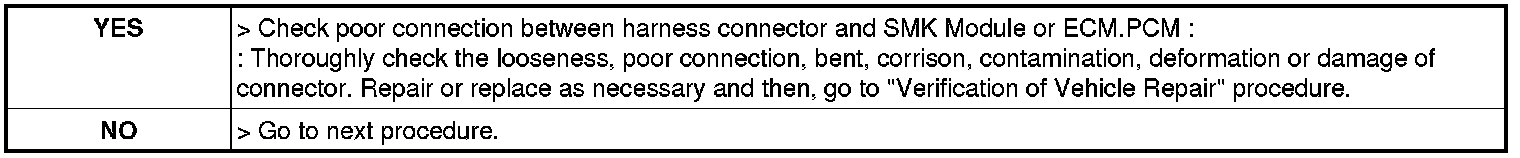

5. Is the DTC erased ?
