Scantool Diagnostics

Airbag(Event #1)
B1387 STPS(Seat Track Position Sensor)-Driver Short or Short to Ground - Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Current Data" mode.
3. Monitor the "STPS-Driver status" parameter on the Scantool.

Specification :STPS-Driver the front : Forward, STPS-Driver the rear : Rearward




Fig 1) STPS-Driver Data

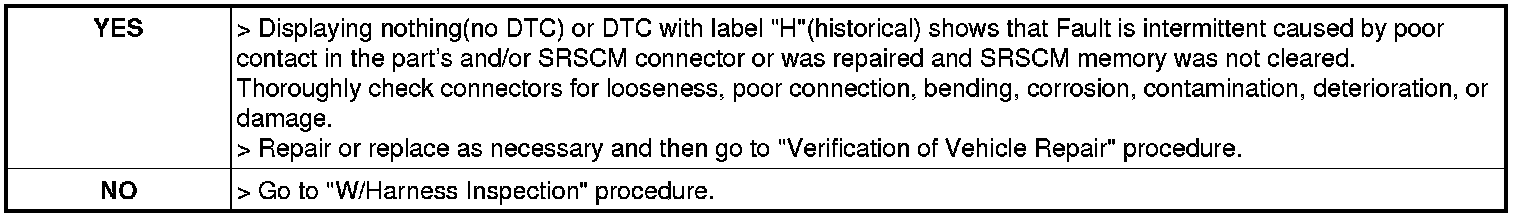

4. Is DTC present problem ?
