Home >> Kia >> 2012 >> Rondo (CANADA) V6-2.7L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Service and Repair

Power Window Switch: Service and Repair





COMPONENTS

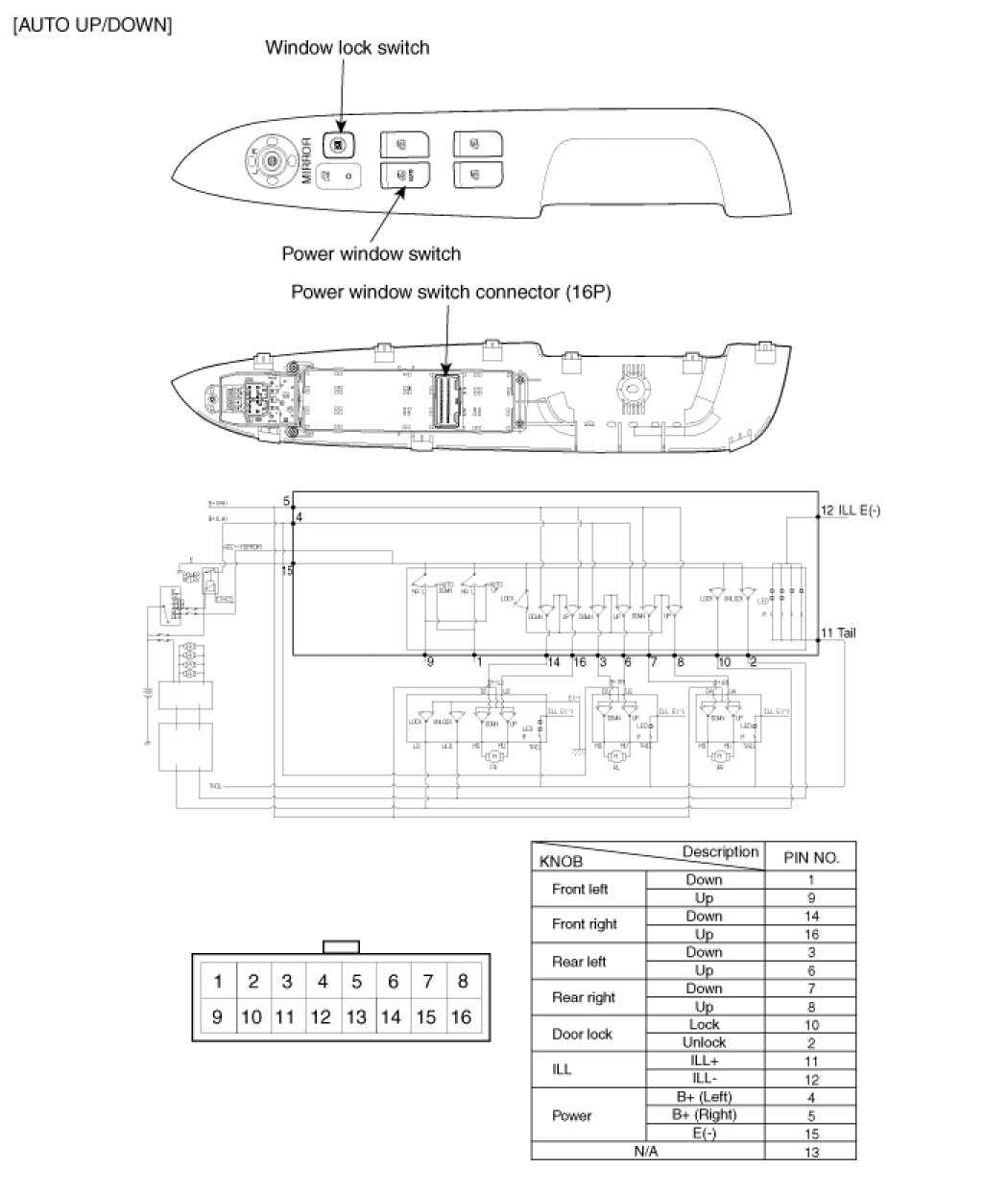

POWER WINDOW MAIN SWITCH

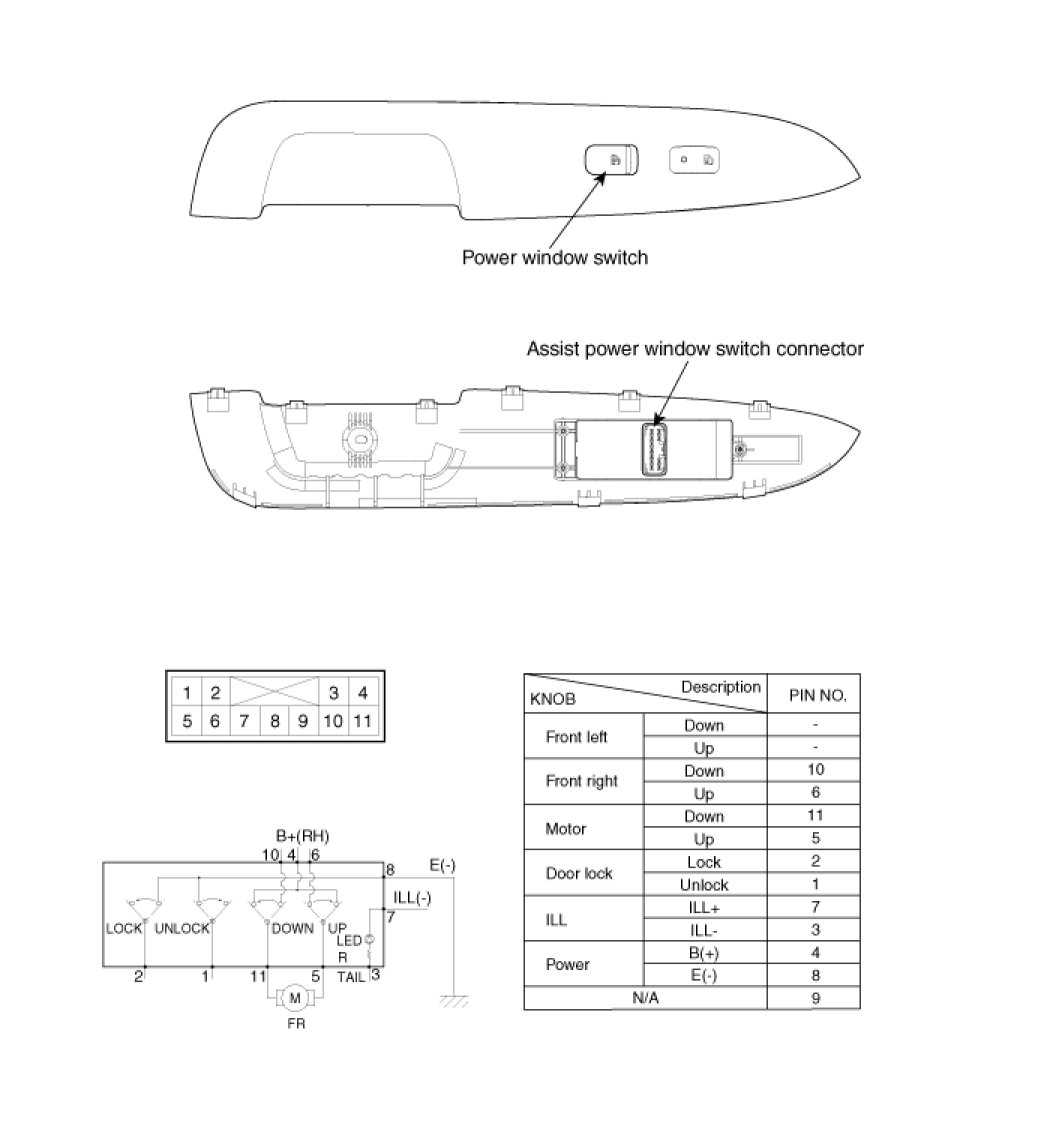

ASSIST POWER WINDOW SWITCH

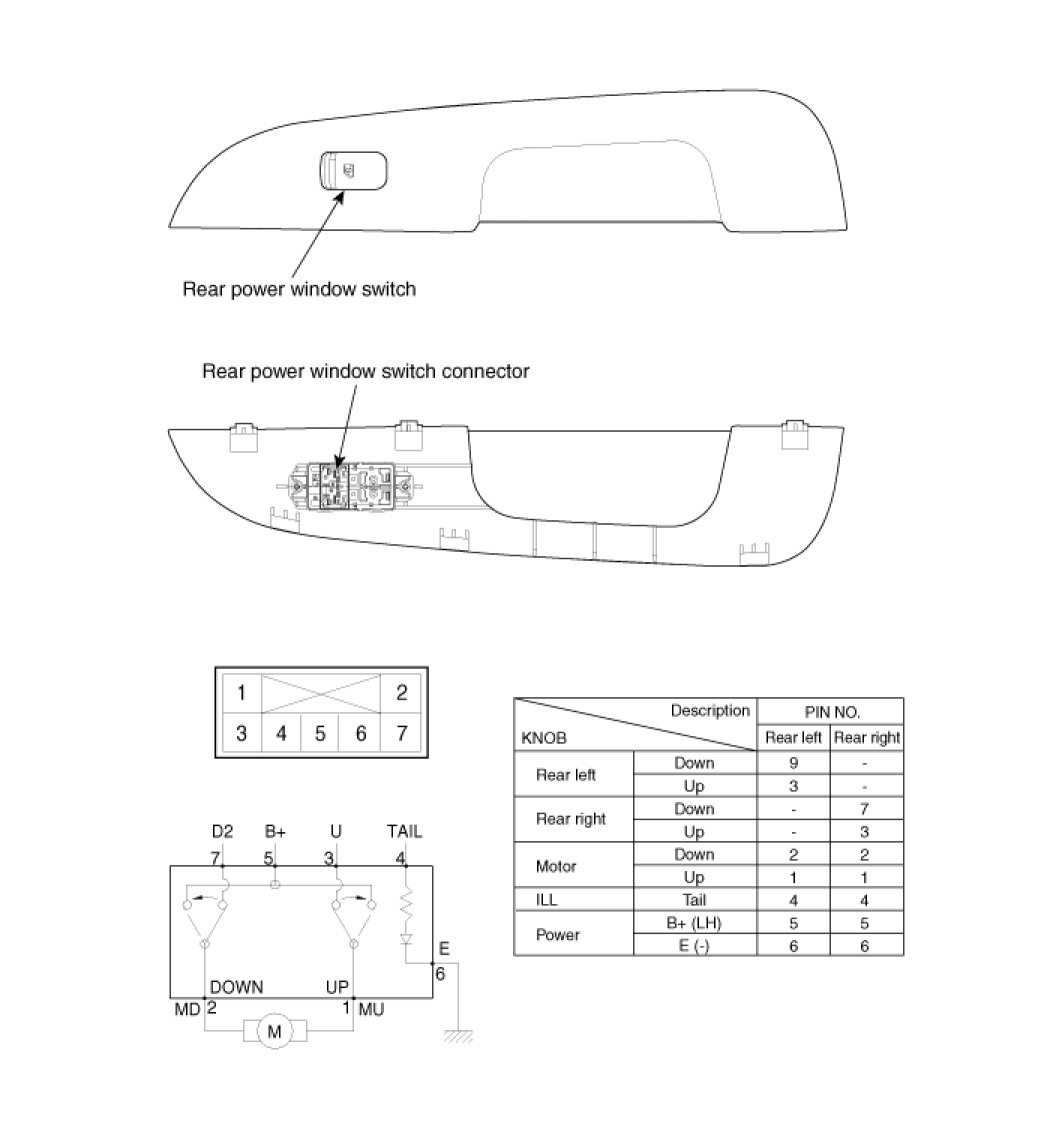

REAR POWER WINDOW SWITCH
