Cylinder Head Assembly: Specifications

Cylinder Head

After putting the cylinder head gasket on the cylinder block, install the cylinder head.






CAUTION: Ensure the LH/RH classification of the cylinder head gasket when installing.

Tighten the cylinder head bolts with the plain washers in several steps as following order.

NOTE:
- In assembling washers, the marked surface should face upward.
- In installing the cylinder head bolts, apply engine oil on the thread of the bolts and the surface of the washers.

CAUTION: Always use new cylinder head bolts.

Tightening torque 22.6 - 26.5 Nm (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft) + 58 - 62° + 43 - 47°






NOTE: Using the SST(09221-4A000), tighten the bolts which need to be tightened with the angular tightening method.

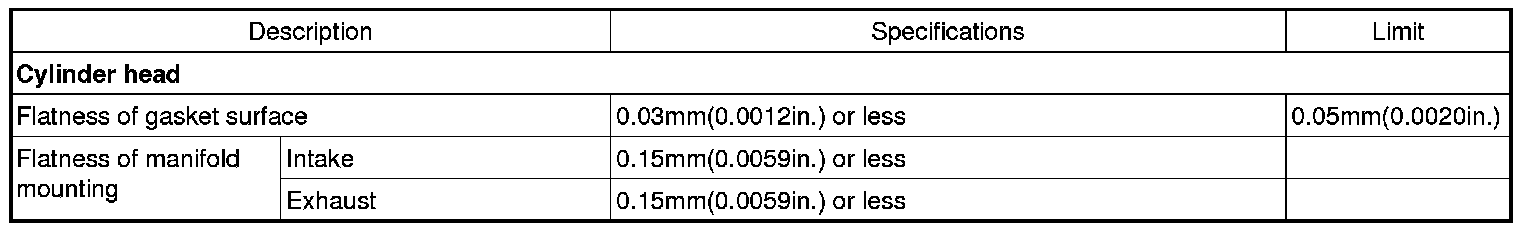

SURFACE VARIATION - WARPAGE






Camshaft Bearing

Install the camshaft bearing caps.

Tightening torque

Bearing cap bolt(A: 6•38) 10.8 - 12.7 Nm (1.1 - 1.3 kgf.m, 8.0 - 9.4 lb-ft)
Bearing cap bolt(B: 8•38) 20.6 - 22.5 Nm (2.1 - 2.6 kgf.m, 15.2 - 18.8 lb-ft)






NOTE: When installing the bearing caps, check the marks on them as shown below and install them in its proper position.






A(LH/RH HEAD): L(LH), R(RH)
B(Intake/Exhaust): I(Intake), E(Exhaust)
C(Cap no.): 1,2,3


For Intake Manifold specifications, refer to Specifications. Specifications

For Exhaust Manifold specifications, refer to Specifications. Specifications

For Camshaft Gear/Sprocket specifications, refer to Specifications. Specifications
