Home
>>
Kia
>>
2012
>>
Rondo (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Control Harness
Control Harness
Control Harness:

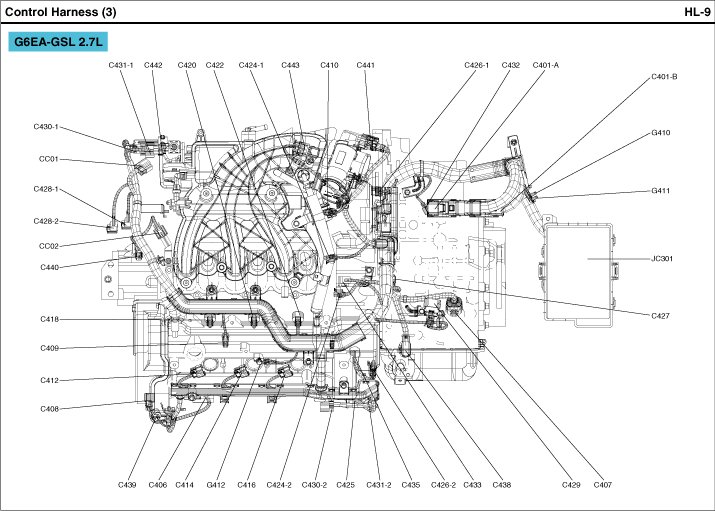

Control Harness View:

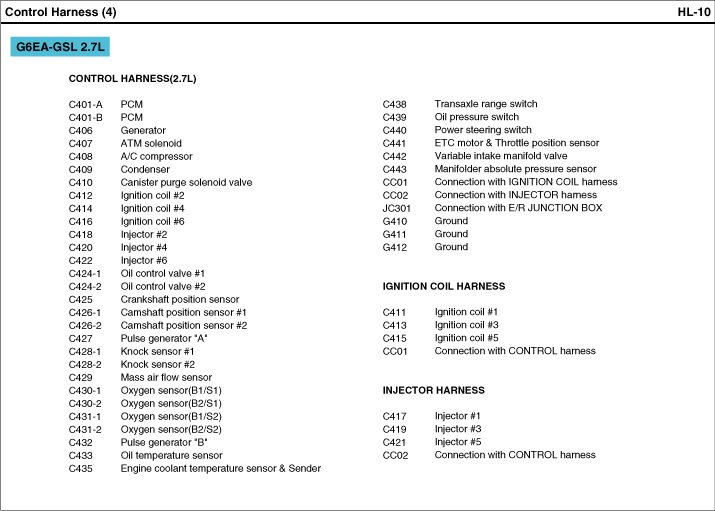

Control Harness Index:
