MFI Control Systems (5)

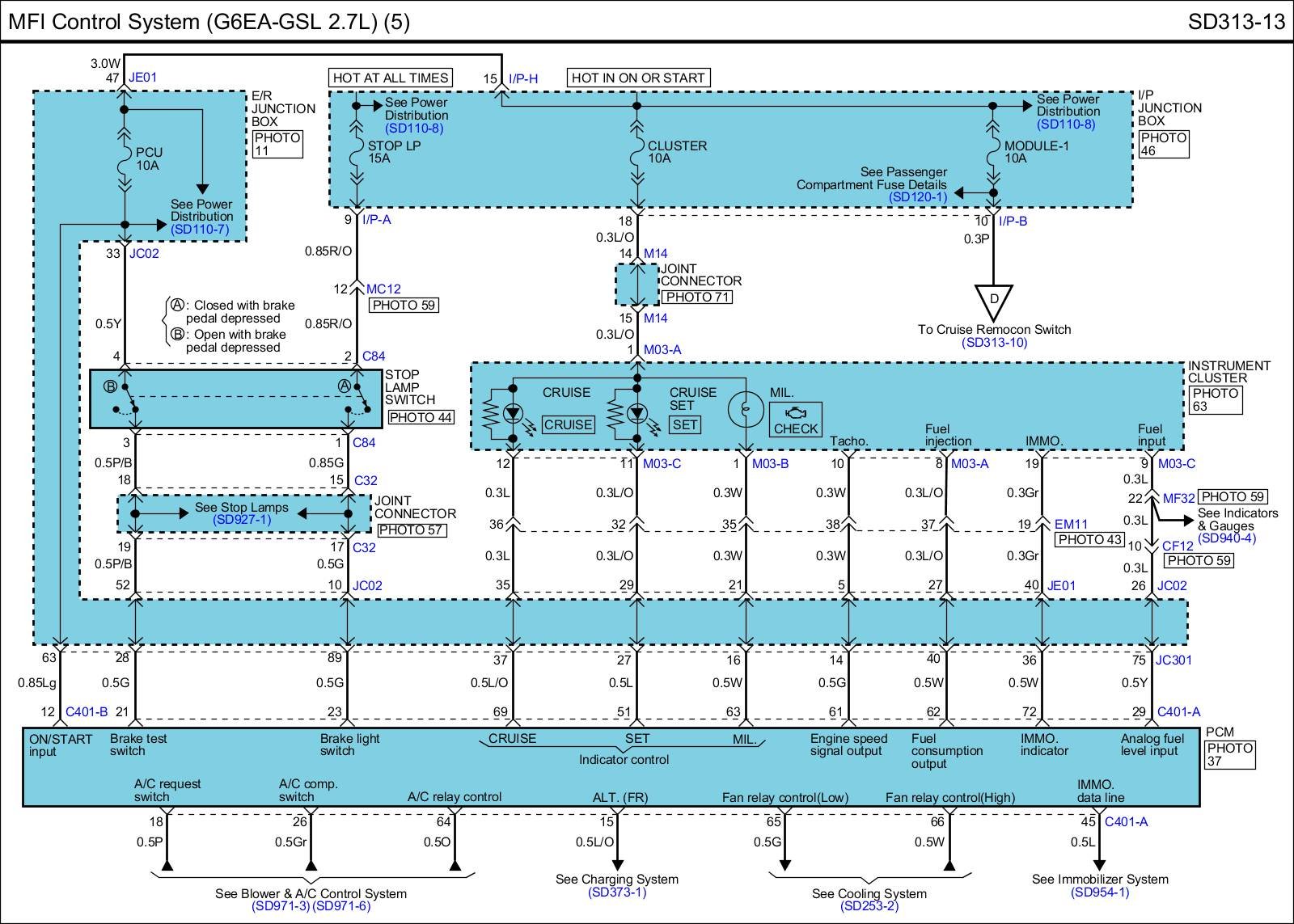

SD313-13 MFI Control System (5):

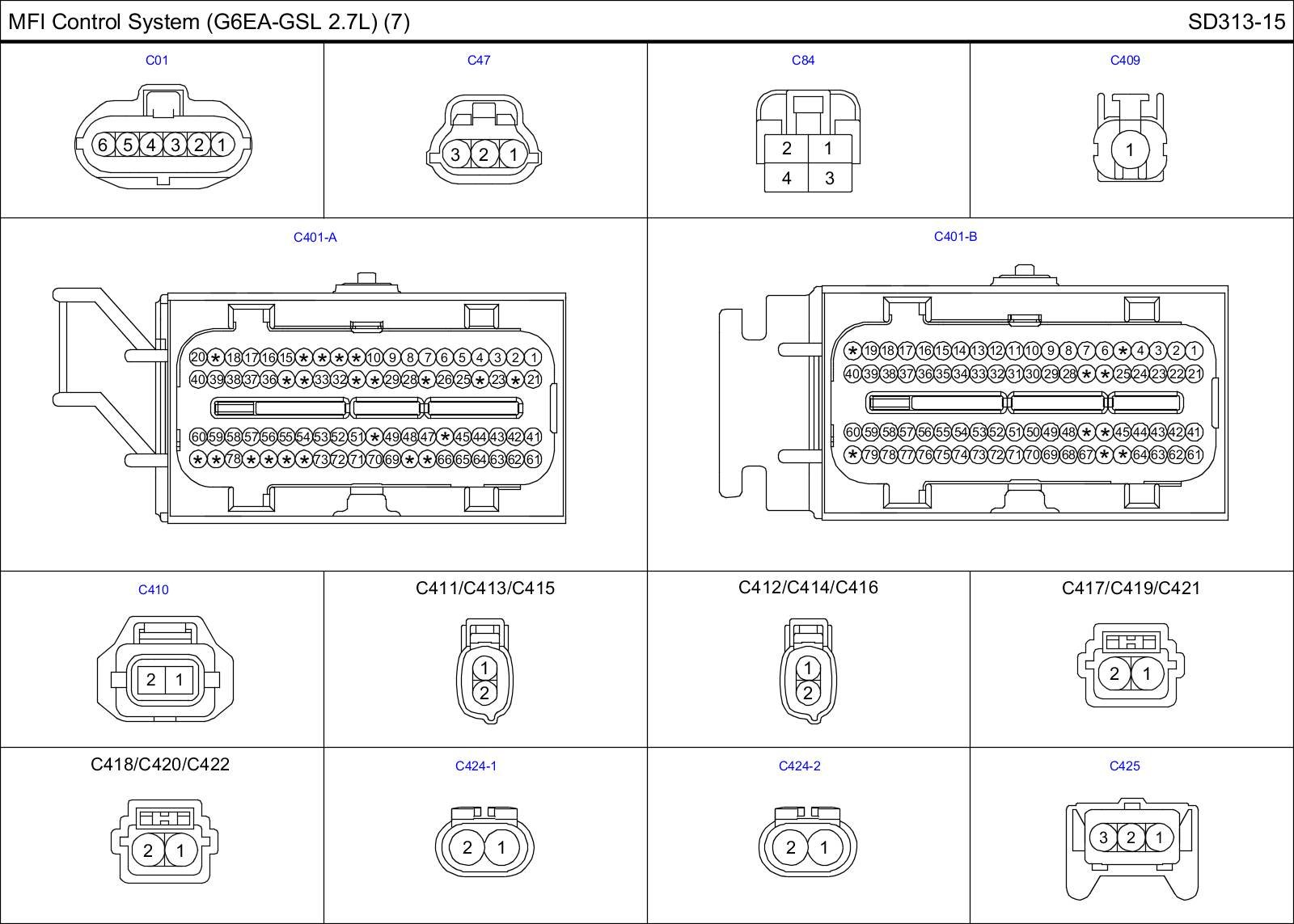

MFI Control System (7) Connector Pin Outs:

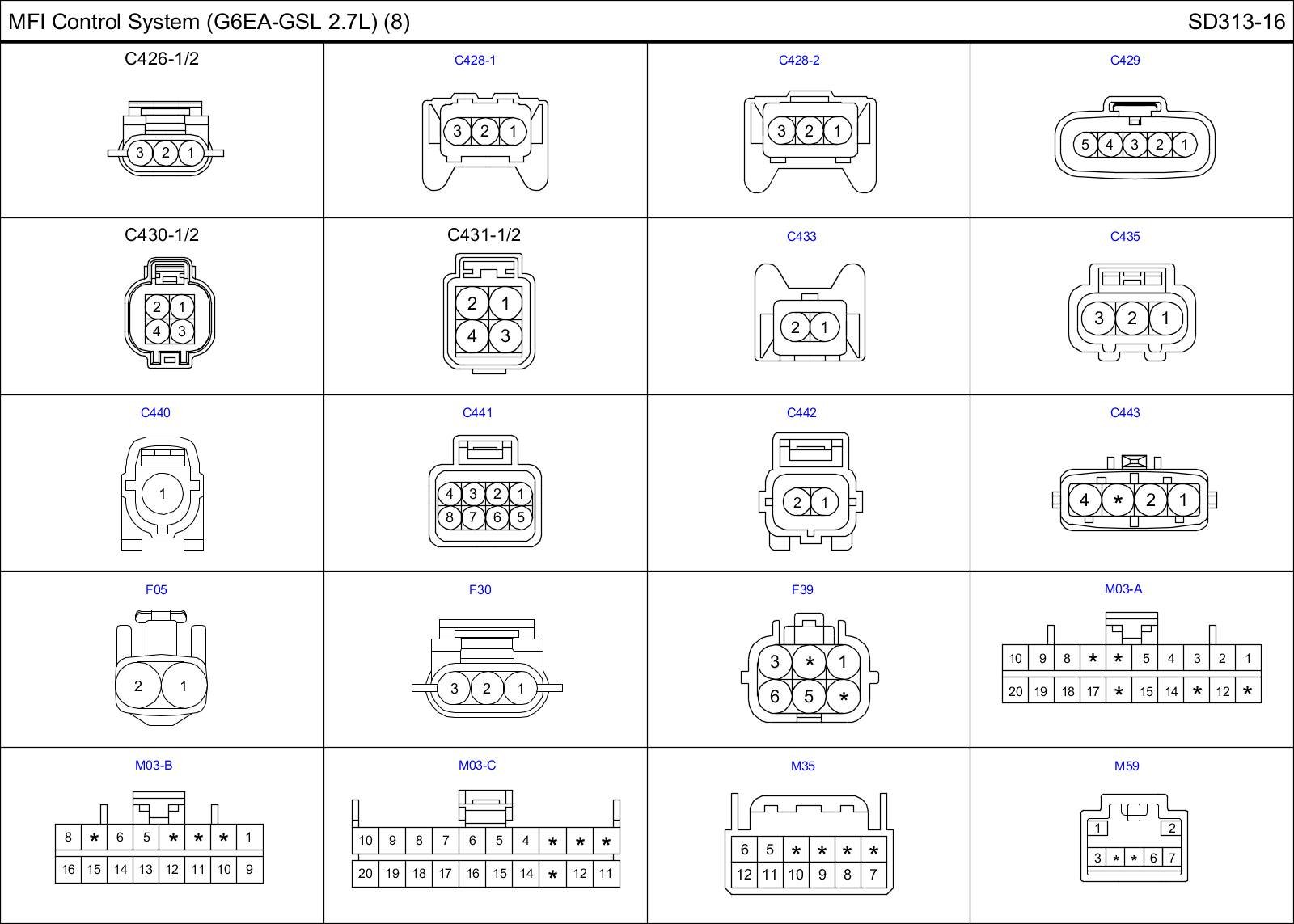

MFI Control System (8) Connector Pin Outs:

Next Diagram MFI Control Systems (6)

Previous Diagram MFI Control Systems (4)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
