ESP (Electronic Stability Program) System

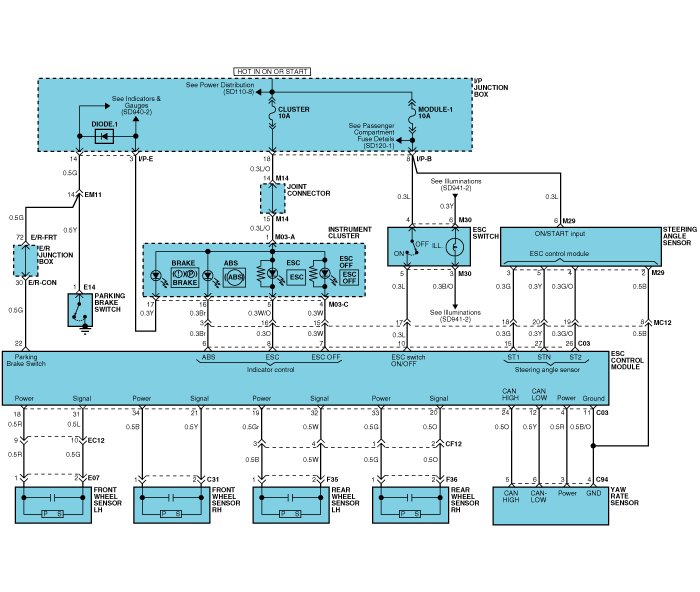

Circuit Diagram - ESC(1)

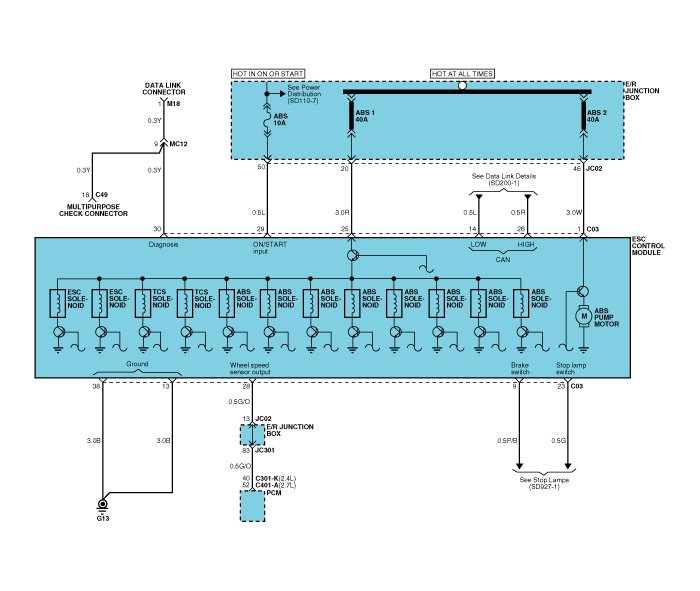

Circuit Diagram - ESC(2)

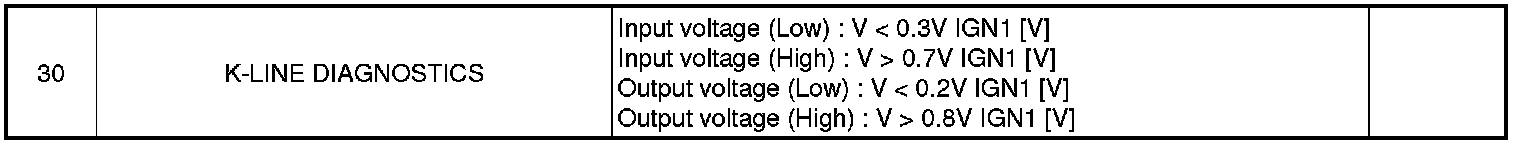

ESC Connector Input/output
