Remote Control: Service and Repair

REMOVAL

1. Disconnect the negative (-) battery terminal.
2. Remove the driver airbag module (A).
.




3. Remove the audio remote control switch (A) after removing fixing screws (2EA).






INSTALLATION

1. Connect the audio remote control switch connector and install the audio remote control switch.
2. Install the driver airbag module.
.

INSPECTION

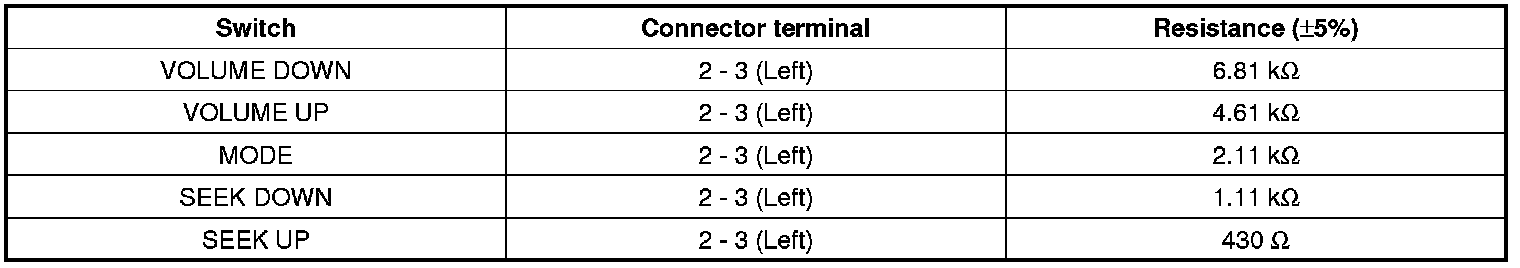

1. Check for resistance between No.2 and No.3 terminals in each switch position.
