Windshield Washer Motor: Service and Repair

REMOVAL

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

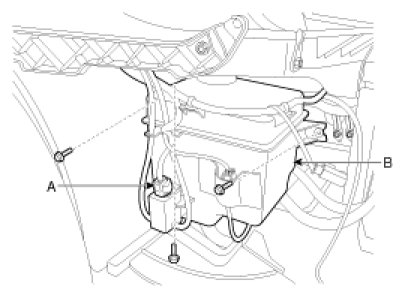

3. Remove the washer hose and the washer motor connector (A). Remove the washer reservoir (B) after removing 3 bolts.






INSTALLATION

1. Install the washer reservoir.
2. Install the washer motor and connect the washer hose and the motor connector.
3. Install the front bumper cover.

INSPECTION

1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

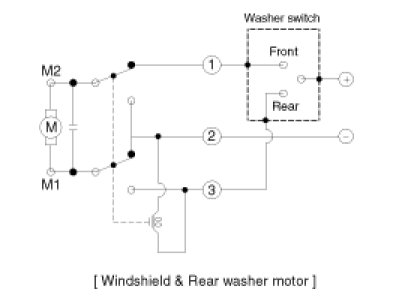

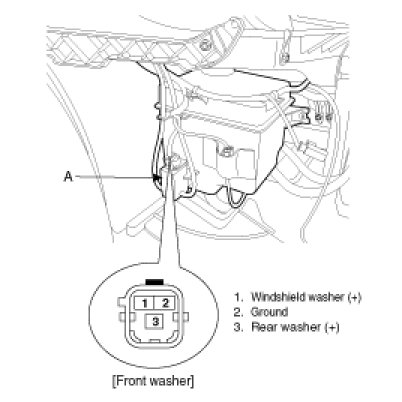

2. Connect positive (+) battery cables to terminal 1 and negative (-) battery cables to terminal 2 respectively.
3. Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
4. If they are abnormal, replace the washer motor (A).
