System Specifications





SPECIFICATIONS

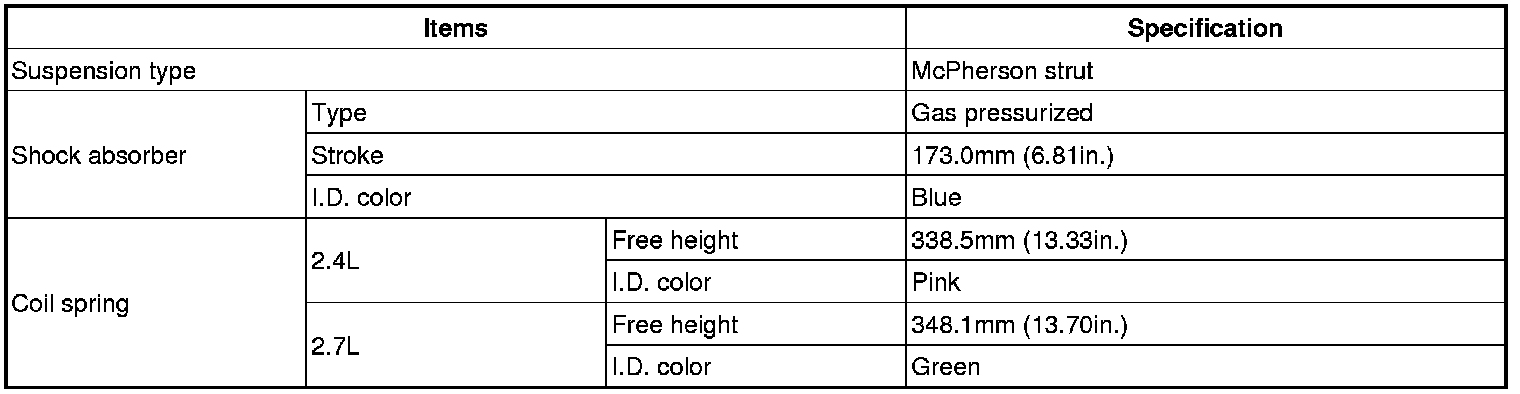

FRONT SUSPENSION

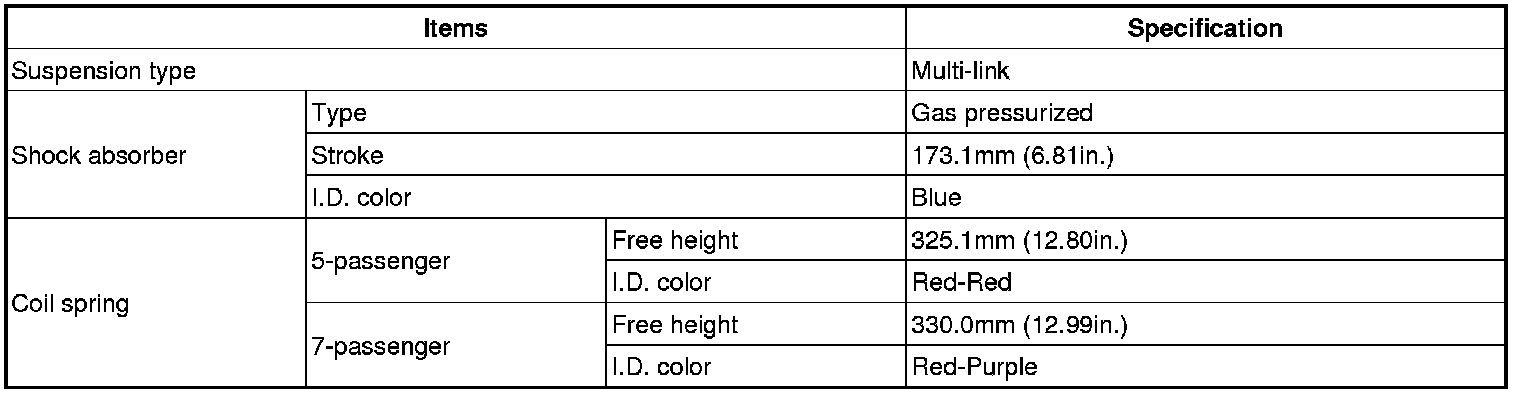

REAR SUSPENSION

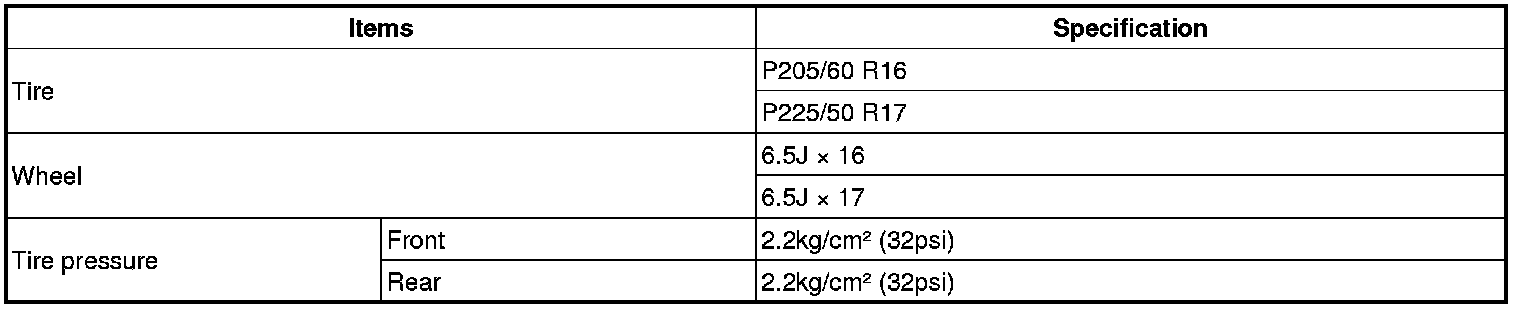

WHEEL AND TIRE





WHEEL ALIGNMENT






TIGHTENING TORQUE

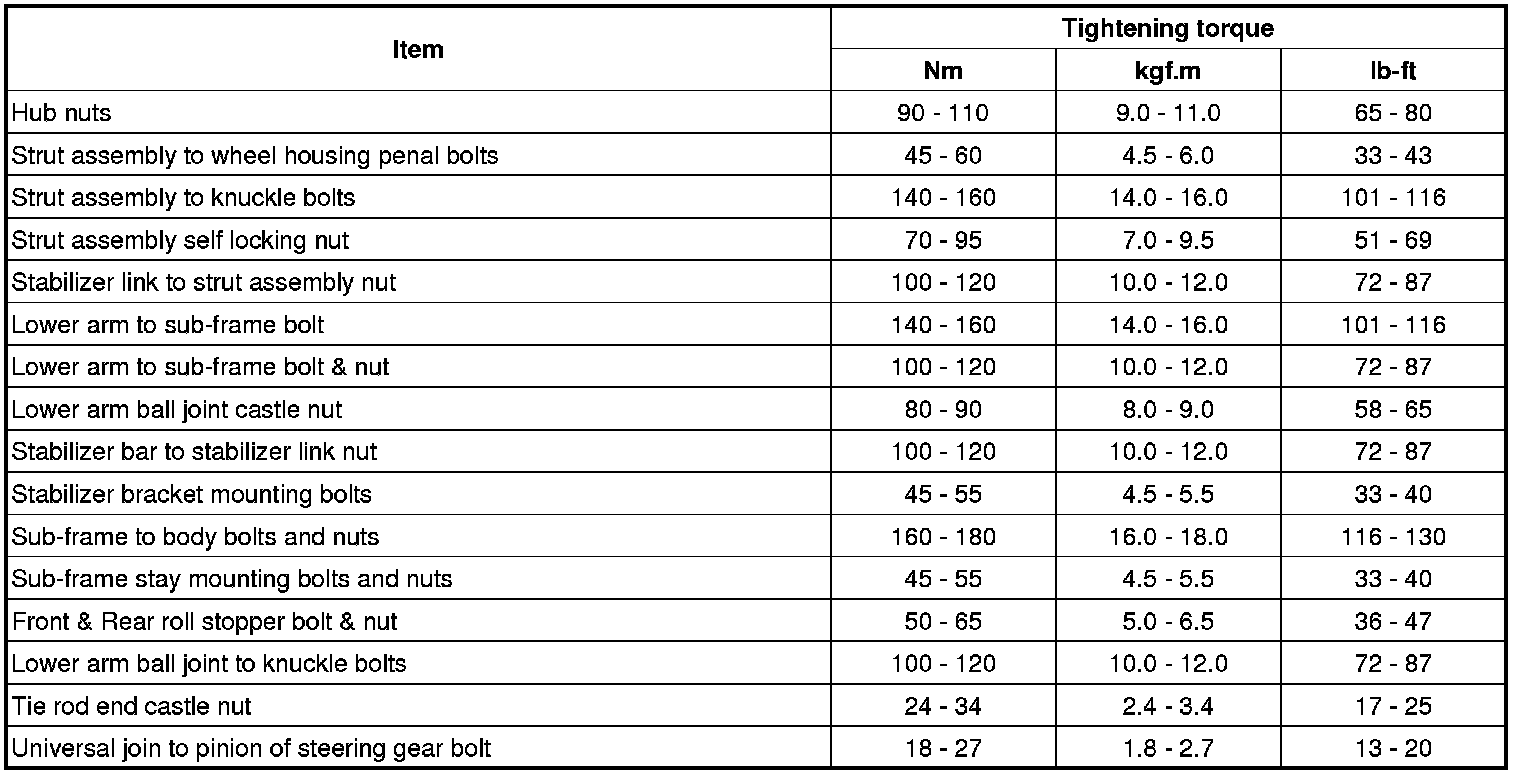

FRONT SUSPENSION

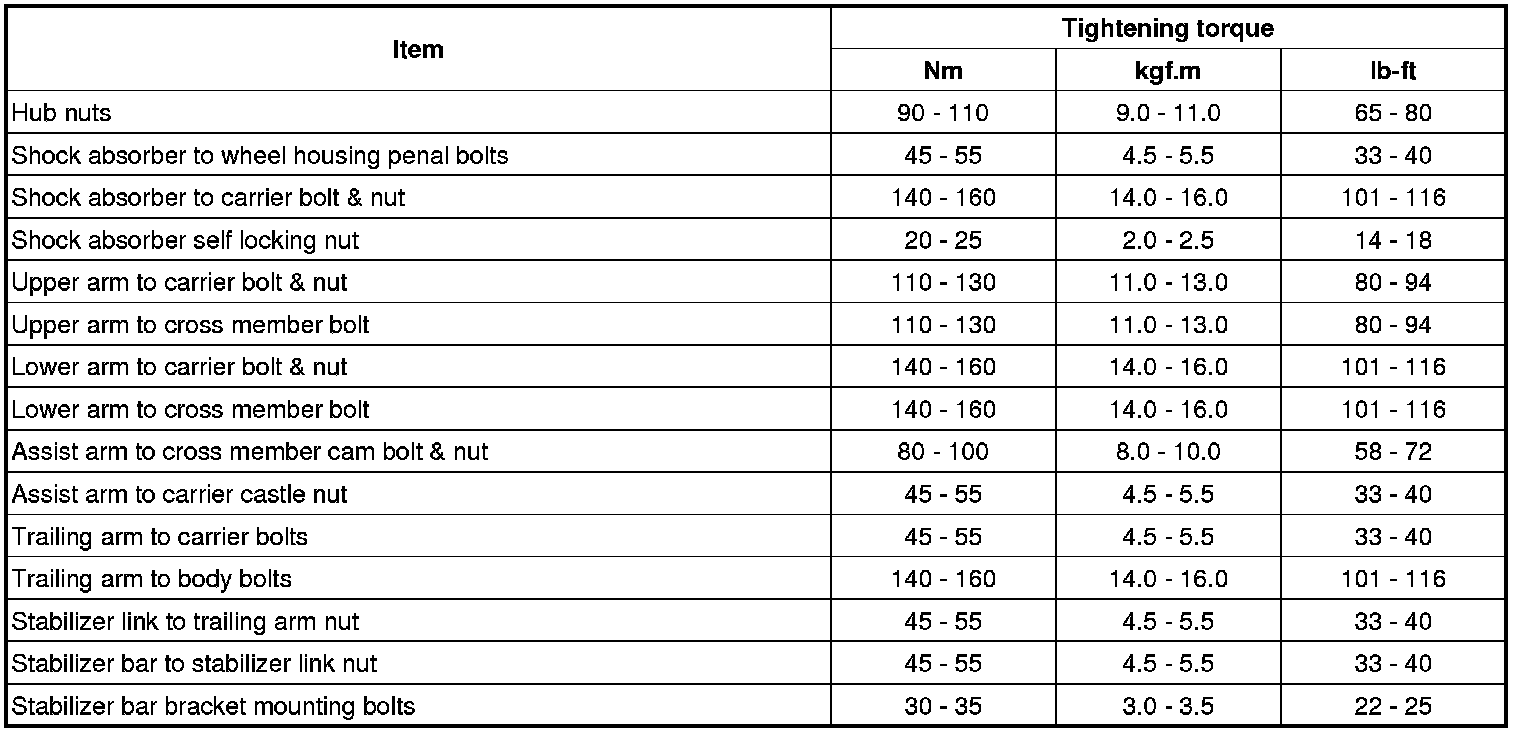

REAR SUSPENSION
