System Specifications

Specifications

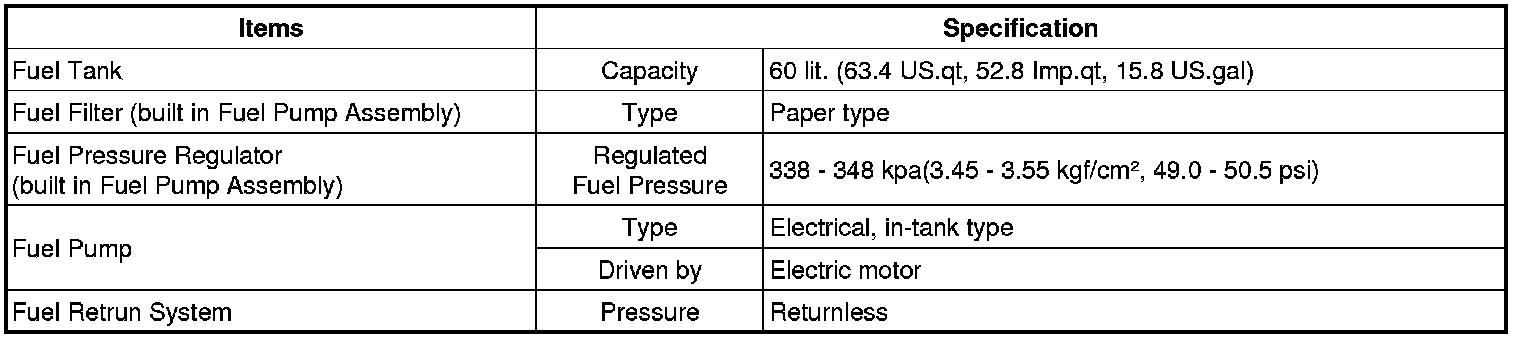

Fuel Delivery System






Sensors

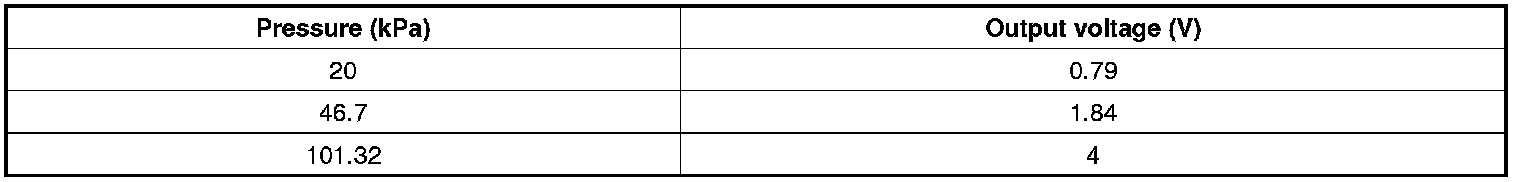

Manifold Absolute Pressure Sensor (MAPS)
- Type: Piezo-resistive pressure sensor type
- Specification

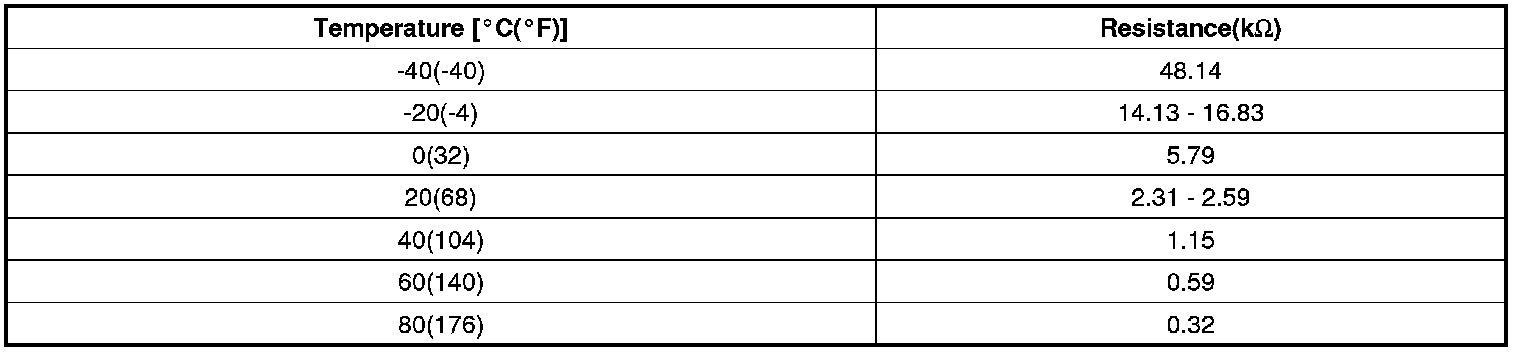

Intake Air Temperature Sensor (IATS)
- Type: Thermistor type
- Specification

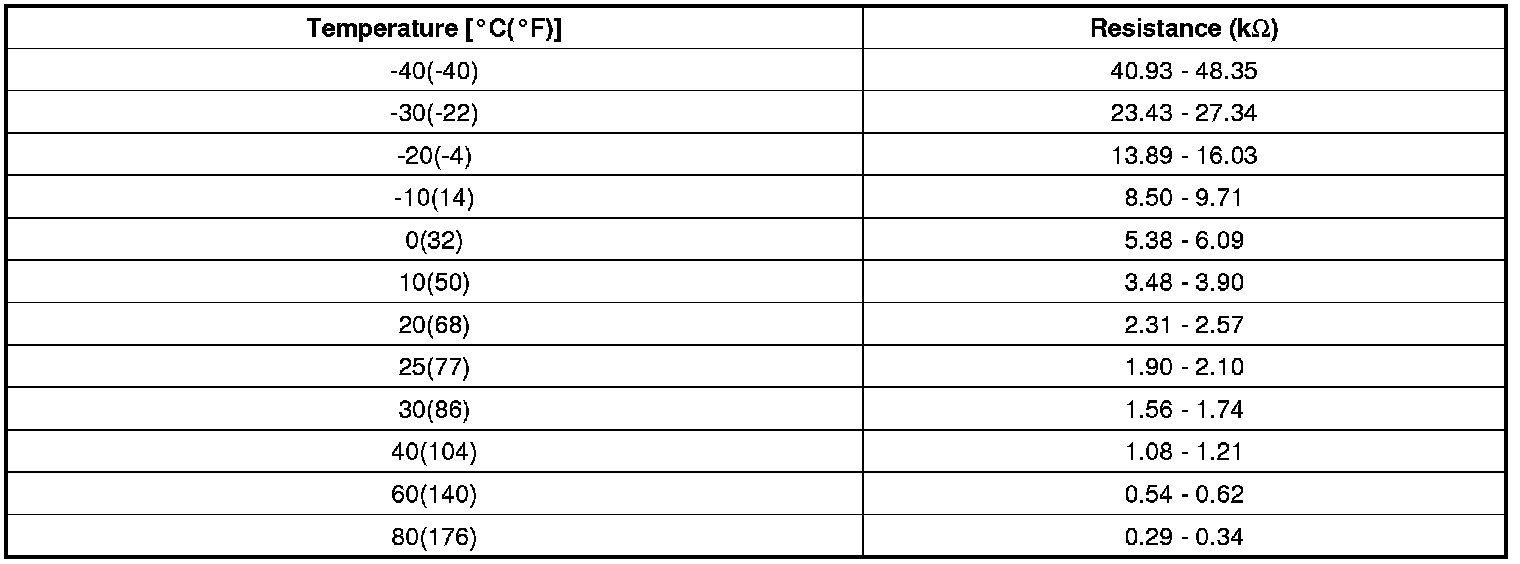

Engine Coolant Temperature Sensor (ECTS)
- Type: Thermistor type
- Specification

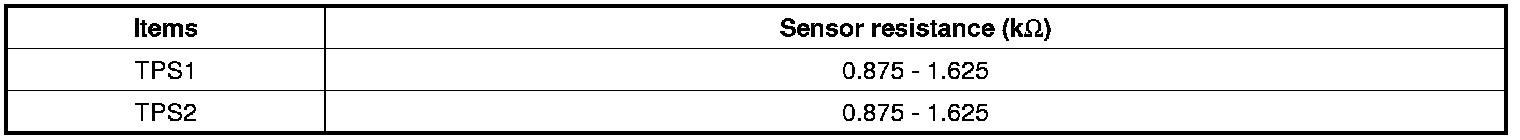

Throttle Position Sensor (TPS)
- Type: Variable resistor type
- Specification

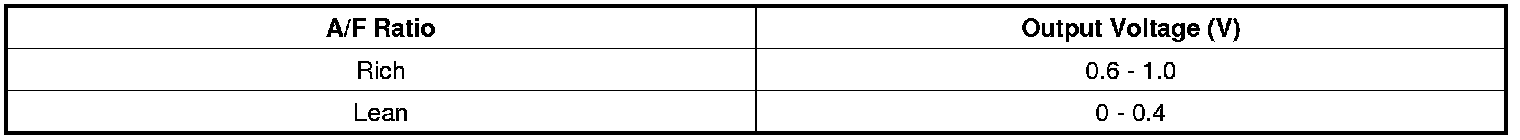

Heated Oxygen Sensor (HO2S) [Bank 1/ Sensor 1]
- Type: Zirconia (ZrO2) type
- Specification






Heated Oxygen Sensor (HO2S) [Bank 1/ Sensor 2]
- Type: Zirconia (ZrO2) type
- Specification











Camshaft Position Sensor (CMPS) #1 [Intake]
- Type: Hall effect type

Camshaft Position Sensor (CMPS) #2 [Exhaust]
- Type: Hall effect type

Crankshaft Position Sensor (CKPS)
- Type: Magnetic field sensitive type

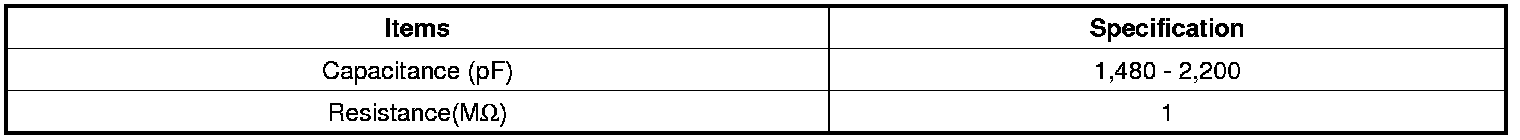

Knock Sensor (KS)
- Type: Piezo-electricity type
- Specification

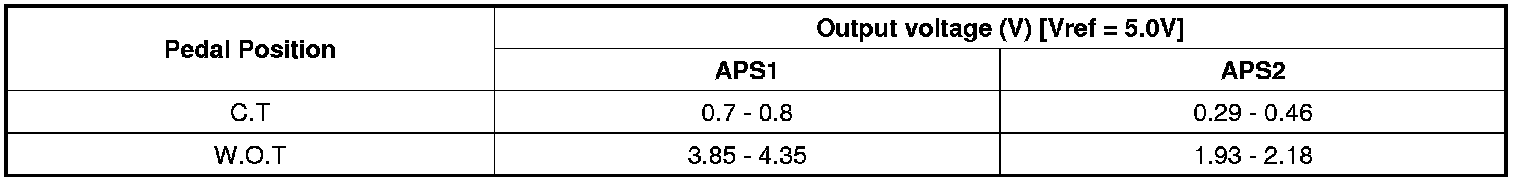

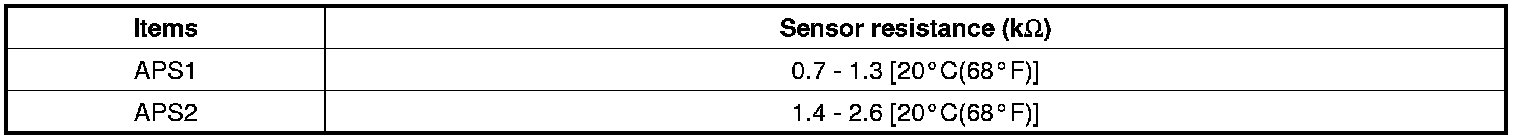

Accelerator Position Sensor (APS)
- Type: Variable resistor type
- Specification

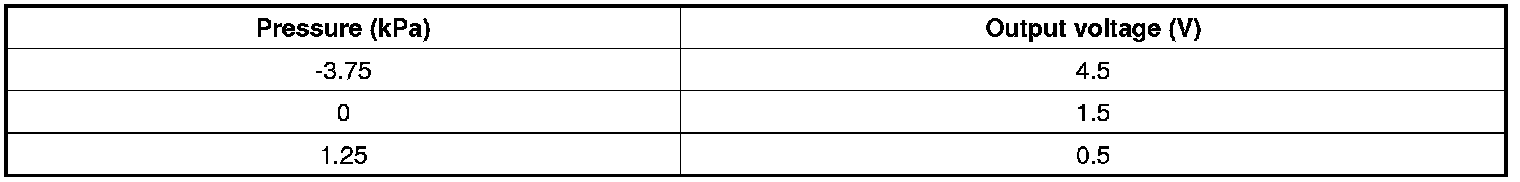

Fuel Tank Pressure Sensor (FTPS)
- Type: Piezo-resistive pressure sensor
- Specification






Actuators
Injector
- Number: 4
- Specification






Purge Control Solenoid Valve (PCSV)
- Specification






CVVT Oil Control Valve (OCV) #1 [Intake]
- Specification






CVVT Oil Control Valve (OCV) #2 [Exhaust]
- Specification






Ignition Coil
- Type: Stick type
- Specification






ETC Motor
- Specification






Canister Close Valve (CCV)
- Type: ON/OFF Control type
- Specification






Variable Intake Solenoid (VIS) Valve
- Specification






Variable Charge Motion Actuator (VCMA)
- Specification
[Motor]





[Position sensor]

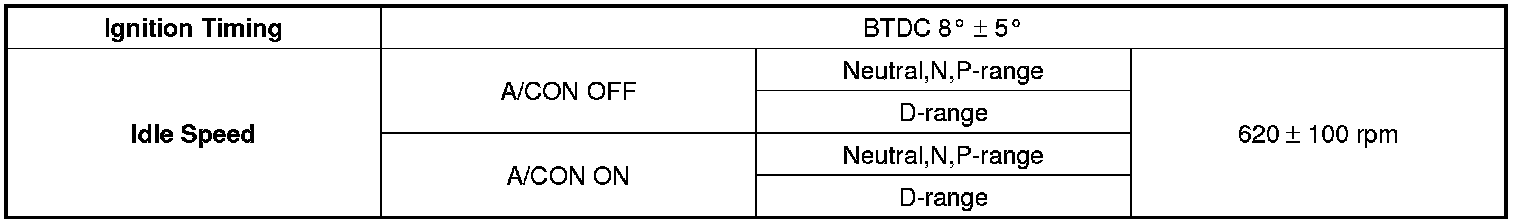

Service standard

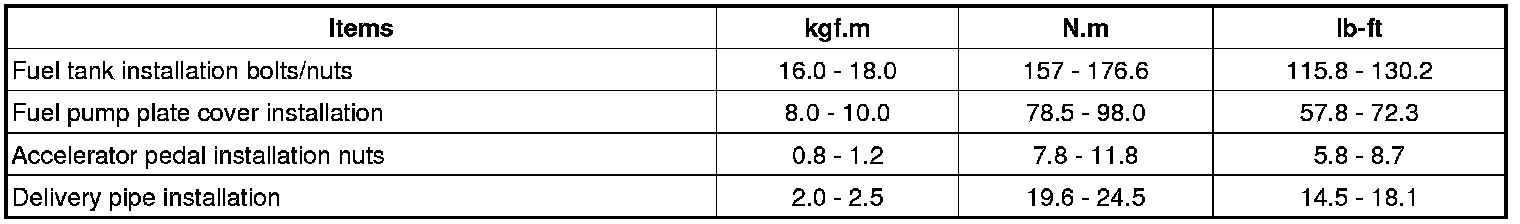

Tightening torques

Engine control system





Fuel delivery system
