Repair Procedures

REPLACEMENT

CAUTION:
When installing the belt, make sure not to damage the pretensioner.

1. Remove the following items fist.
A. Front seat assembly.
B. Door scuff trim.

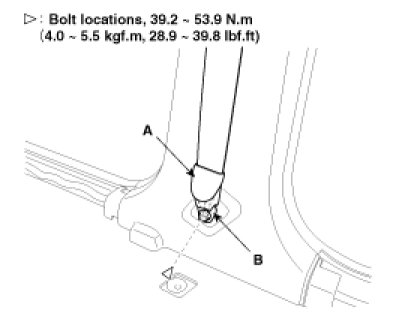

2. After raiseing the lower anchor cover (A), loosen the lower anchor mounting bolt (B).




3. Remove the center pillar lower trim.
4. Remove the center pillar upper trim.
5. Remove the upper anchor (A).

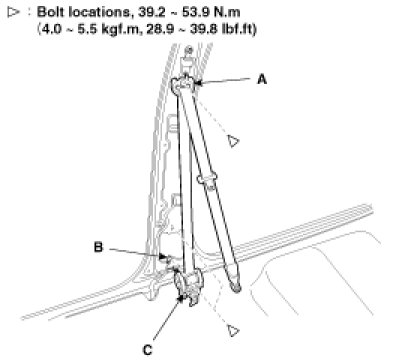

6. After disconnecting the pre-tensioner connector lock pin, remove the connector (B), Loosen the mounting bolt, then remove the pretensioner (C).




7. Installation is the reverse of removal.

SECONDARY SEAT BELT REPLACEMENT

CAUTION:
When installing the belt, make sure not to damaged the pretensioner.

1. Remove the following items first.
A. Rear seat assembly.
B. Rear door scuff trim.

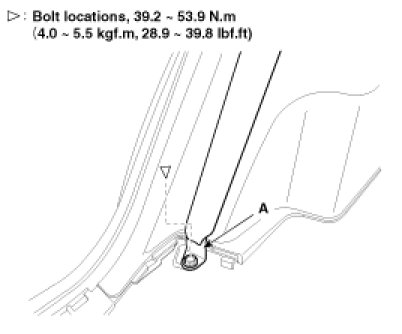

2. Remove the lower anchor (A).




3. Remove the luggage side trim.
4. Remove the gate pillar trim.

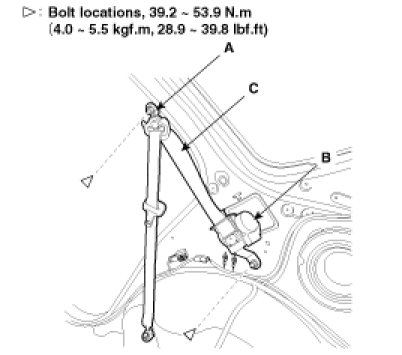

5. Remove the upper anchor (A).

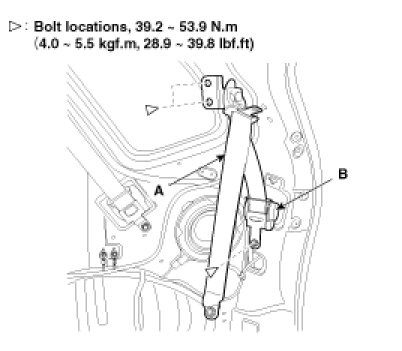

6. After loosening the retractor (B) mounting bolt, then remove the rear seat belt (C).




7. Installation is the reverse of removal.

THIRD SEAT BELT REPLACEMENT

CAUTION:
When installing the belt, make sure not to damaged the pretensioner.

1. Remove the following items first.
A. Third seat assembly.
B. Rear door scuff trim.
C. Transverse trim.
2. Remove the lower anchor (A).




3. Remove the luggage side trim.
4. After loosening the retractor (B) mounting bolt,remove the rear seat belt.




5. Installation is the reverse of removal.

FRONT SEAT BELT BUCKLE REPLACEMENT
1. Remove the front seat assembly.
2. Remove the wire harness of buckle from seat.

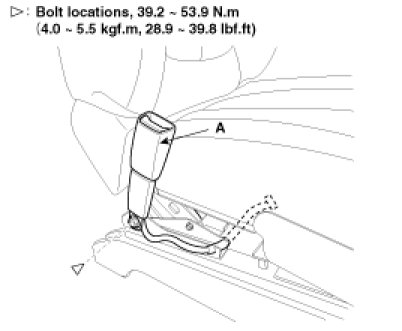

3. Remove the seat belt buckle (A).




4. Installation is the reverse of removal.

SECONDARY SEAT BELT BUCKLE REPLACEMENT
1. Remove the secondary seat assembly
2. Remove the secondary seat cushion.

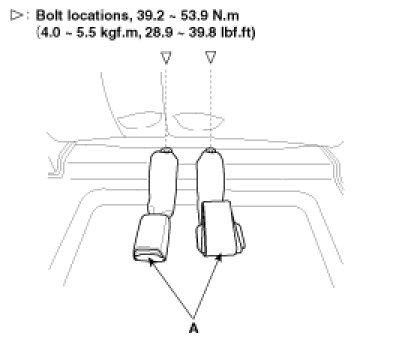

3. Remove the seat belt buckle (A).

HEIGHT ADJUSTER REPLACEMENT
1. Remove the following items first.
A. Front seat assembly.
B. Door scuff trim.
C. Front seat belt.
D. Center pillar trim.

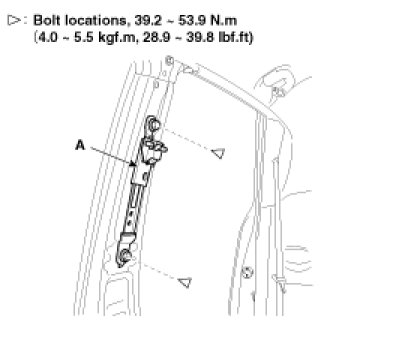

2. After loosening the mounting bolt, then remove the height adjuster (A).




3. Installation is the reverse of removal.
