Rondo (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relays and Modules - Power and Ground Distribution
>>
Relay Box
>>
Application and ID
Relay Box: Application and ID

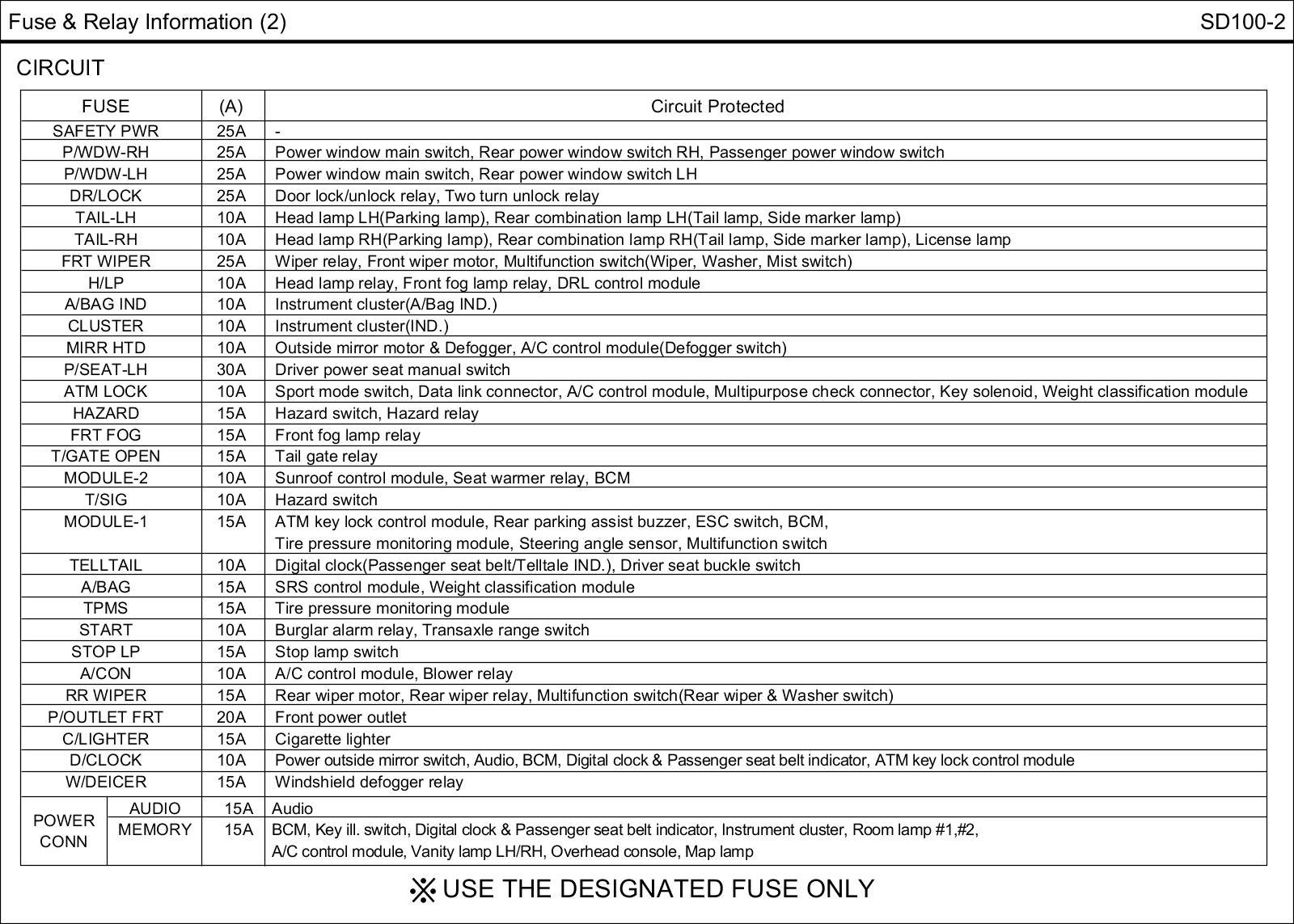

Fuse & Relay Information

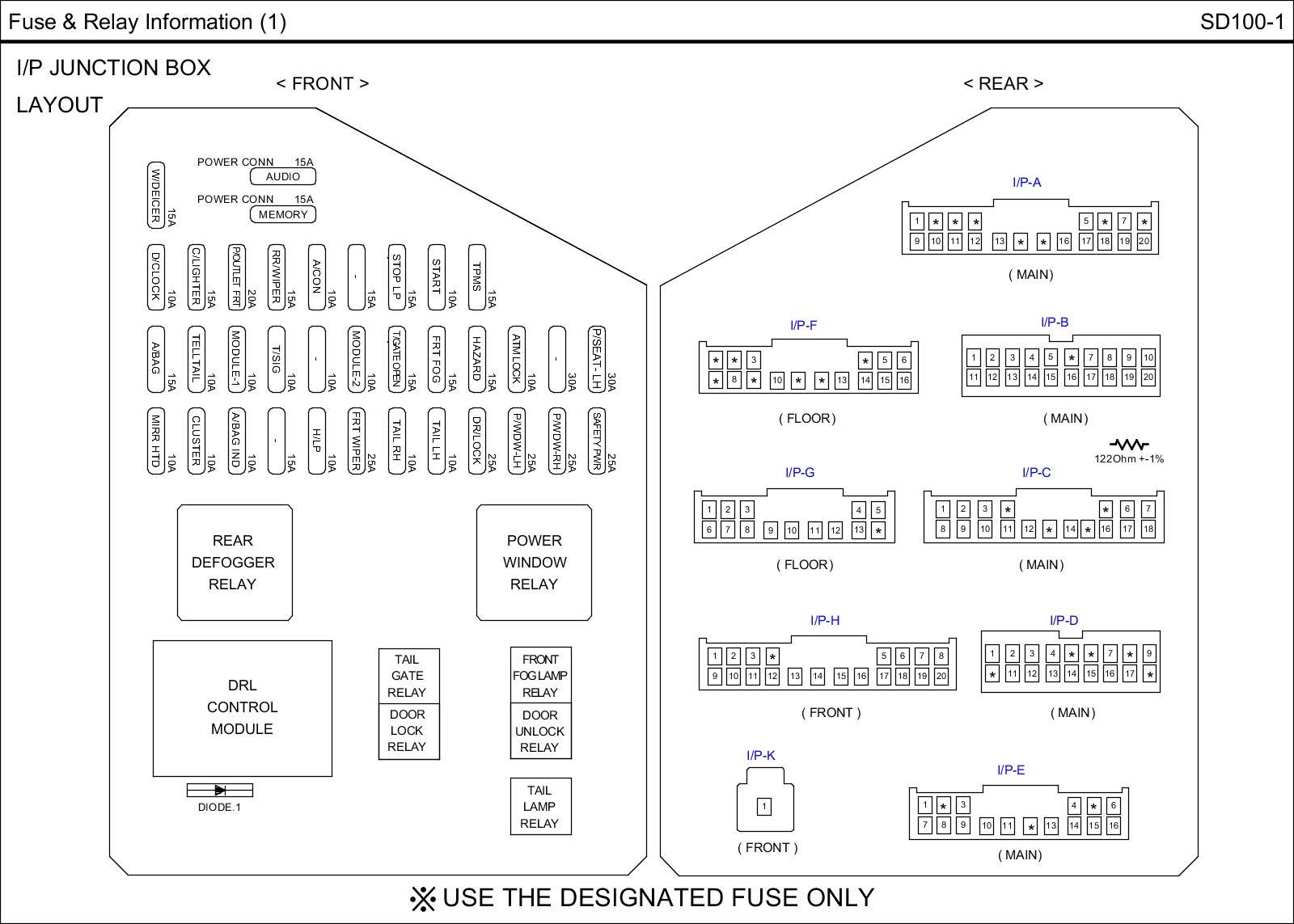

I/P Junction Box View:
I/P Junction Box Circuit Details:
E/R Junction Box View:
E/R Junction Box Circuit Details:

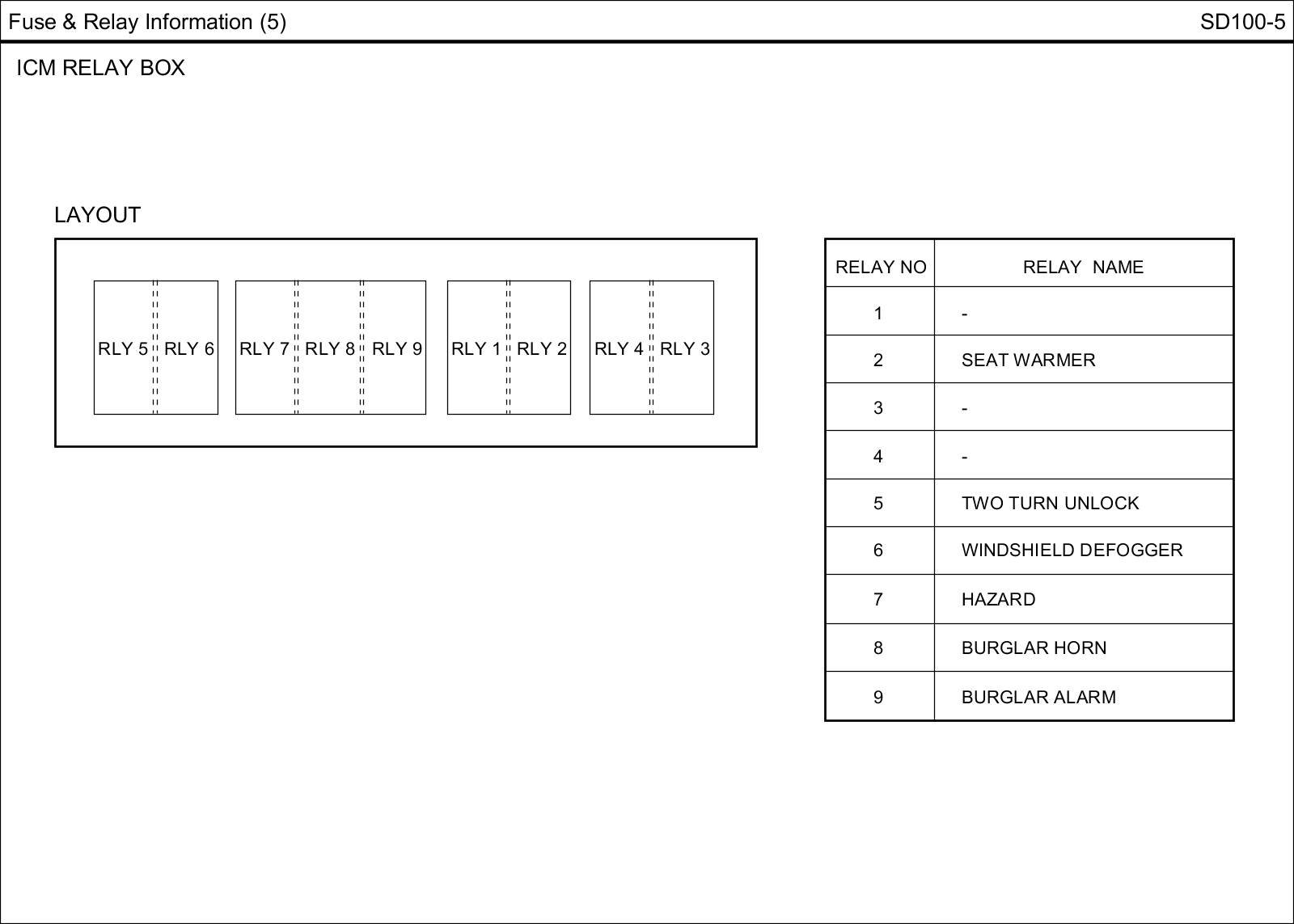

ICM Realy Box View:
