Repair Procedures

REMOVAL

1. Remove the front bumper. .

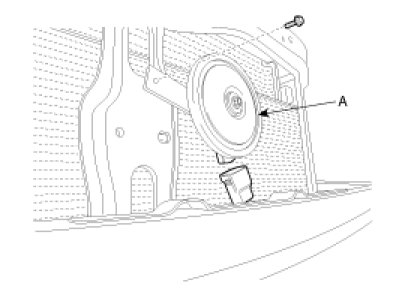

2. Remove the bolt and disconnect the horn connector, then remove the and low pitch horn (A).






INSTALLATION

1. Install the horn after connecting the horn connector.
2. Install the front bumper.
.

INSPECTION

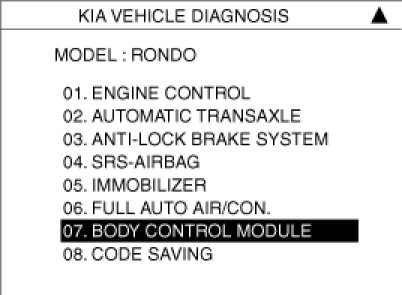

1. If diagnosis is required on the "Horn switch", select "RONDO" and "BCM".

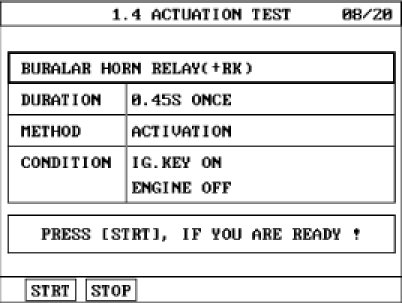

2. Select "Actuation Test" and check the input/output condition.










ADJUSTMENT

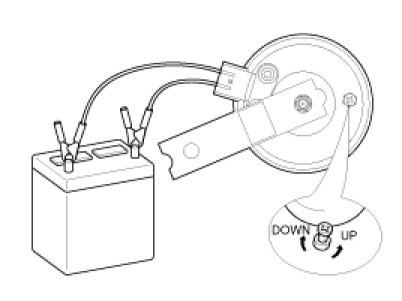

1. Operate the horn, and adjust the tone to a suitable level by turning the adjusting screw.

NOTE:
After adjustment, apply a small amount of paint around the screw head to keep it from loosening.





INSPECTION

1. If diagnosis is required on the "Horn switch", select "RONDO" and "BCM".




2. Select "Actuation Test" and check the input/output condition.
