Dome Lamp: Service and Repair

REMOVAL

1. Disconnect the negative (-) battery terminal.

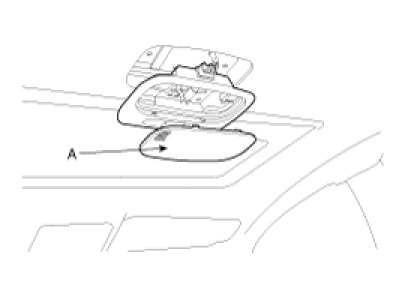

2. Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver then replace the bulb.

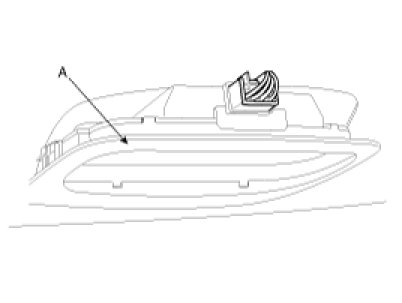

3. Remove the room lamp assembly after removing 2 screws and disconnecting the 4P connector (Standard type).






INSTALLATION

1. Install the room lamp assembly after connecting the lamp connector.
2. Install the lamp lens after assembling the bulb.

INSPECTION

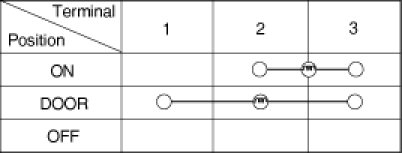

Remove the room lamp assembly then check for continuity between terminals.
