Repair Procedures

Removal

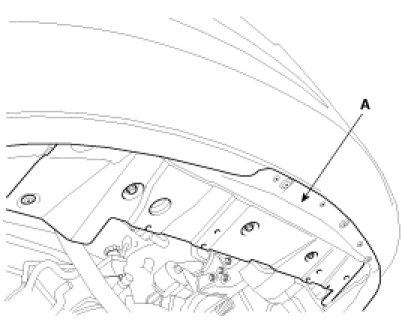

1. Remove the under cover (A).

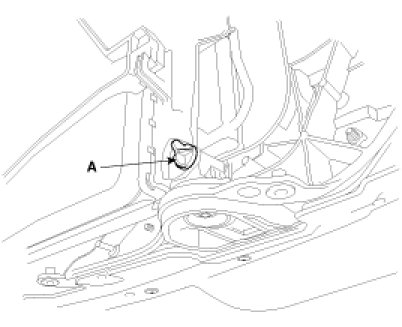

2. Loosen the engine coolant drain plug (A) for draining.

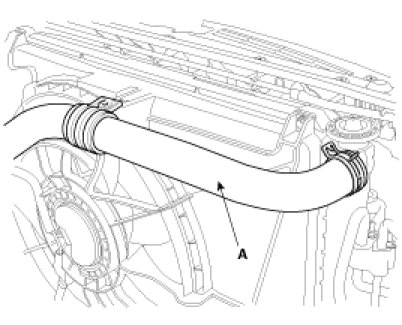

3. Remove the air duct (A).

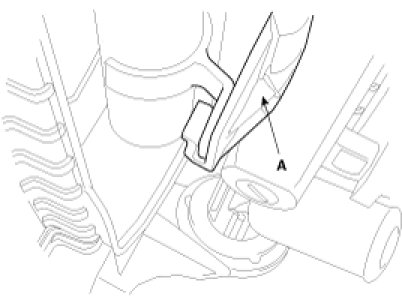

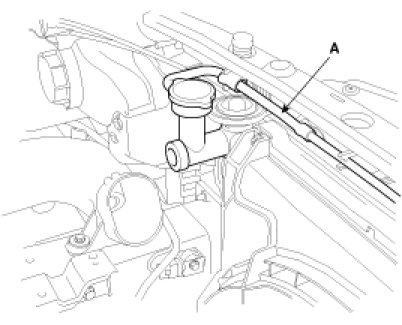

4. Disconnect the reservoir hose (A).

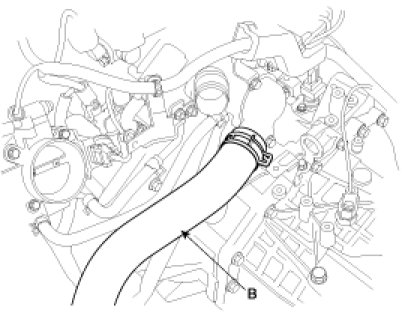

5. Disconnect the radiator upper hose (A) and the lower hose (B).

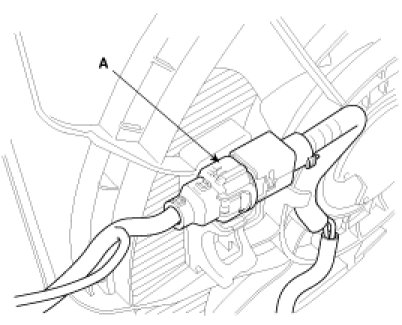

6. Disconnect the cooling fan motor connector (A).

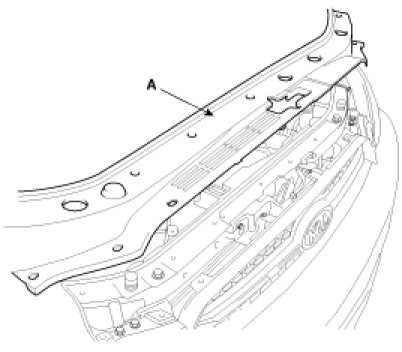

7. Remove the radiator grill upper cover (A).

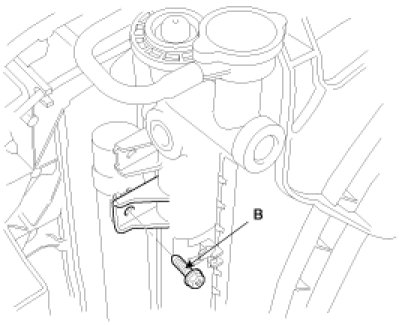

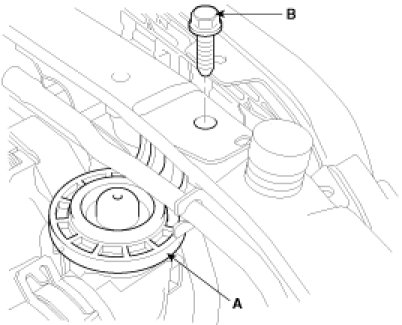

8. Remove the radiator brackets (A) and mounting bolts (B).








9. Push down the radiator assembly and pull it up for removal because there is a clip (A) shown as below.






Inspection

Radiator Cap Testing
1. Remove the radiator cap, wet its seal with engine coolant, then install it on pressure tester.




2. Apply a pressure of 93 - 123kPa (0.95 - 1.25kgf/cm2, 14 - 19psi).
3. Check for a drop in pressure.
4. If the pressure drops, replace the cap.

Radiator Leakage Testing
1. Wait until engine is cool, then carefully remove the radiator cap and fill the radiator with engine coolant, then install it on the pressure tester.




2. Apply a pressure tester to the radiator and apply a pressure of 93 - 123kPa (0.95 - 1.25kgf/cm2 14 - 18psi).
3. Inspect for engine coolant leaks and a drop in pressure.
4. Remove the tester and reinstall the radiator cap.

NOTE:
Check for engine oil in the coolant and/or coolant in the engine oil.

Installation

1. Install the radiator assembly with the condenser.
2. Install the radiator brackets (A) by mounting bolts (B).








3. Install the radiator grill upper cover (A).




4. Connect the cooling fan motor connector (A).




5. Connect the radiator upper hose (A) and the lower hose (B).








6. Connect the reservoir hose (A).




7. Install the air duct (A).




8. Tighten the engine coolant drain plug (A) and refill engine coolant.




9. Install the under cover (A).
