Engine Control Module





Powertrain control module (PCM)

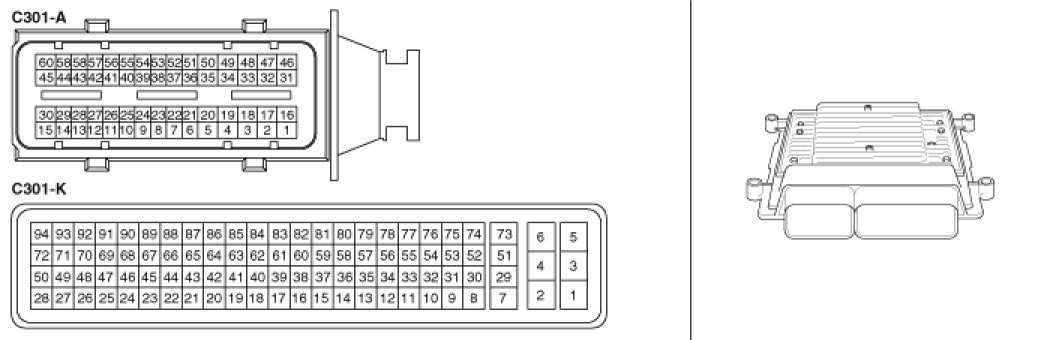

1. PCM harness connector

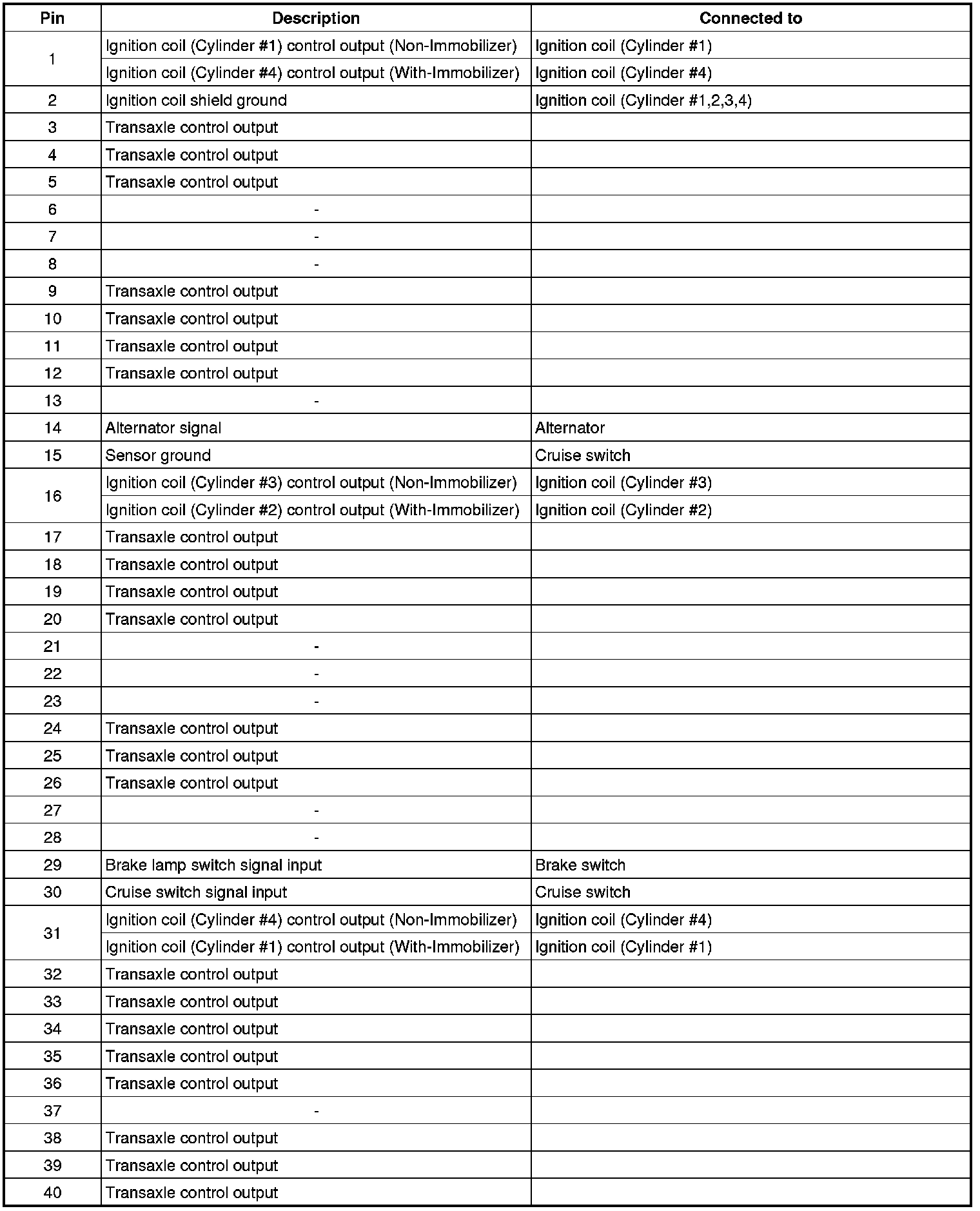

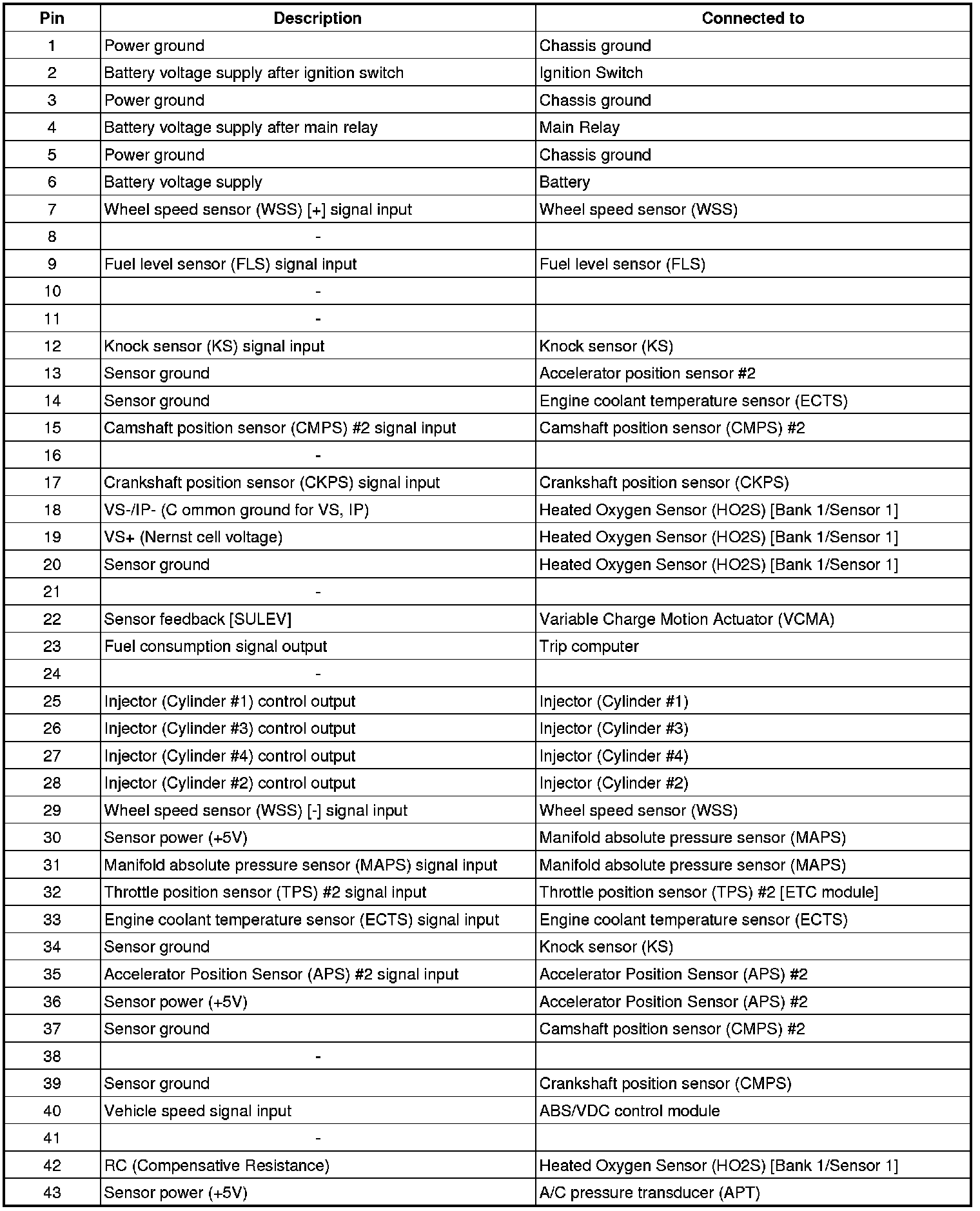

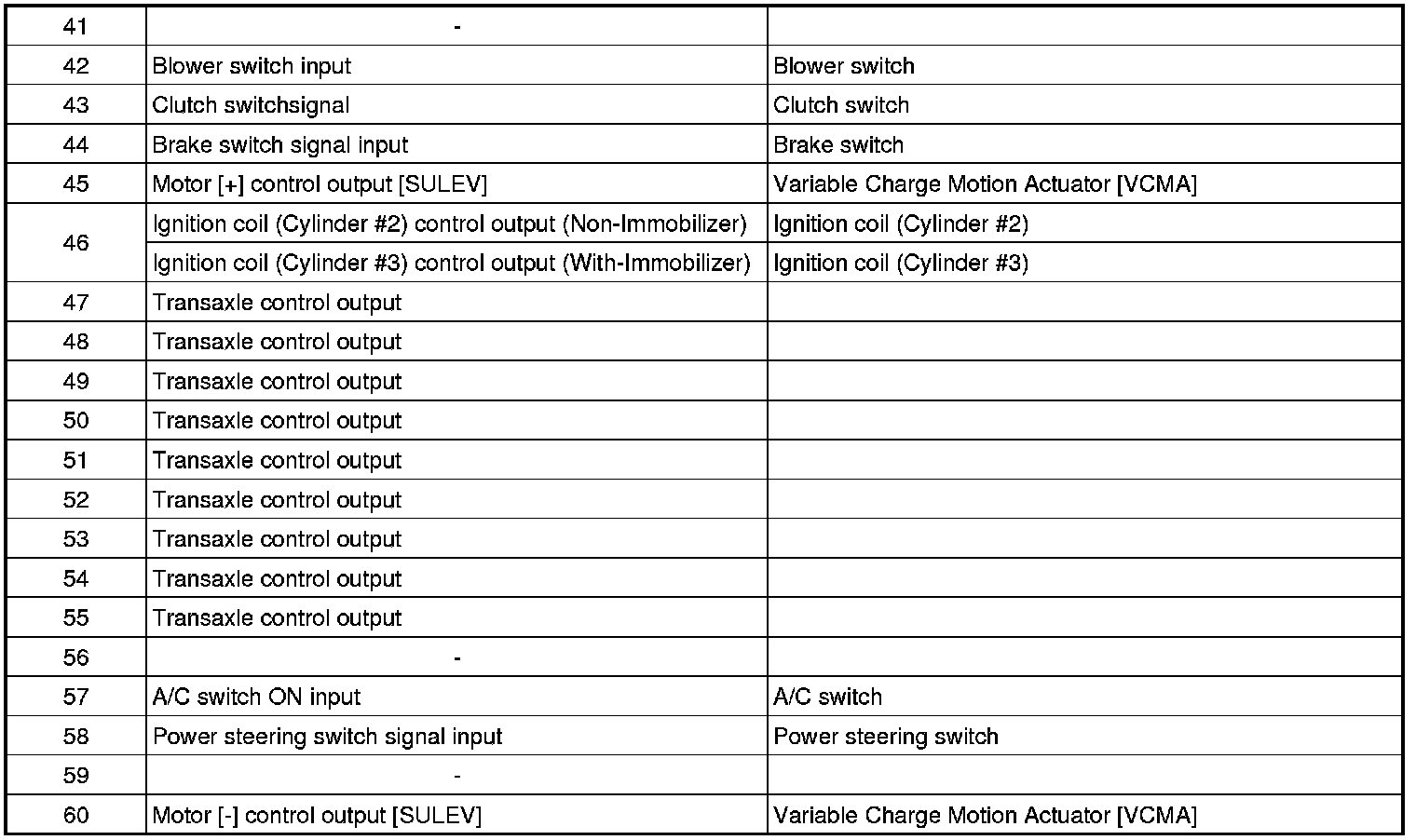

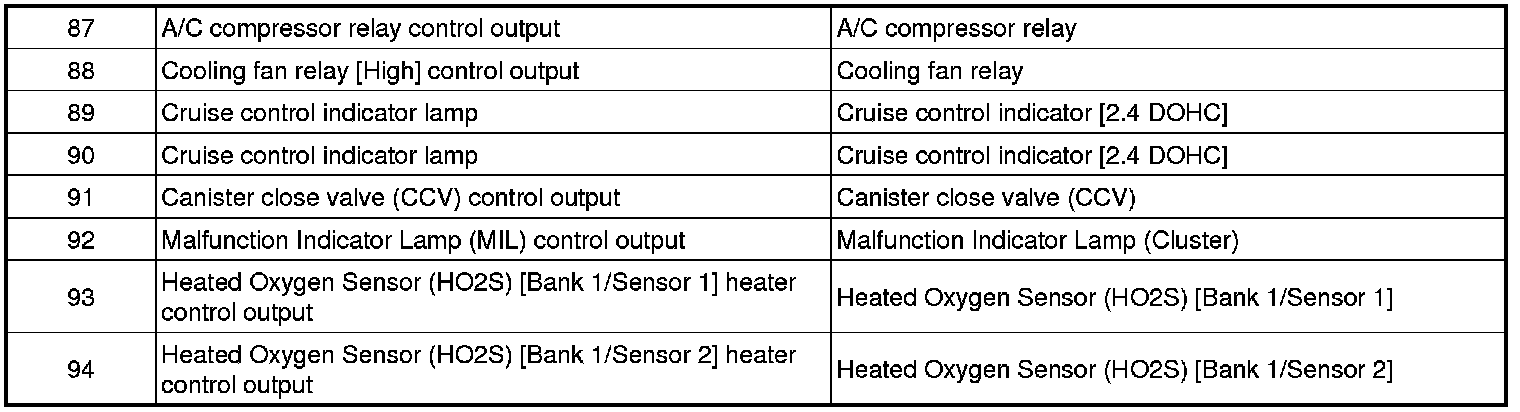

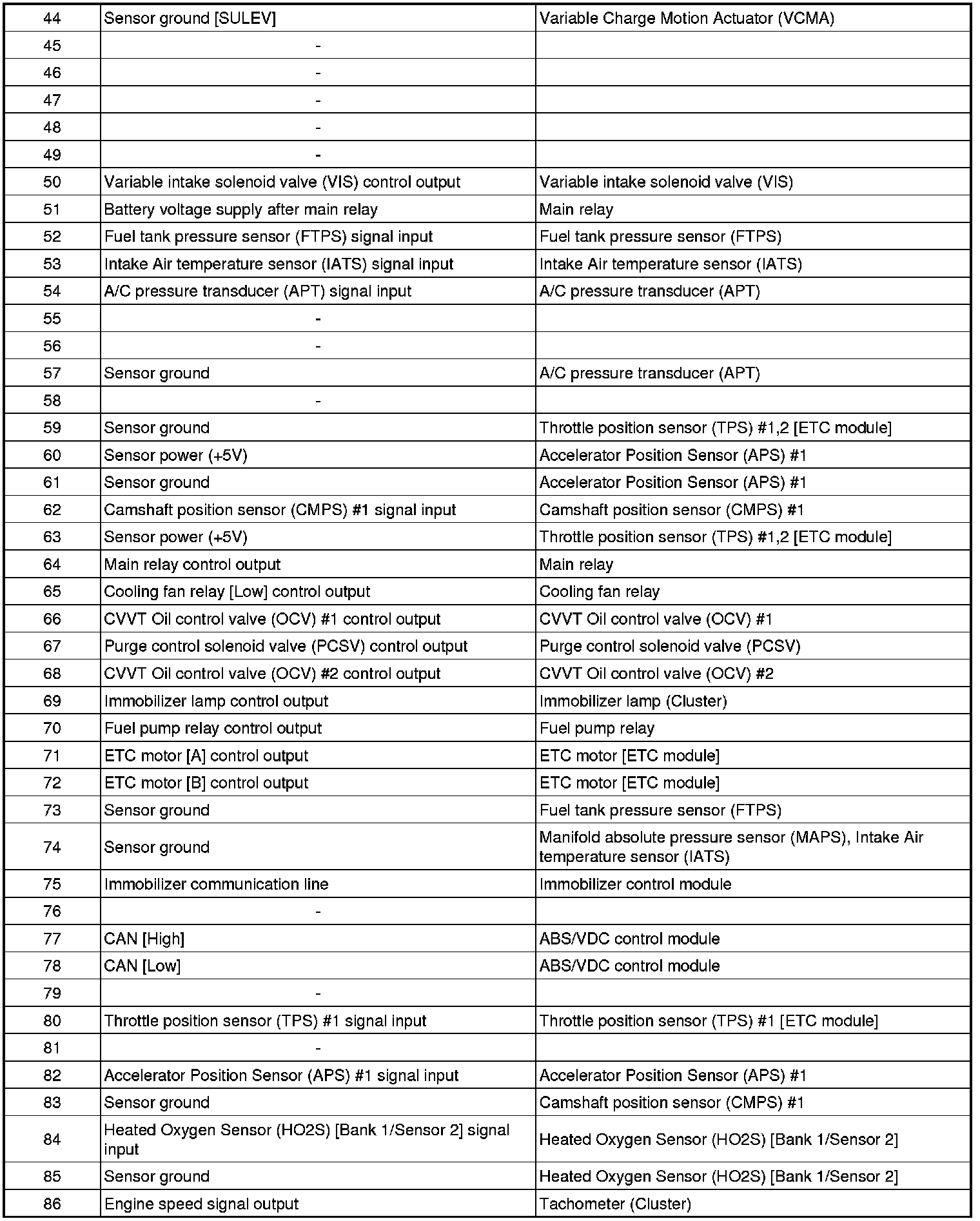

2. PCM terminal function
Connector [C301-K]













Connector [C301-A]

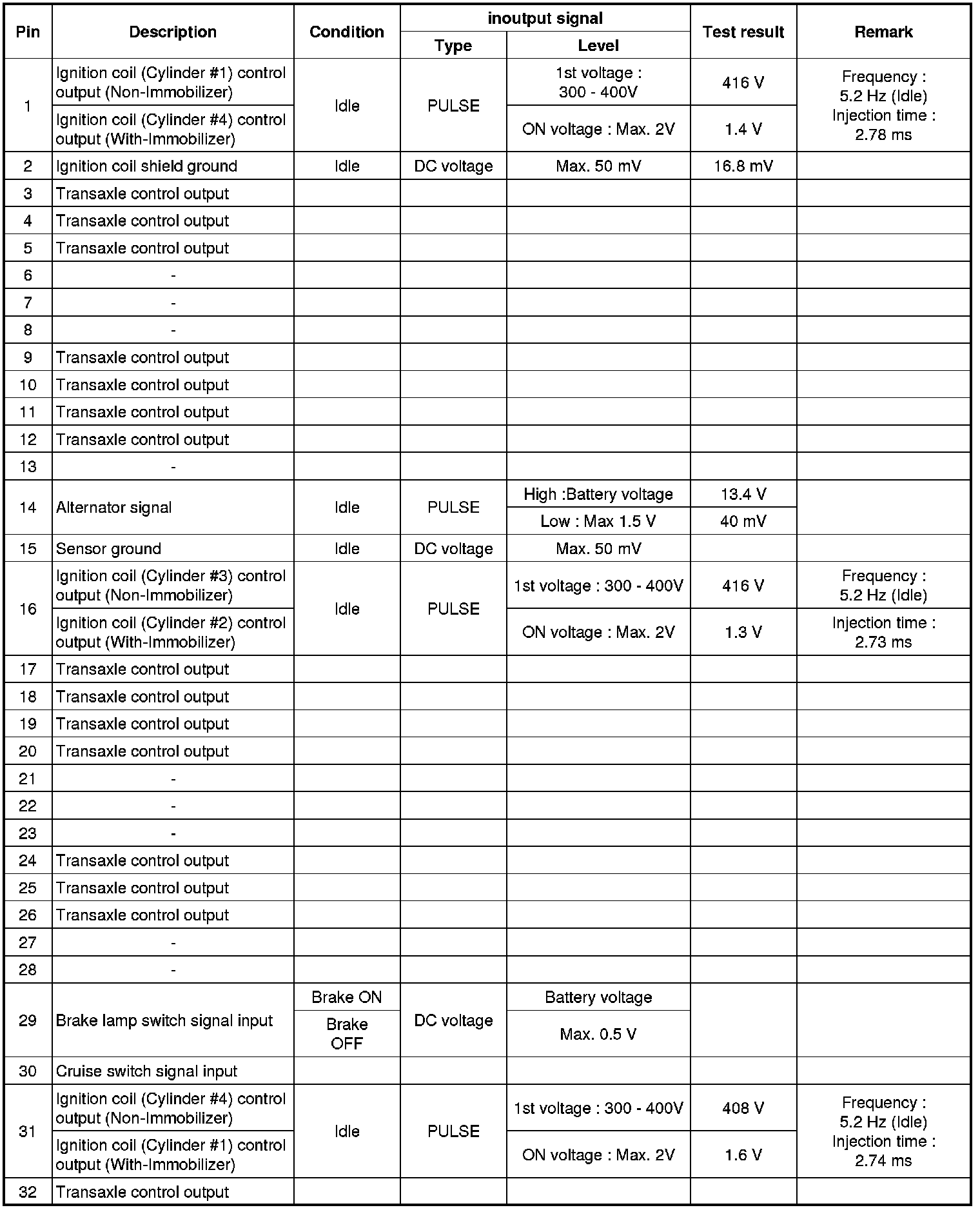

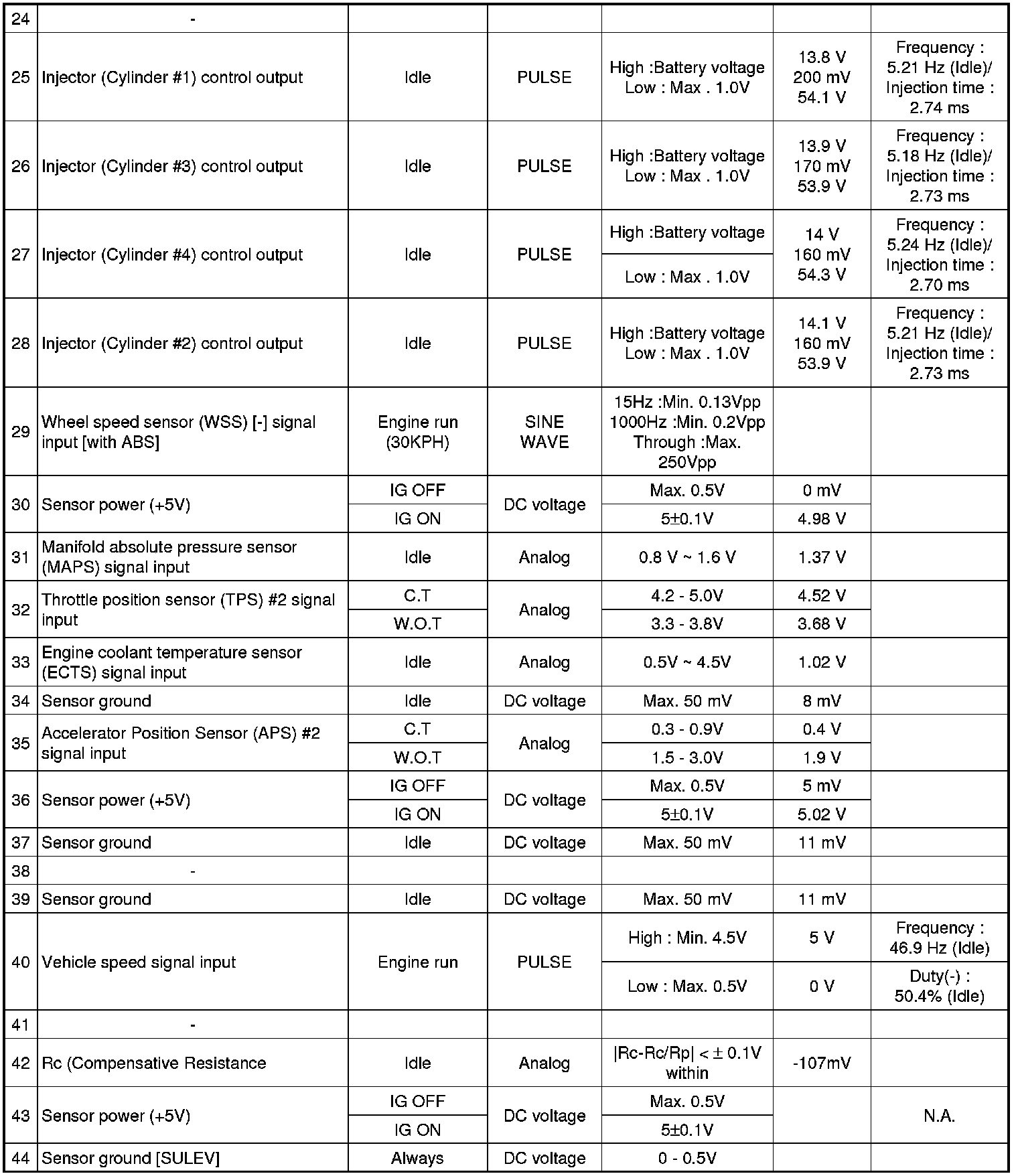

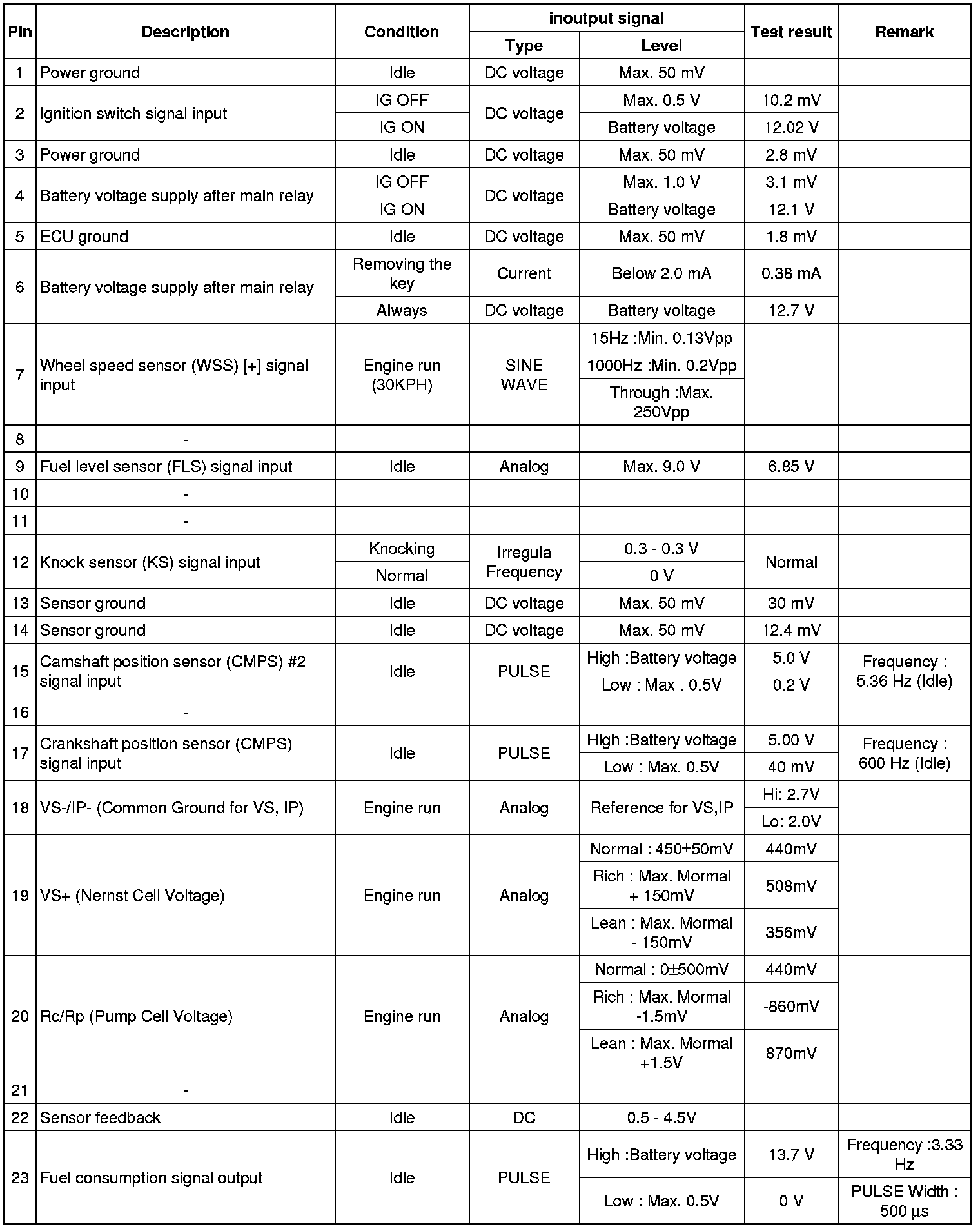

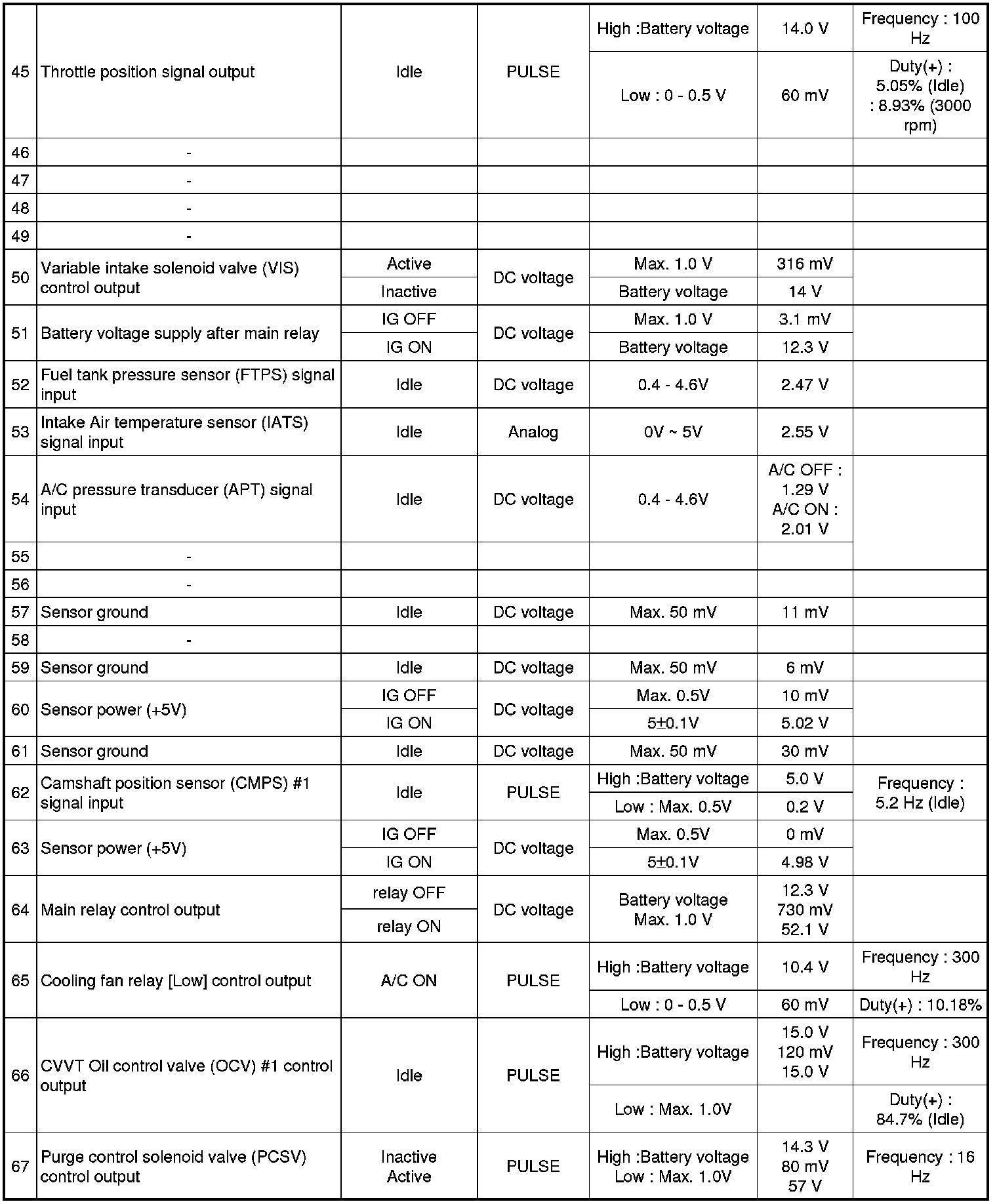

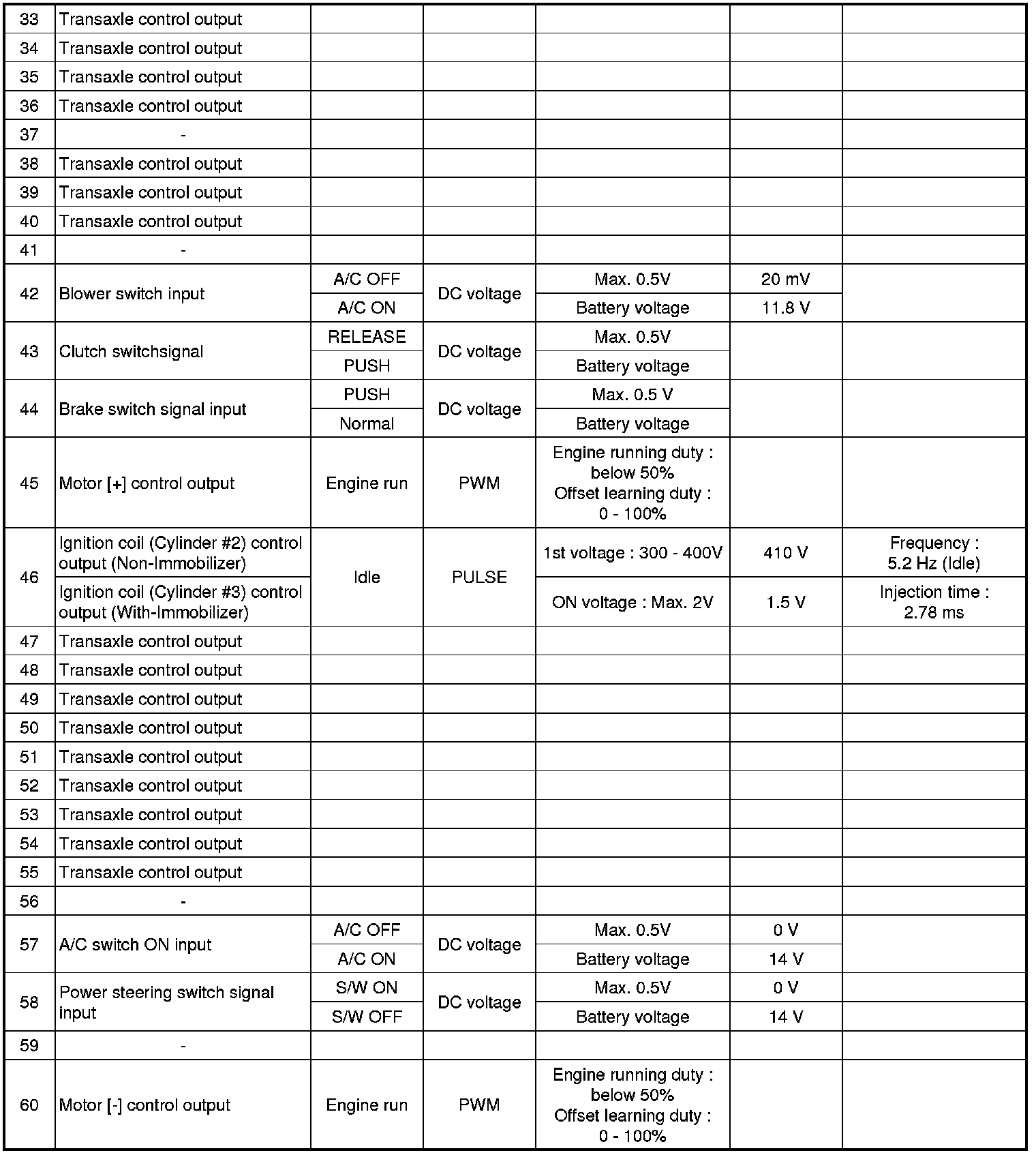

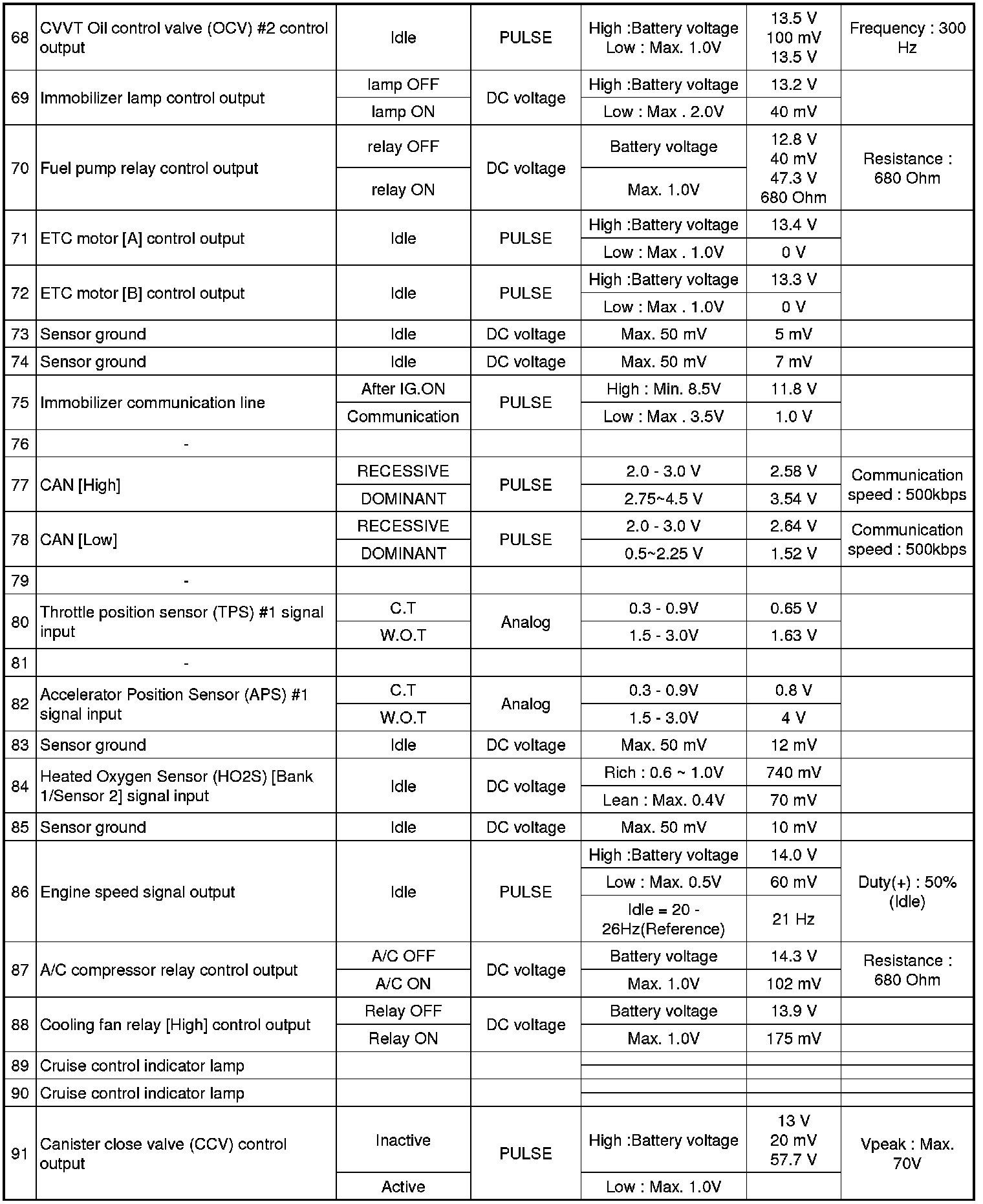

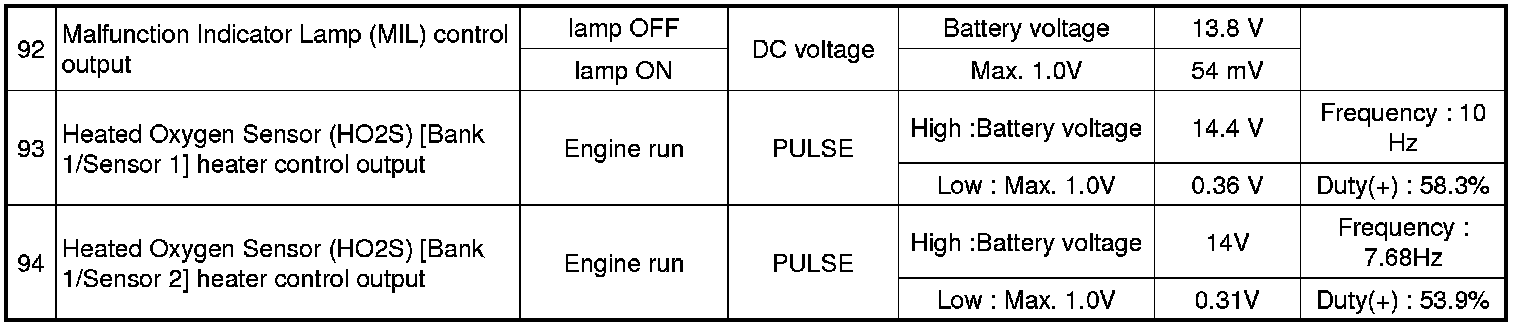

3. Input / output signal
Connector [C301-K]





















Connector [C301-A]

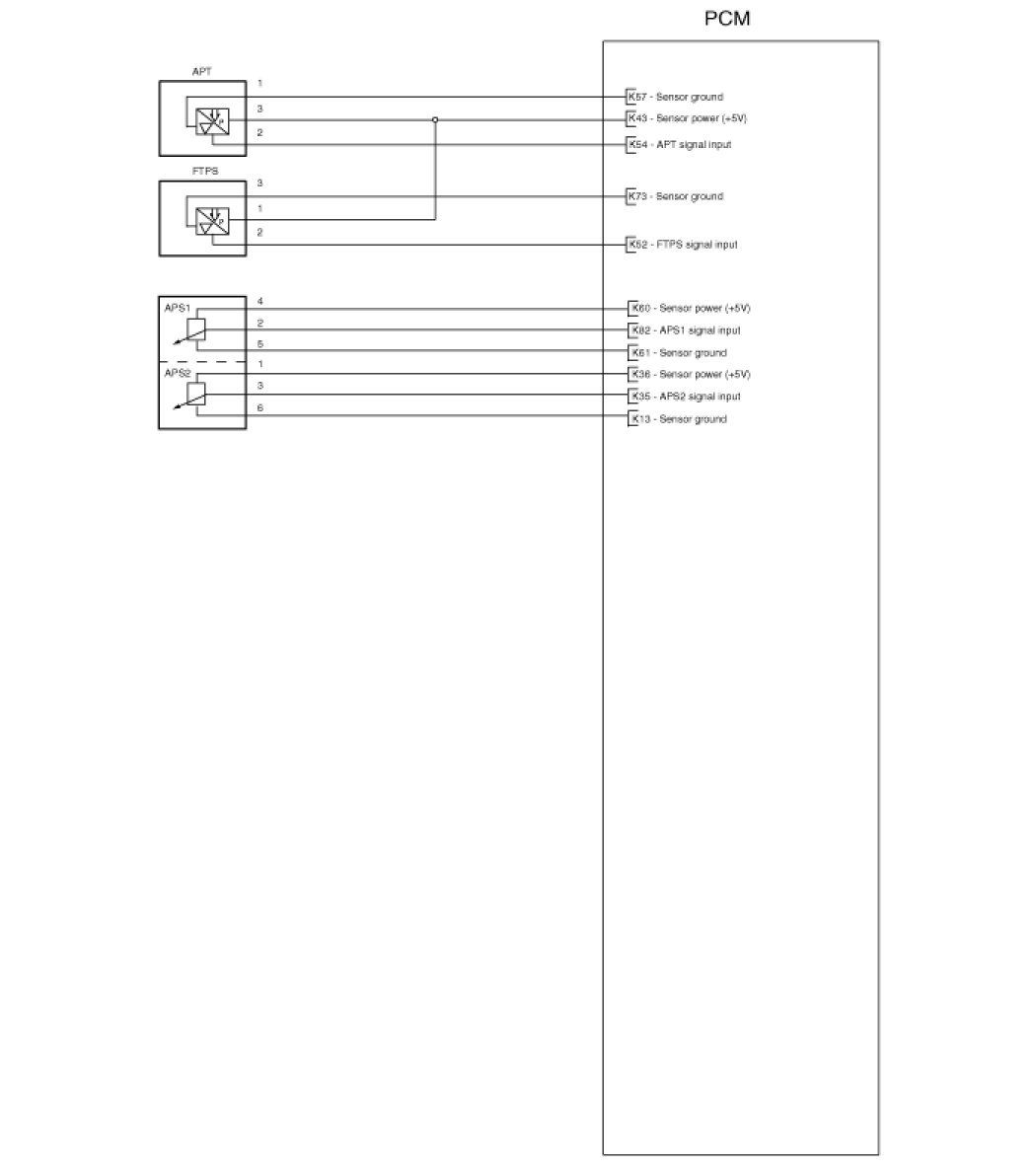

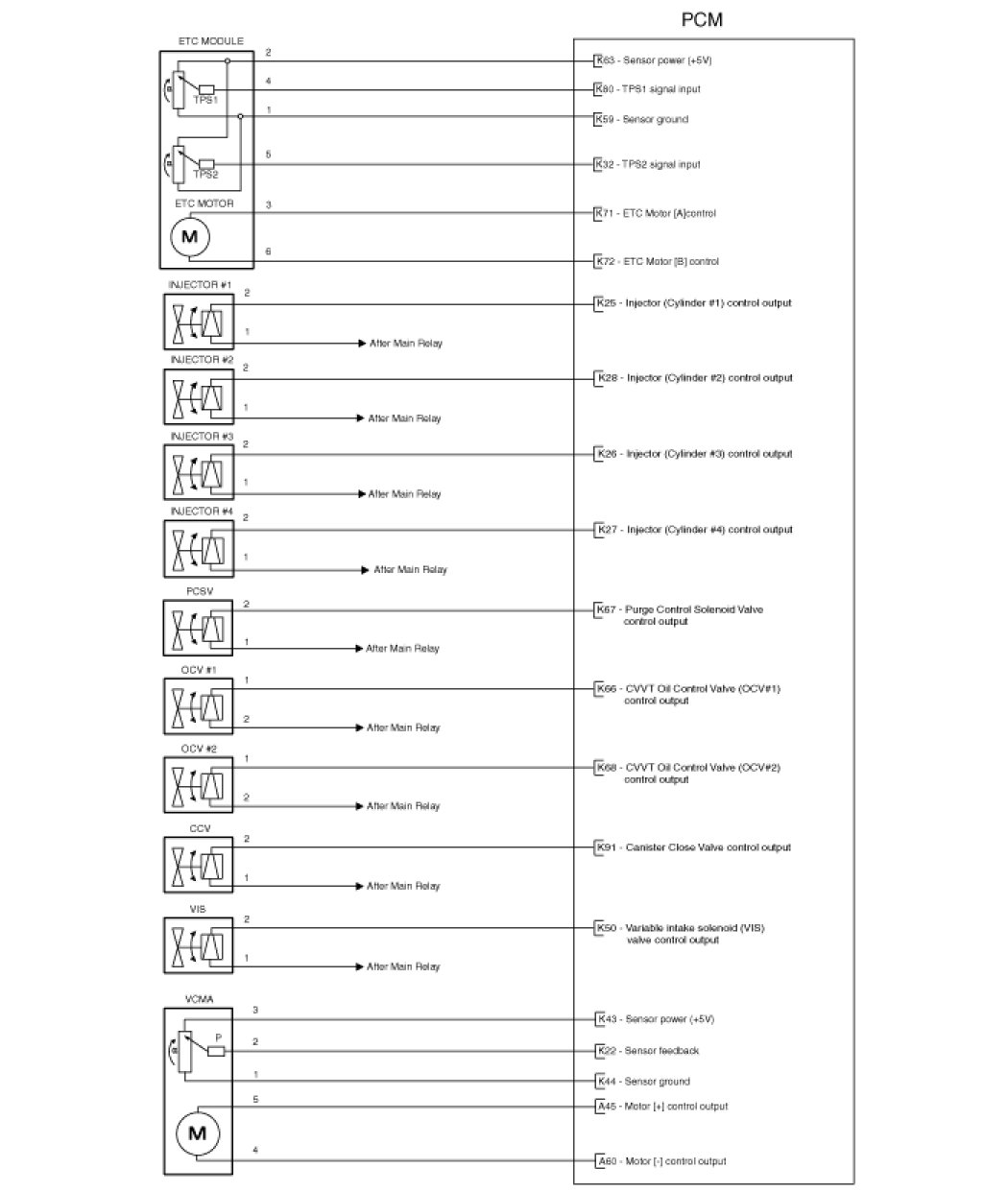

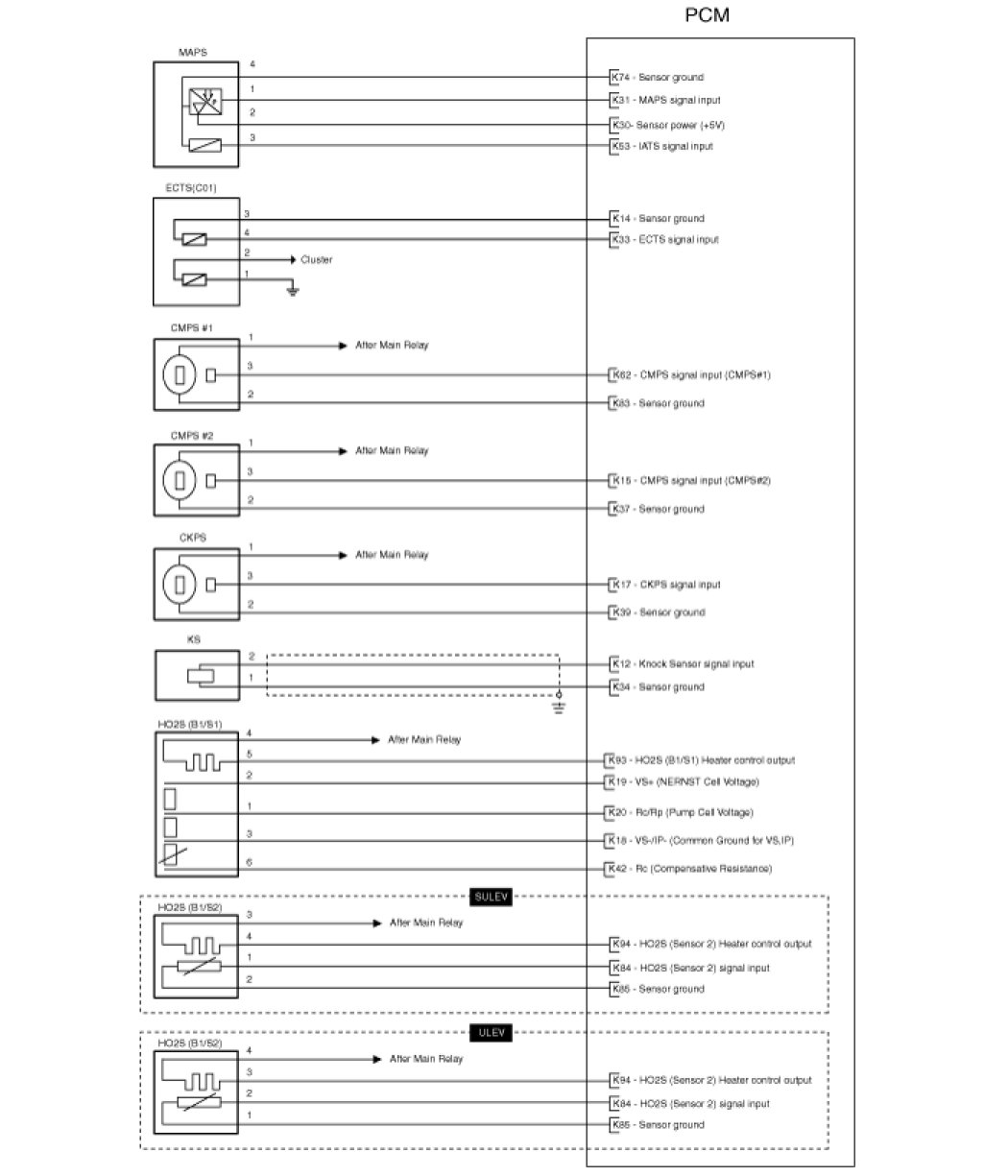

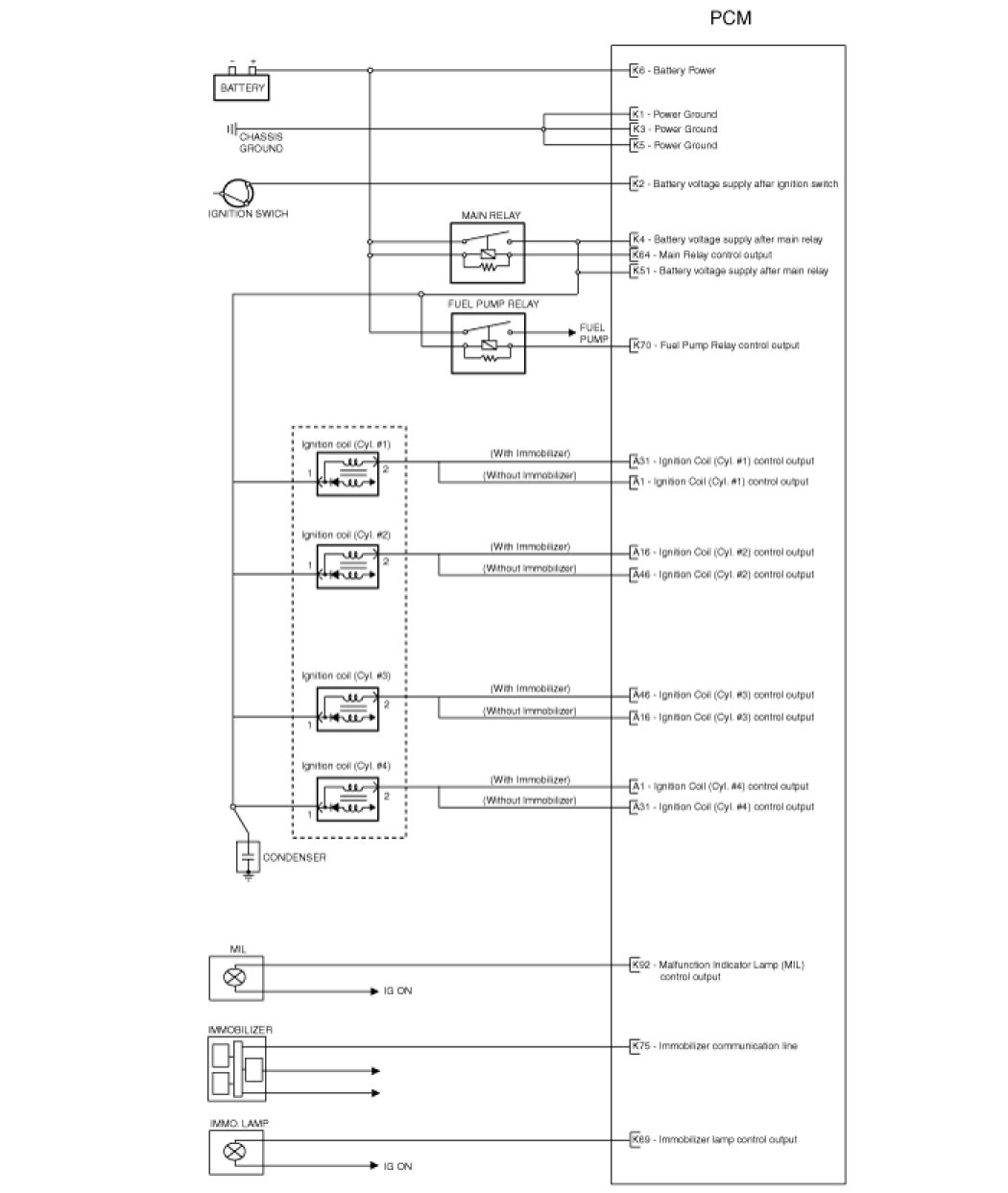

Circuit diagram
