Electro Chromic Inside Rear View Mirror

INSPECTION

Check it by the procedure below to see if the function of the ECM is normal.
1. Turn the ignition key to the "ON" position.
2. Cover the forward facing sensor.
3. Head a light to the rearward looking sensor.
4. The ECM should be darkened as soon as the rearward looking sensor detects the light.

NOTE:
If this test is performed in daytime, the ECM may be darkened as soon as the forward facing sensor is covered.

5. When the reverse gear is engaged, the ECM should not be darkened.
When heading lights to both the forward facing and rearward looking sensors, the ECM should not be darkened.

REMOVAL

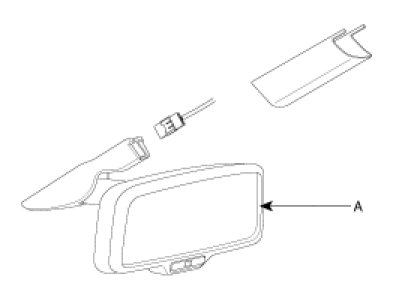

1. Push the inside rear view mirror base down to remove the inside rear view mirror assembly (A) after removing the mirror wire cover.






INSTALLATION

1. Install the mirror assembly and mirror cover.
