Repair Procedures

REPLACEMENT

SUNVISOR REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

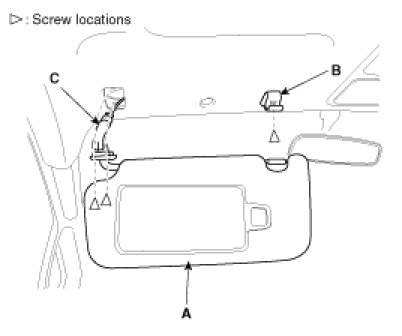

1. Remove the sunvisor (A) and retainer (B) from each side.
2. Disconnect the connector (C).




3. Installation is the reverse of removal.

ASSIST HANDLE REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

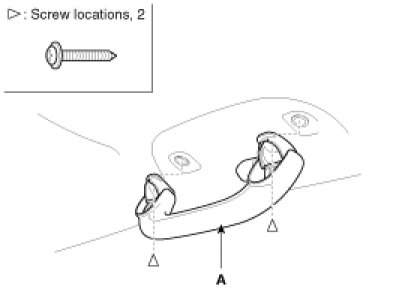

1. Remove the covers, and remove the screws, then remove the assist handle (A).




2. Installation is the reverse of removal.

OVERHEAD CONSOLE LAMP REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

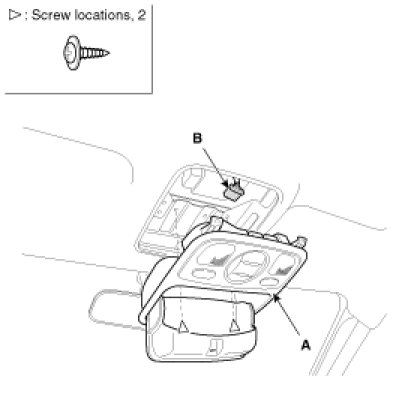

1. Remove the overhead console
A. Remove the screw.
B. Pull out the roof console (A).
C. Disconnect the connector (B).




2. Installation is the reverse of removal.

ROOM LAMP REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

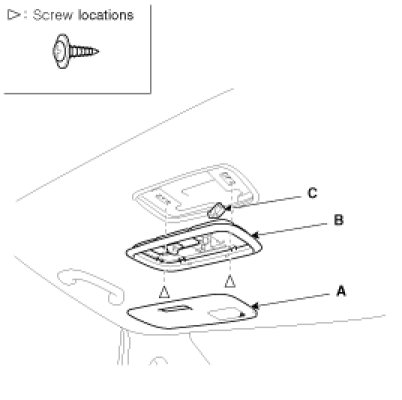

1. Remove the room lamp.
A. Remove the lens (A).
B. Remove the screws.
C. Pull out the room lamp (B).
D. Disconnect the connector (C).




2. Installation is the reverse of removal.

HEADLINER REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items.
A. Front seat, rear seat assembly.
B. Door scuff trim.
C. Front pillar trim.
D. Center pillar trim.
E. Rear pillar trim.
F. Overhead console.
G. Room lamp.
H. Sunvisor.
I. Assist handle

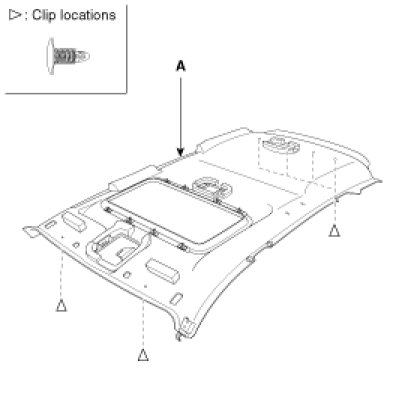

2. Remove the roof trim (A).




3. Installation is the reverse of removal.

NOTE:
Replace any damage clips.
