Repair Procedures

REPLACEMENT

NOTE:
- When prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Take care not to scratch the crash pad and related parts.

1. Tilt the steering column down.

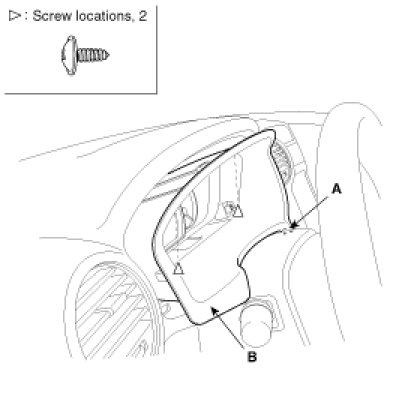

2. After disconnecting the trip sensor connector (A), remove the cluster facia panel (B).

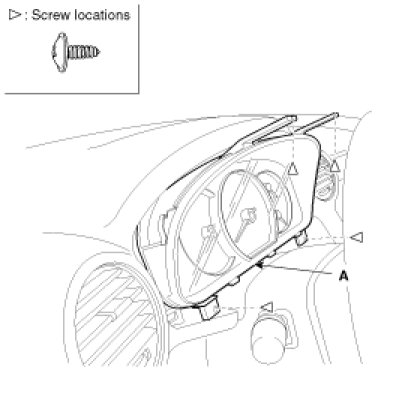

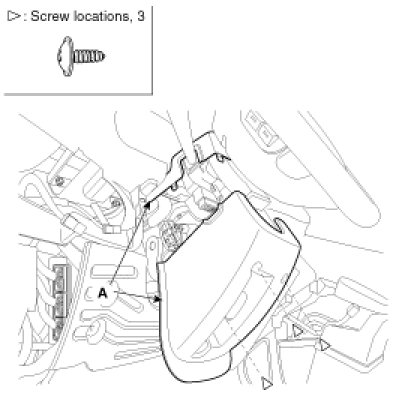

3. After loosening the mounting screws, then remove the cluster facia (A).




4. Installation is the reverse the removal.

NOTE:
Make sure the connector is plugged in properly.

CENTER FACIA PANEL REPLACEMENT

NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.

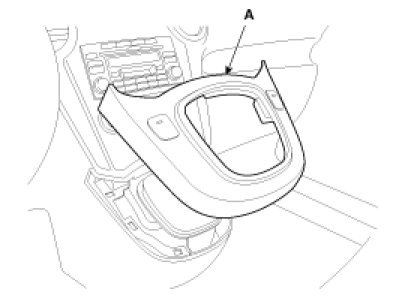

1. Remove the front console upper cover (A).

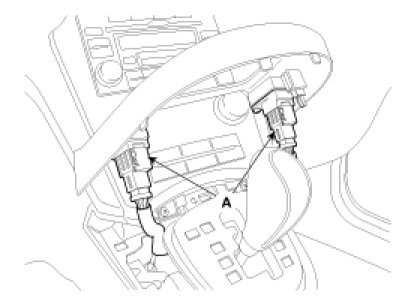

2. Disconnect the connector (A).

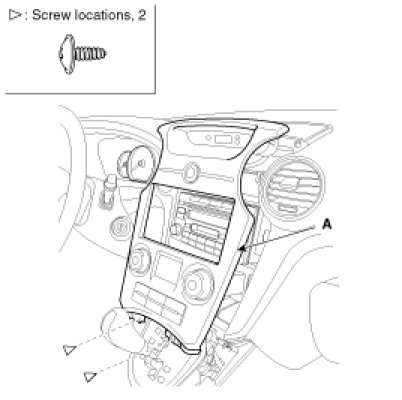

3. After loosening the mounting screw, then remove the fascia panel (A).




4. Installation is the reverse of removal.

LOWER PANEL REPLACEMENT

NOTE:
- Take care not to scratch the crash pad and related parts.

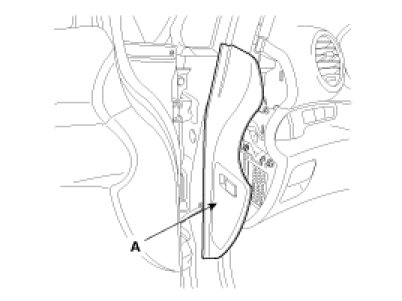

1. Remove the crash pad side cover (A).




2. After loosening the crash pad lower panel mounting screw, then remove the lower panel (A).
3. Disconnecting the connector (B).

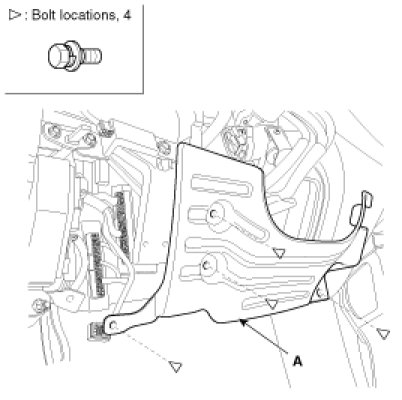

4. After loosening the mounting bolts, then remove the reinforcing panel (A).




5. Installation is the reverse of removal.

HEATER CONTROL UNIT REPLACEMENT
1. Remove the center facia panel.

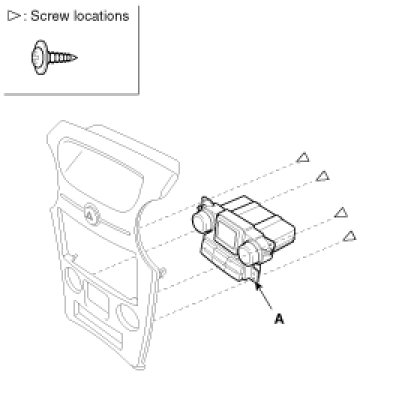

2. After loosening the heater control mounting screws,remove the heater control unit (A).




3. Installation is the reverse of removal.

NOTE:
Make sure the connector is plugged in properly

AUDIO ASSEMBLY REPLACEMENT
1. Remove the center facia panel.

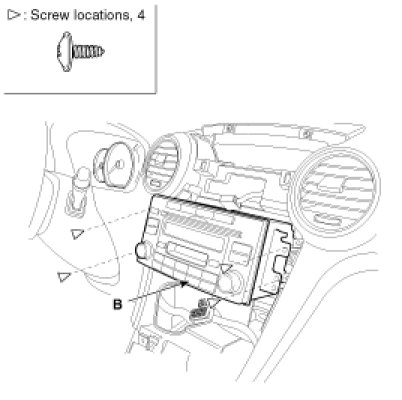

2. Loosen the audio (B) mounting screws.

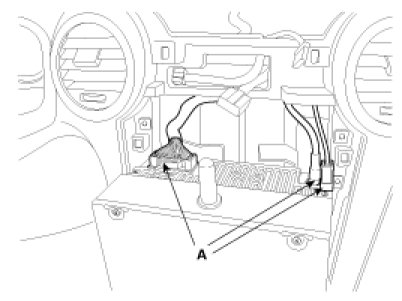

3. Disconnect the connector (A).




4. Installation is the reverse of removal.

NOTE:
Make sure the connector is plugged in properly.

GLOVE BOX REPLACEMENT

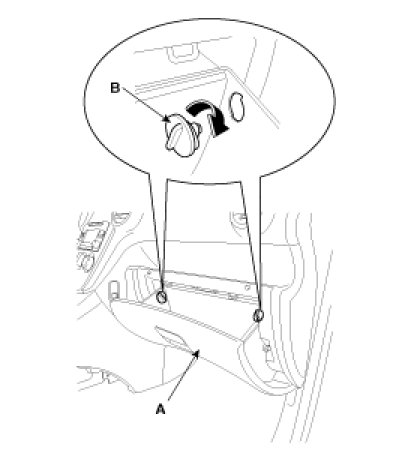

1. Disconnect the damper (B) from the glove box (A).




2. Disconnect the pine (A), then remove the glove box (B).




3. Installation is the reverse of removal.

AIR VENT REPLACEMENT

NOTE:
- When prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad.

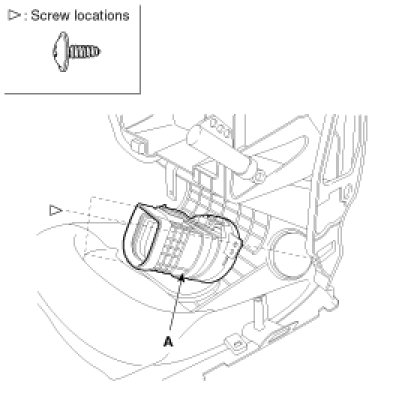

2. Loosen the mounting screws, then remove the air vent (A).




3. Installation is the reverse of removal.

SHROUD REPLACEMENT
1. Loosen the screws.
2. Remove the shroud assembly (A).




3. Installation is the reverse of removal.

COVER REPLACEMENT

NOTE:
- When prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad side cover (A).




2. Installation is the reverse of removal.

CRASH PAD REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the following items.
A. Front seat.
B. Cluster fascia panel, cluster.
C. Audio assembly.
D. Glove box.
E. Crash pad side cover.
F. Front pillar trim.

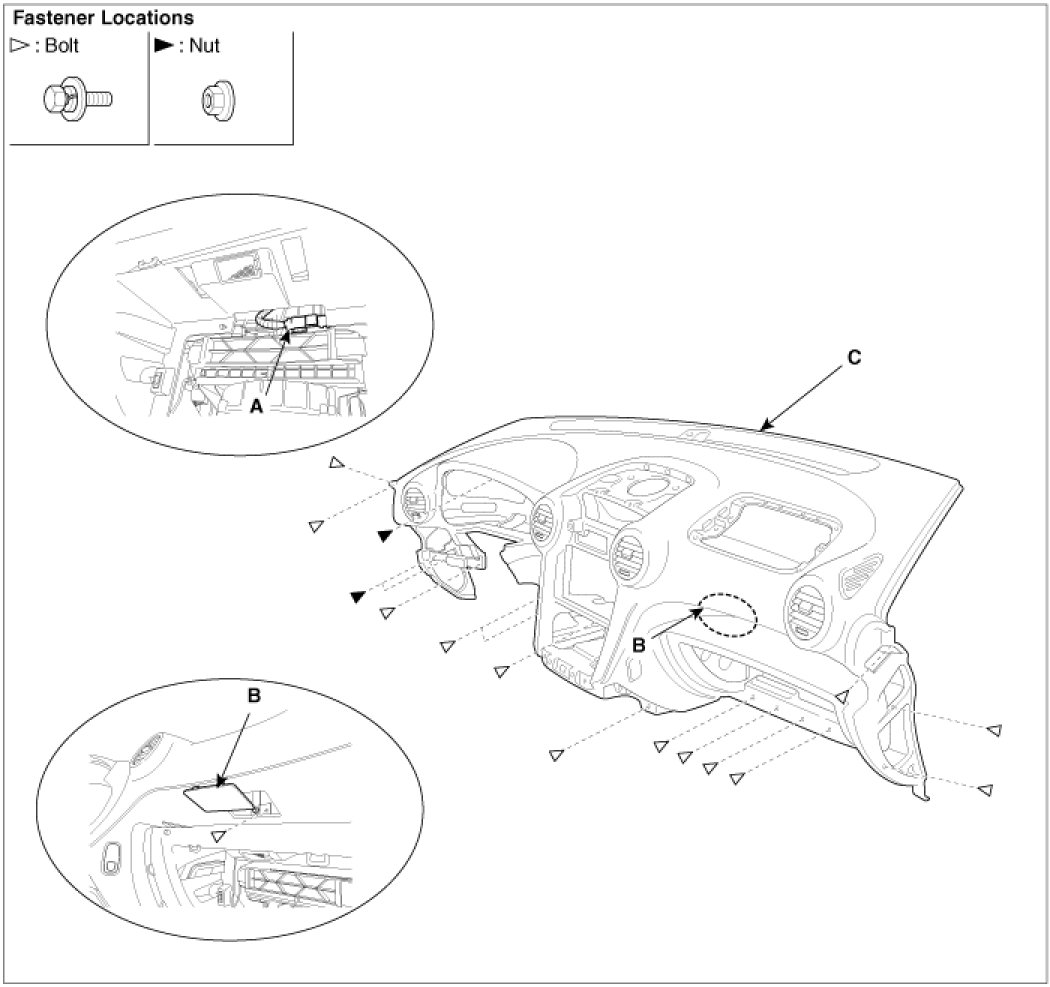

2. Remove the photo sensor.
3. Disconnect the passenger`s air bag connector (A).
4. Loosen the bolts and nuts, then remove the crash pad (C).
5. Installation is the reverse of removal.

NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly,
- Enter the anti- theft code for the radio, then enter the customer`s radio station presets.
