Component Inspection

Automatic Transaxle
P0885 A/T Control Relay Malfunction - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".
2. Remove "A/T CONTROL RELAY"

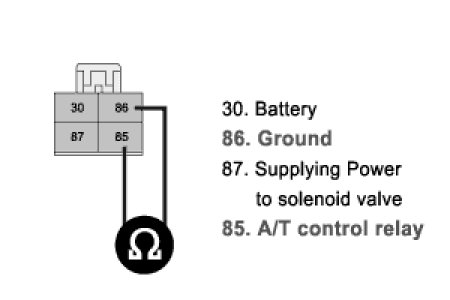

3. Measure the resistance between each teminal of the sensor

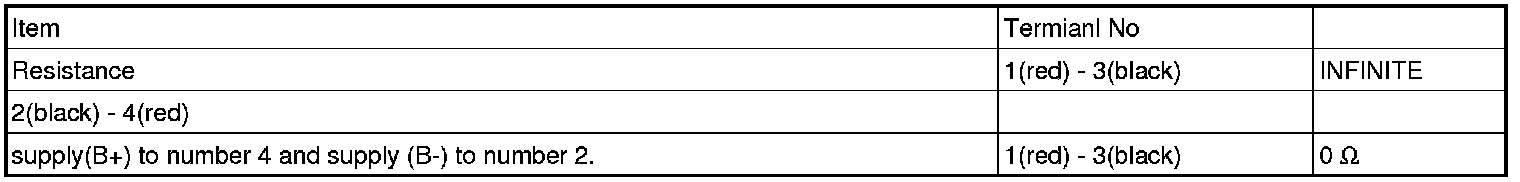

A. Specification:









4. Is resistance with in specifications?
YES
1) Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Replace ATM CONTROL RELAY and then go to "Verification of Vehicle Repair" procedure.
