Scantool Diagnostics

Tire Pressure Monitoring System
C1313 Sensor 2 RF channel Failure - Scantool Diagnostics:_:Monitor Scantool Data

Monitor Scantool Data

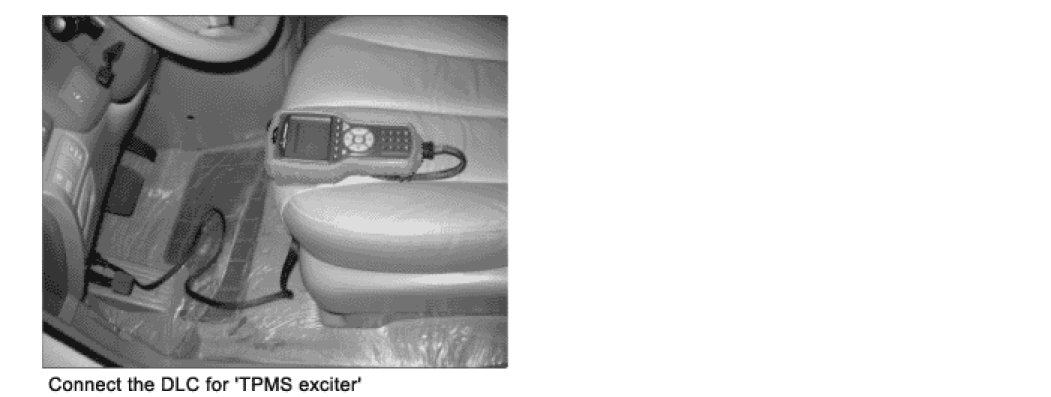

1. Connect 'TPMS exciter' or scantool to Data Link Connector(DLC).
2. Select "TPMS DIAGNOSIS" mode.
3. Select the "FULL" mode of "CURRENT DATA" function.

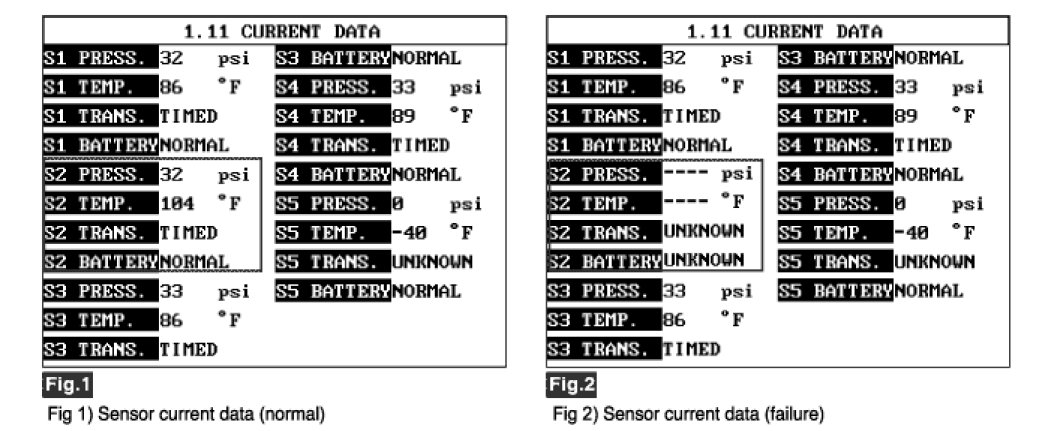

4. Monitor the parameters of 'Front Right WE sensor(S2)' on the 'TPMS exciter' or scantool.








5. Is parameter normal?
YES
1) Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.
2) Go to "Verification of vehicle Repair" procedure.
NO
1) Check for vehicle interference sources.
2) Repair if necessary and then go to "Verification of Vehicle Repair" procedure.
