Scantool Diagnostics

ABS/ESC
C1235 Primary pressure sensor - electrical - Scantool Diagnostics:_:Monitor Scantool data

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC)
2. Ignition "ON" & Engine "ON".
3. Press the brake pedal.

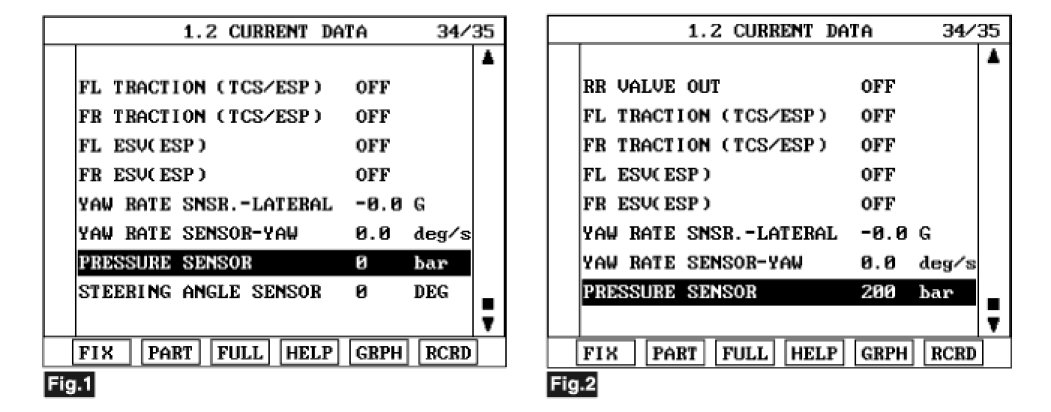

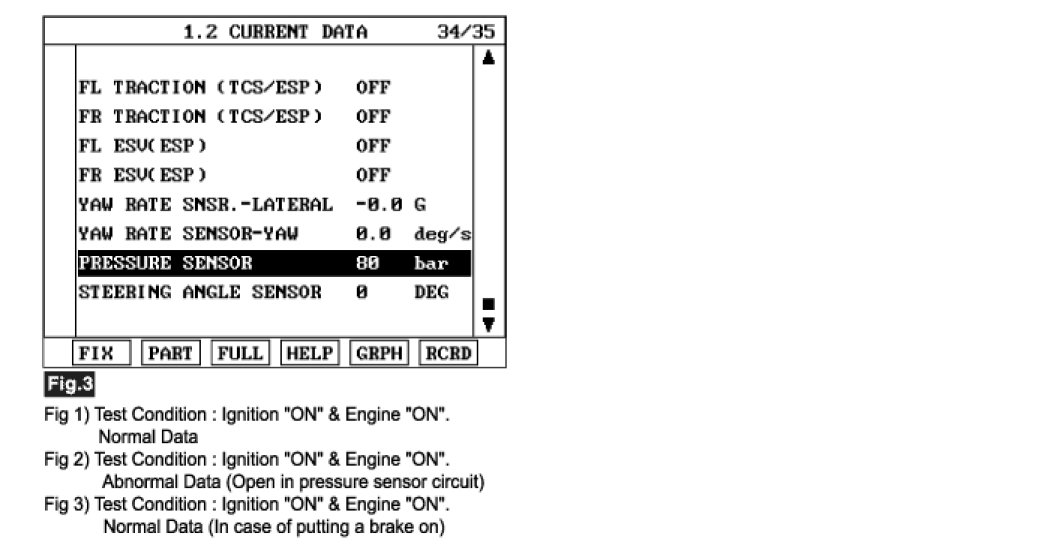

4. Monitor the "Pressure Sensor" parameter on the Scantool.
A. Specification : Approx. 60bar ~150bar (There is difference in displayed parameter according to braking force)








5. Is parameter displayed within specifications?
YES
1) Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "Verification of Vehicle Repair" procedure.
NO
1) Go to ""W/Harness Inspection" procedure.
