Scantool Diagnostics

Tire Pressure Monitoring System
C1126 Vehicle Battery Voltage Low - Scantool Diagnostics:_:Monitor Scantool Data

Monitor Scantool Data

1. Start engine and turn headight and rear defroster on.

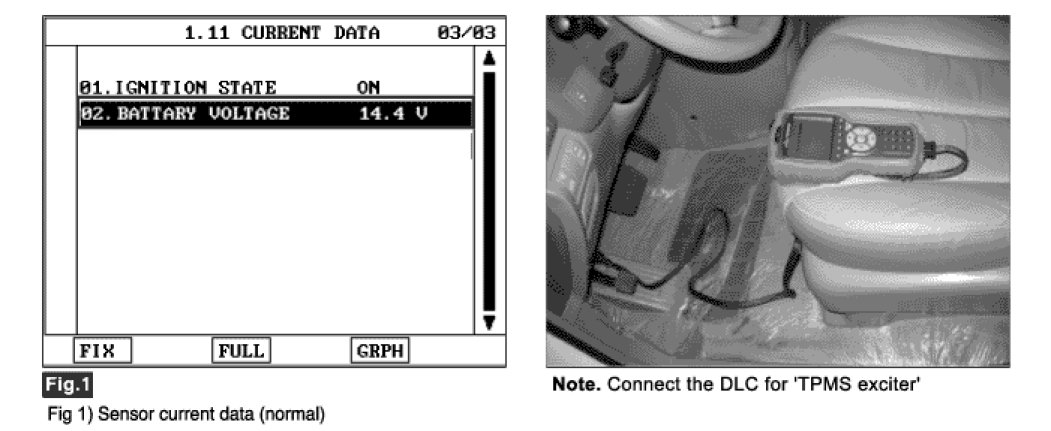

2. Connect 'TPMS exciter' or scantool to Data Link Connector(DLC).
3. Select "TPMS DIAGNOSIS" mode.
4. Select the "INPUT VALUES" mode of "CURRENT DATA" function.
5. Maintaining ENG. RPM at 2,500RPM(idle) over 2 minutes.
6. Monitor the parameter of 'BATTARY VOLTAGE' on the 'TPMS exciter' or scantool.
A. Specification : 'BATTARY VOLTAGE' is more than 10 V




7. Is parameter within specifications?
YES
1) Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.
2) Go to "Verification of vehicle Repair" procedure.
NO
1) Go to "Inspection/Repair" procedure.
