Components And Components Location

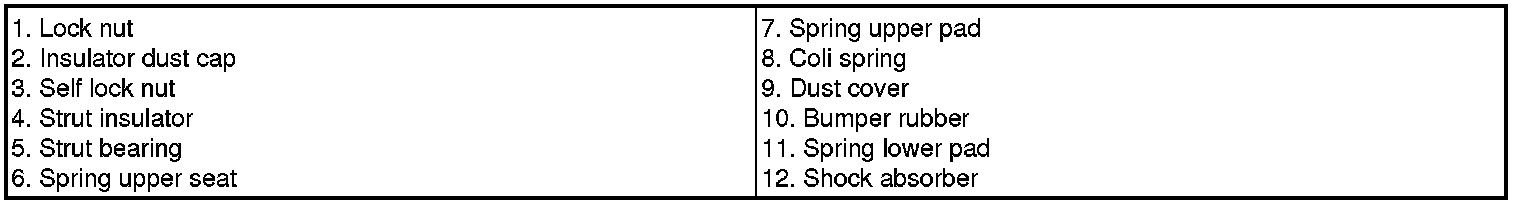

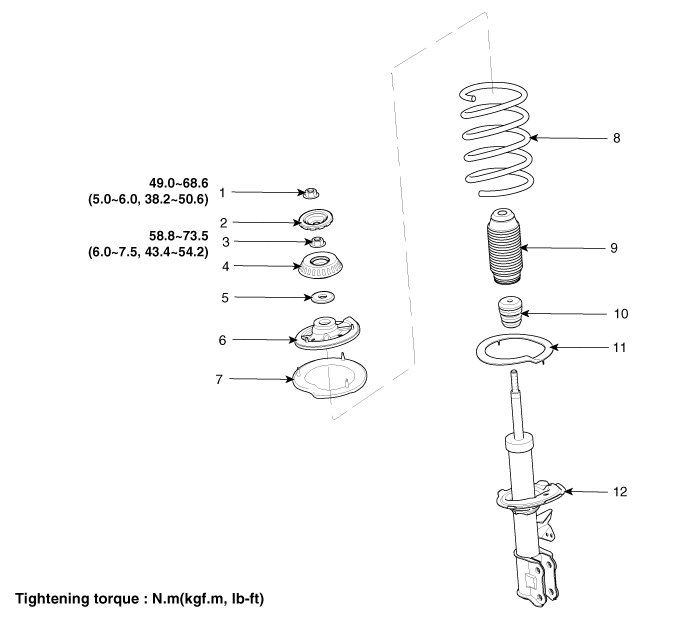

Components

CAUTION:
- Tighten with specified torque at curb position of vehicle
- Fix the strut rod end and tighten the nut
