Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Service and Repair >> Removal and Replacement >> Standard Alternator >> Components And Components Location

Components And Components Location

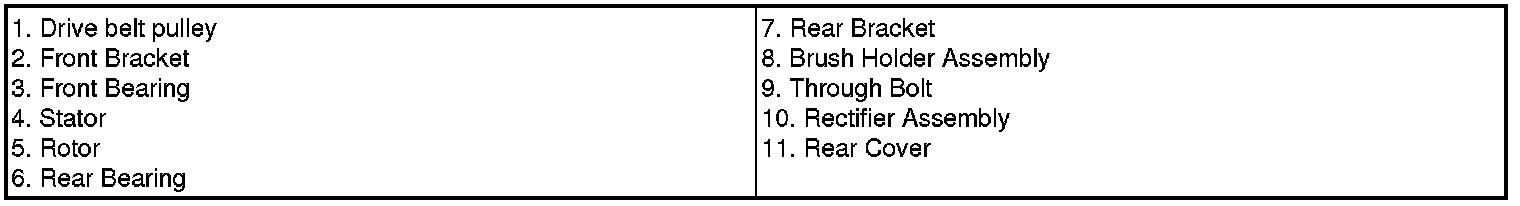

Components

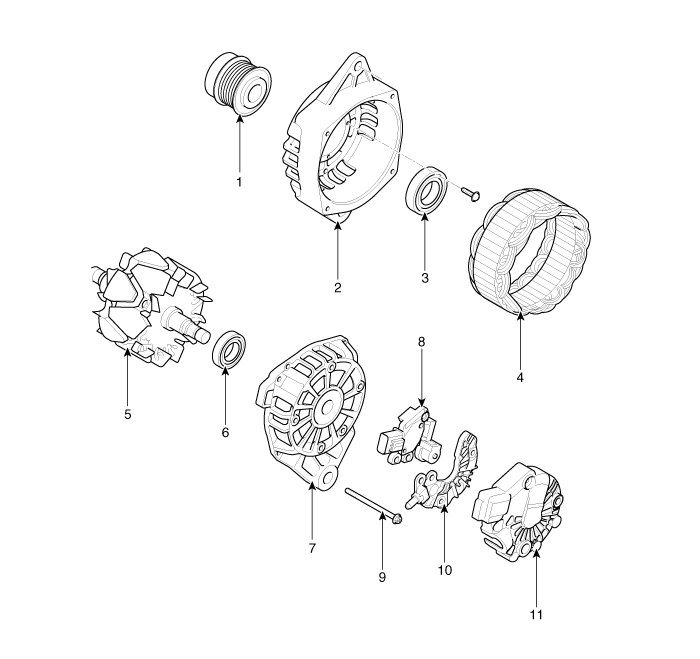

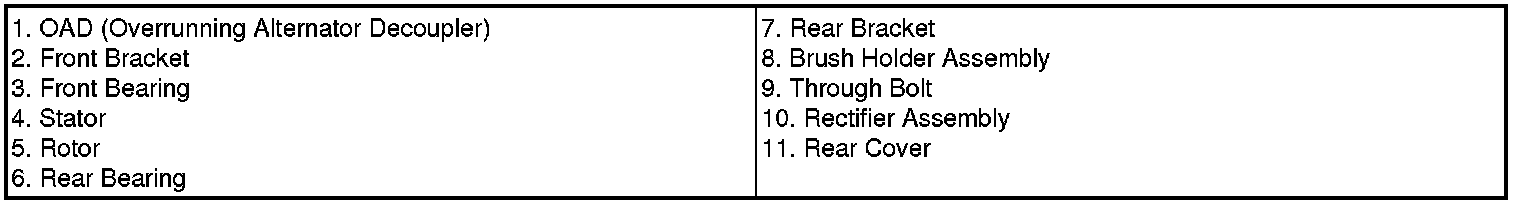

[AMS type (OAD)]

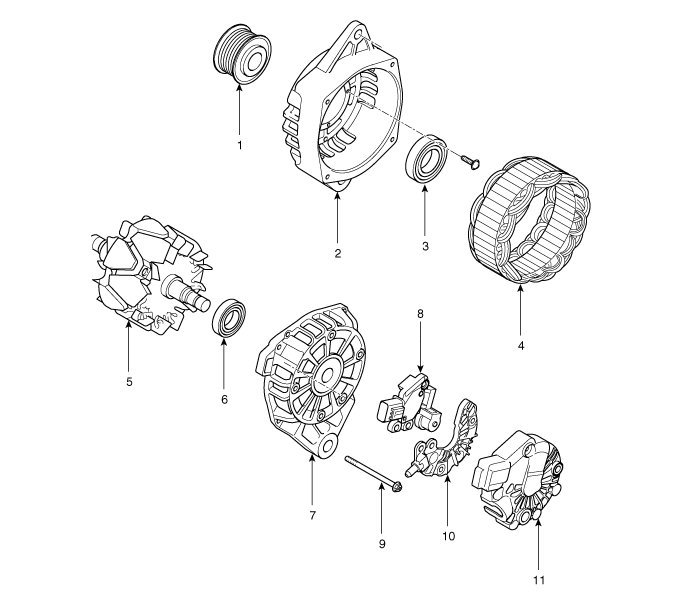

[ISG/AMS type (NON-DAD)]
