Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications

System Specifications

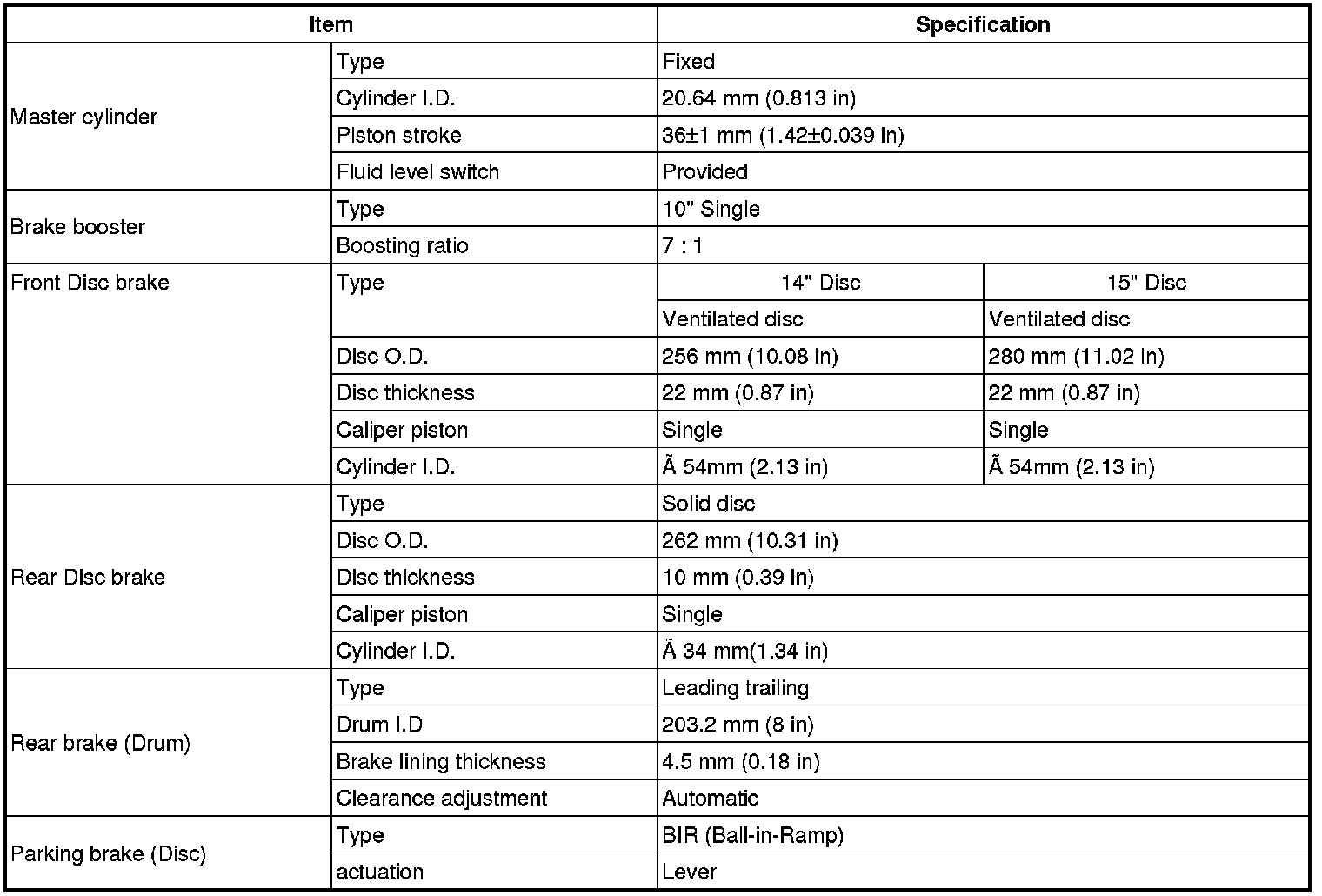

Specifications





NOTE:
O.D.: Outer Diameter
I.D: Inner Diameter

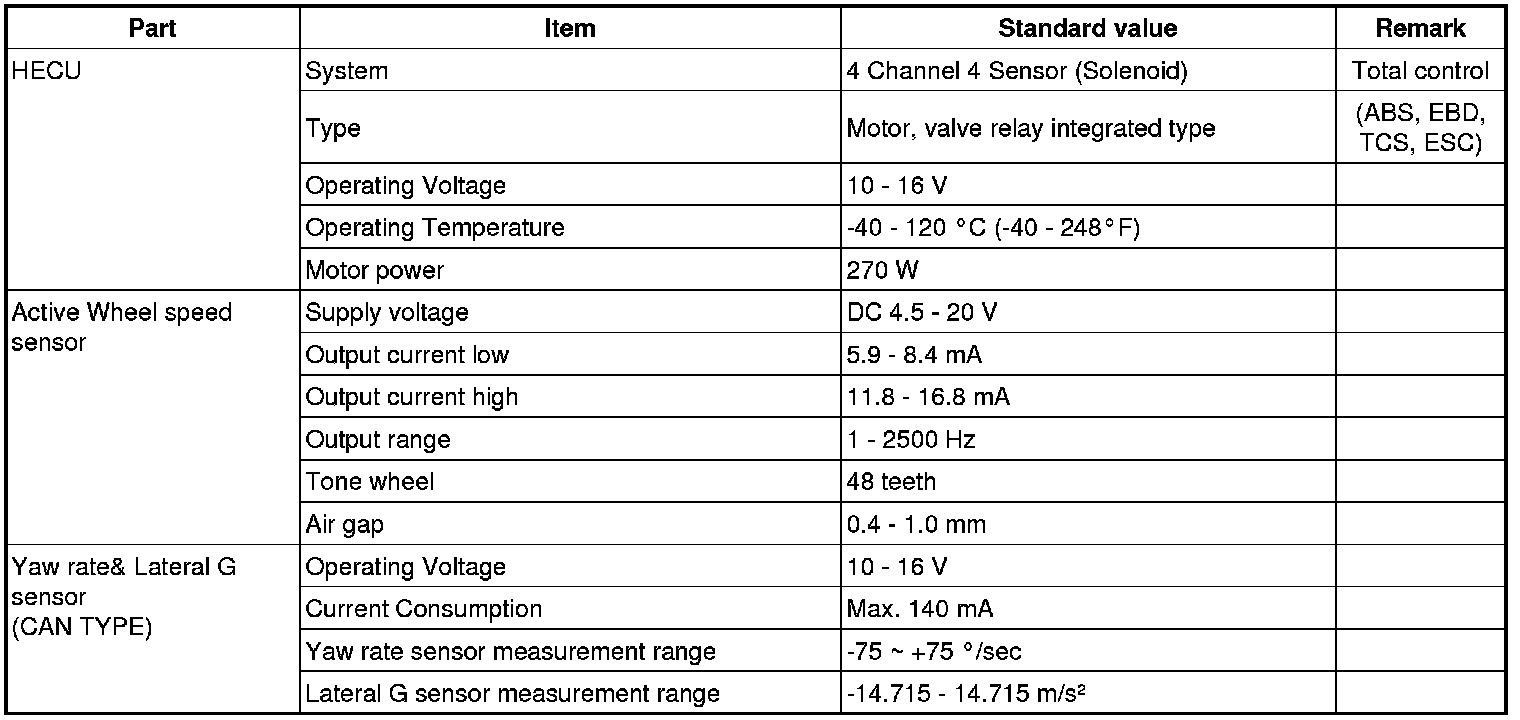

Specification (ESC)

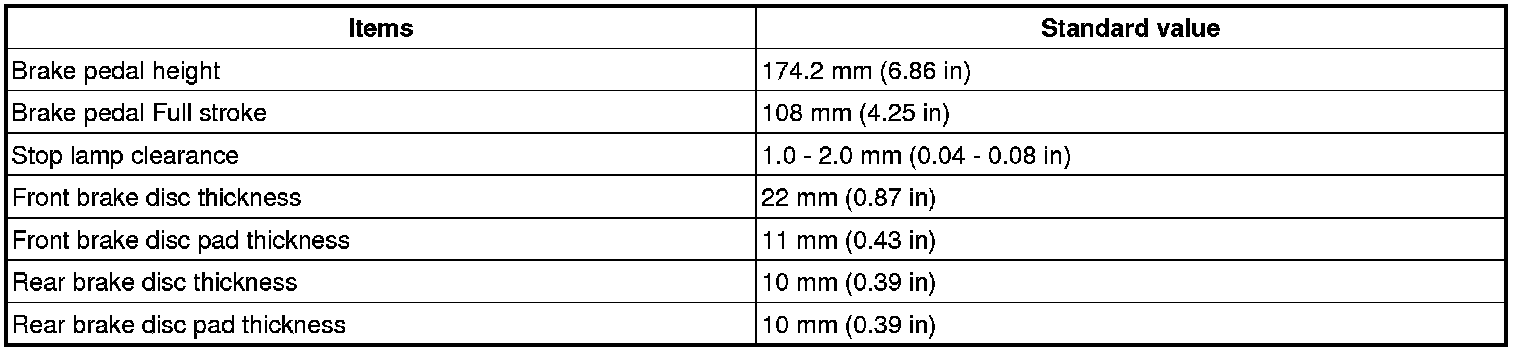

Service Standard

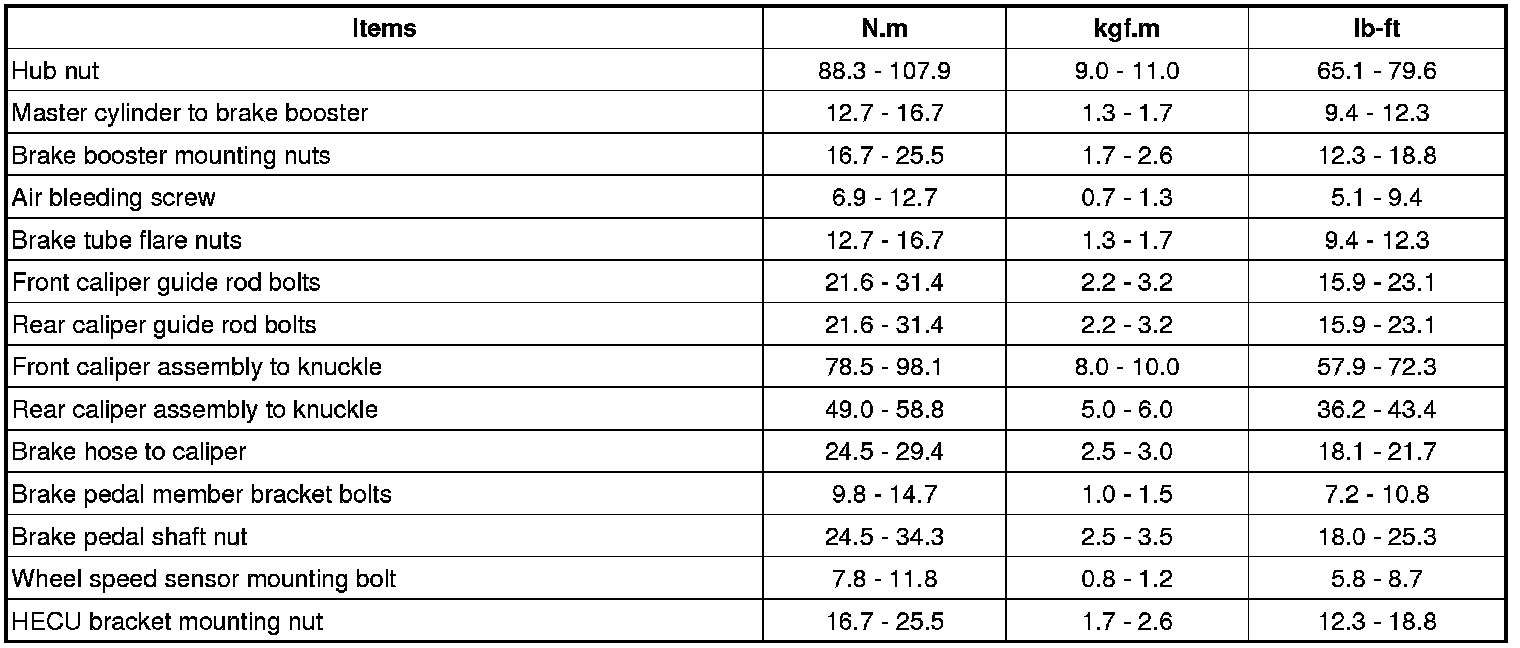

Tightening Torques

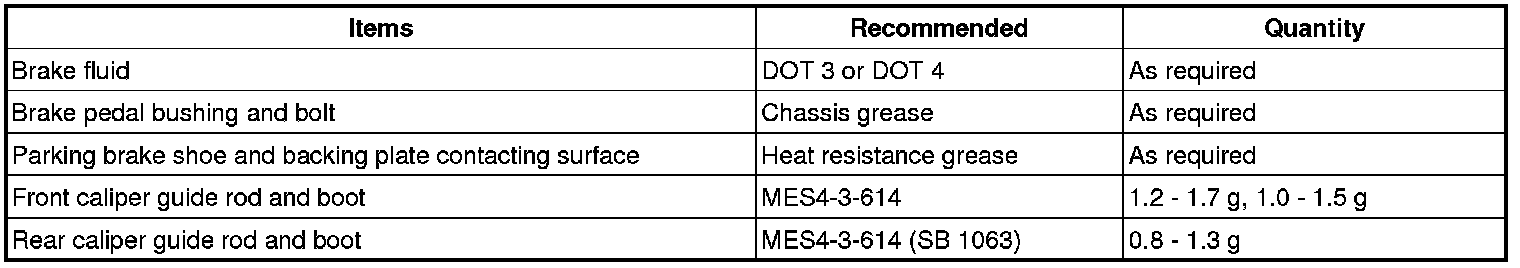

Lubricants
