System Specifications

Specification

Charging System

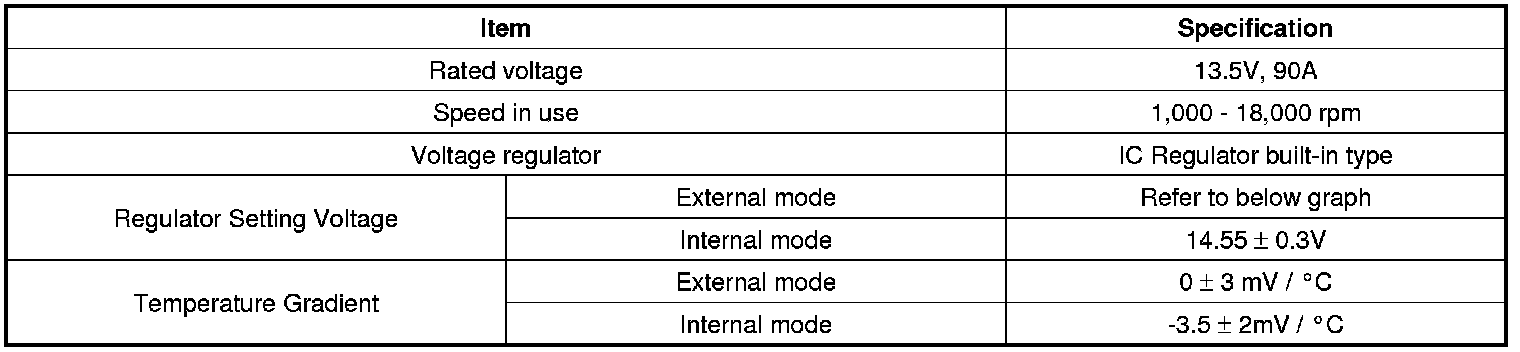

Alternator [AMS type (NON-OAD)]









** Regulator Setting Voltage (External mode)

Alternator [ISG type (NON-DAD) / AMS type (OAD)]









** Regulator Setting Voltage (External mode)

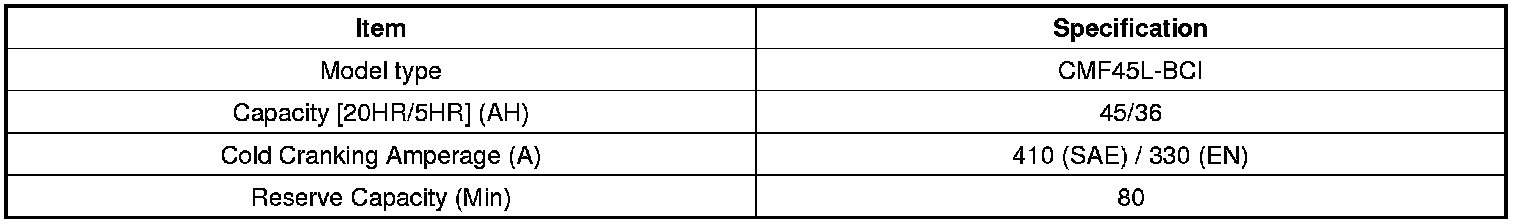

Battery [Non-ISG type]






AGM Battery [ISG type]






CAUTION:
- Model type description




- Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
- The rating is the number of amps a new, fully charged battery can deliver at -18 °C(-0.4 °F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
- The higher the CCA rating, the greater the starting power of the battery.
- RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
- The rating is the number of minutes a battery at 26.7 °C(80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
- The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

Tightening Torques
