Wiper Relay: Locations

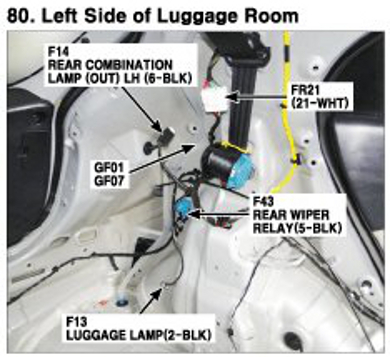

Component Location













Fuse & Relay Information

PCB Fuse & Relay Box View:




PCB Fuse & Relay Box Circuit Details:
