Components And Components Location

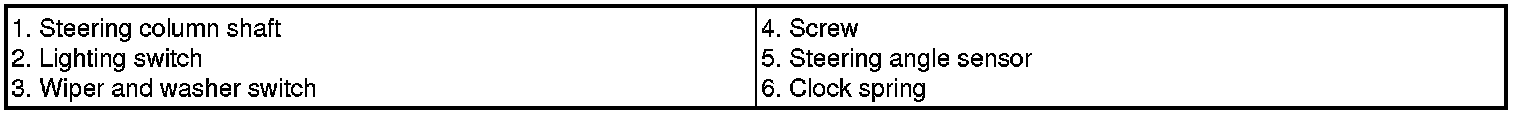

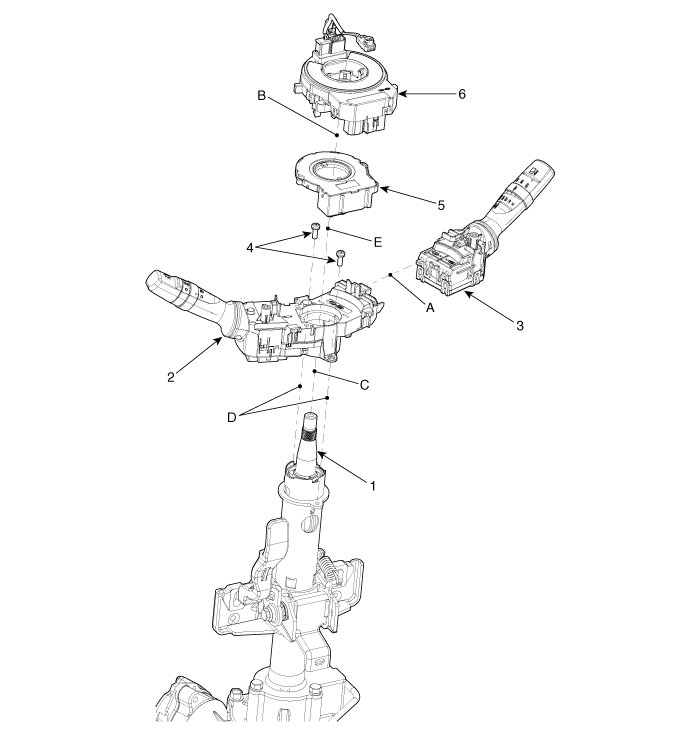

Component(1)




** Installation order : A -> B -> C -> D -> E

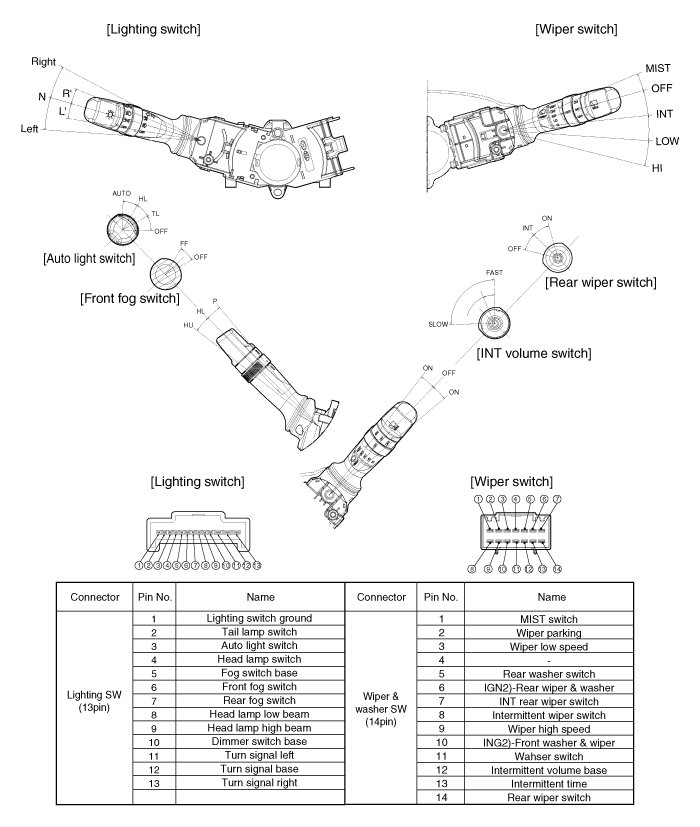

Component(2)
