Lighting and Horns: Testing and Inspection

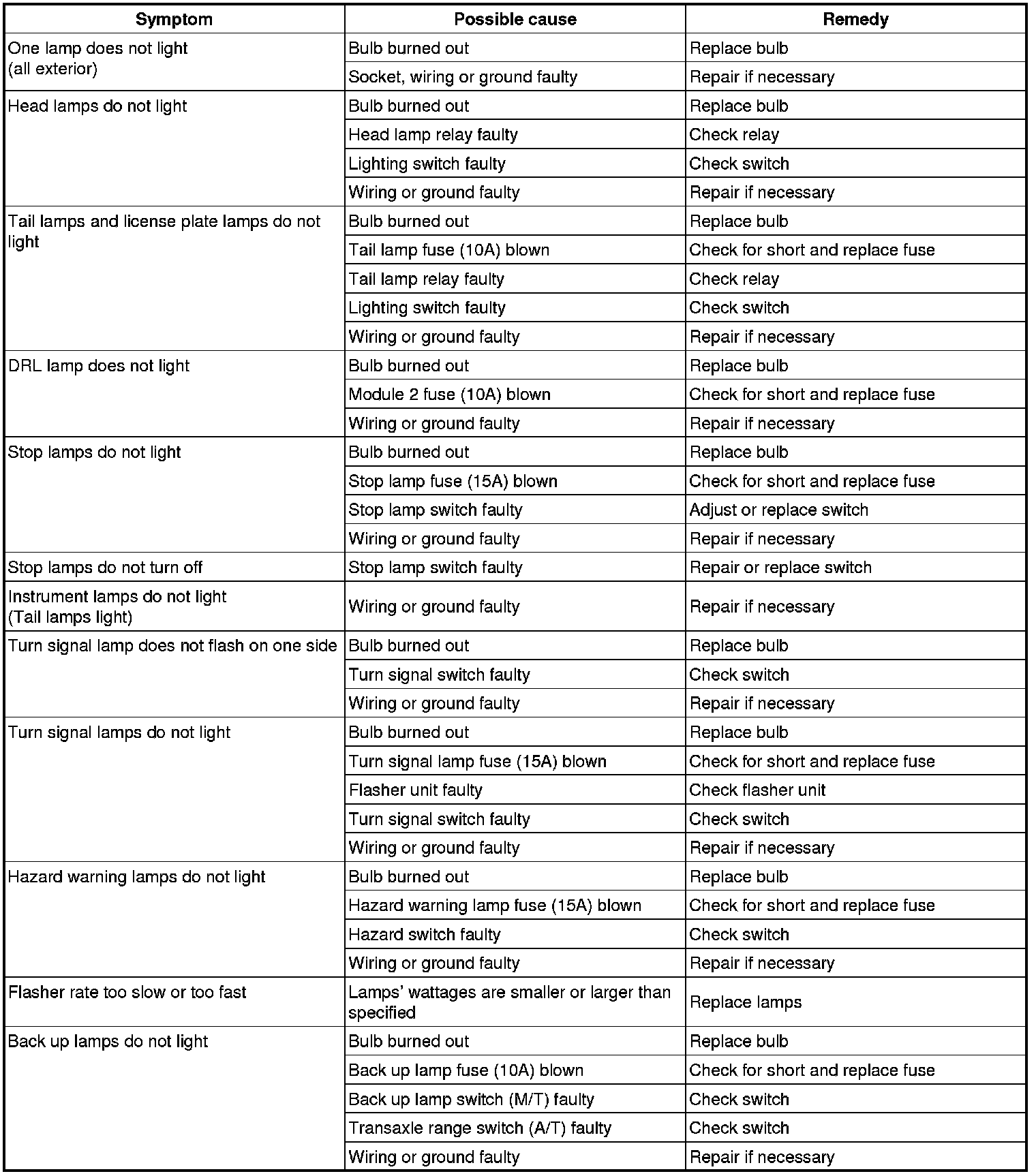

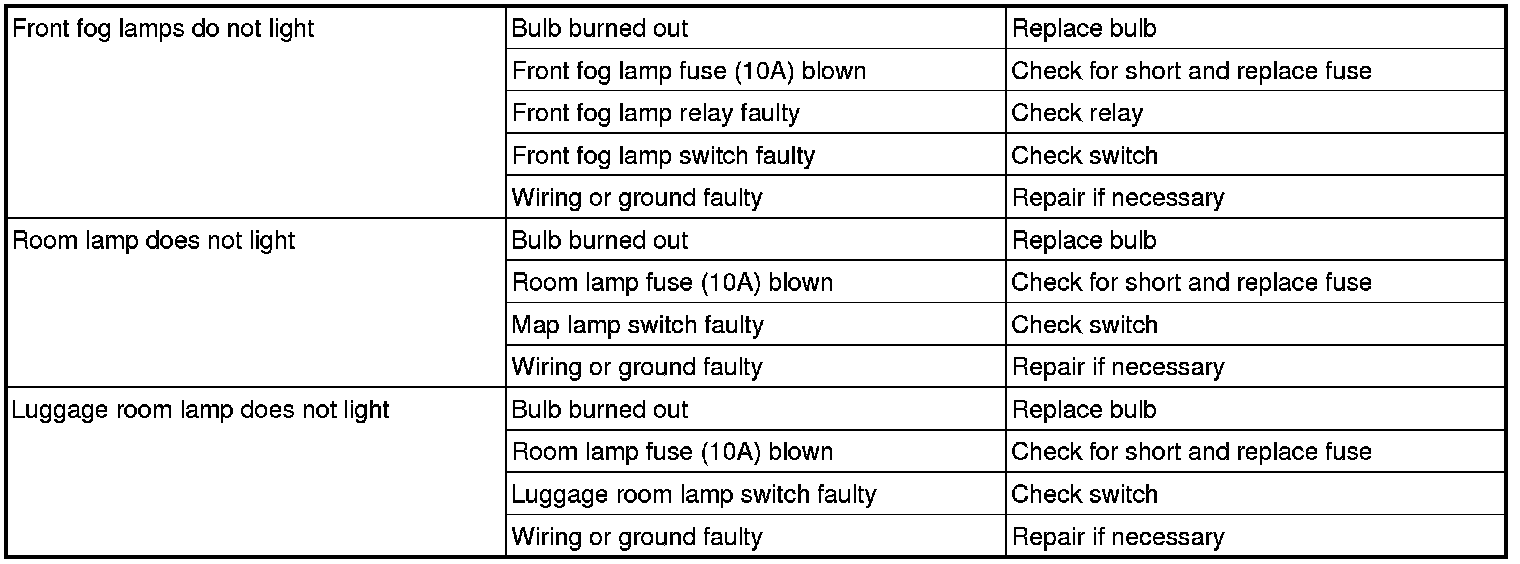

Troubleshooting

1. The lamp switch inputs can be checked using the GDS.
2. To check the input value of lamp switch, select option "Body Control Module".

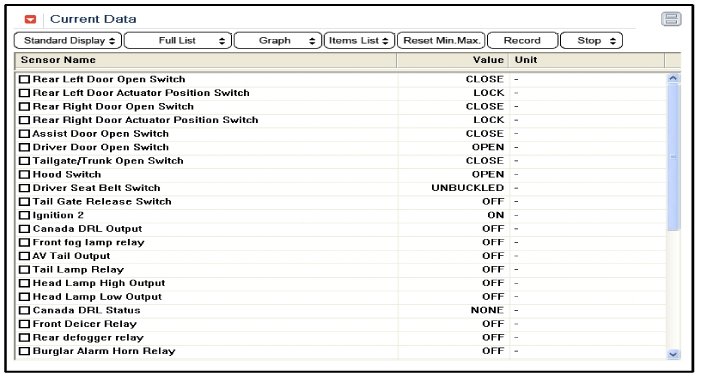

3. To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of door lock/unlock, lamp control and power window timer etc.

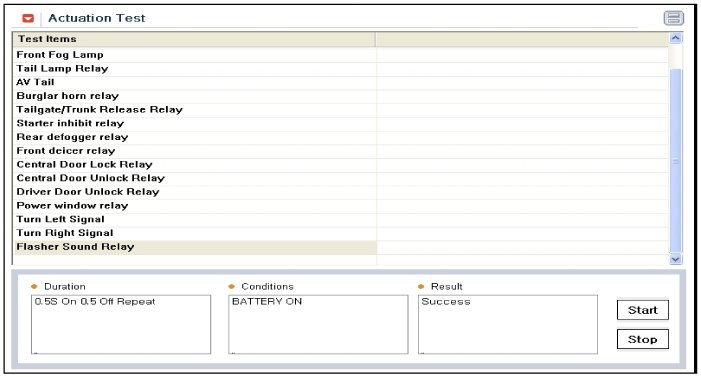

4. To check the input value of lamp switch in force mode, select option "Actuation Test of smart junction box".
