Headlamp Relay: Locations





Component Location









Fuse & Relay Information

PCB Fuse & Relay Box View:

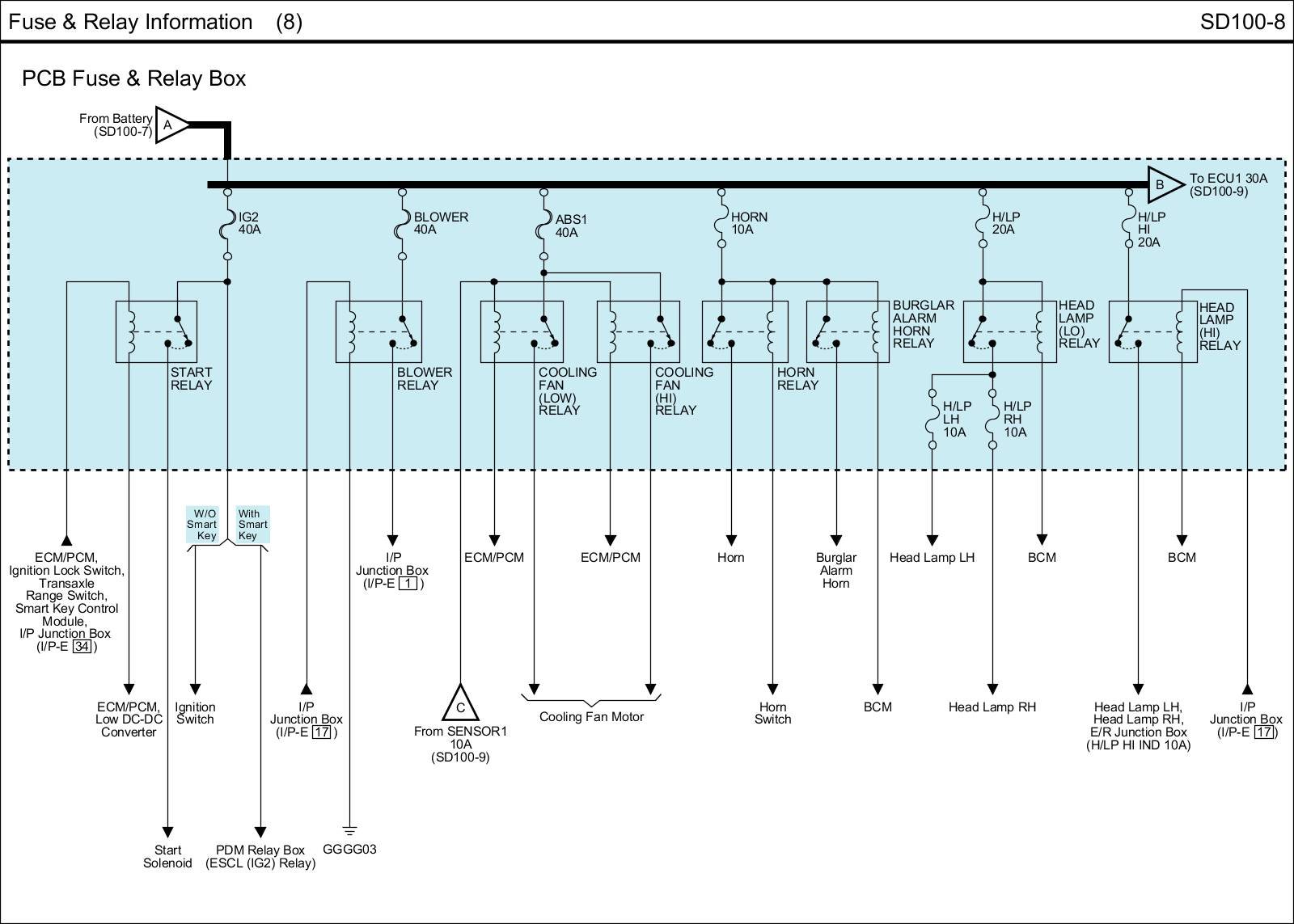

PCB Fuse & Relay Box Circuit Details:





E/R Fuse & Relay Box View:
