Cluster Ionizer (FATC only)

Inspection

1. Press the MODE switch more then 4 times within 2 seconds while pressing the OFF switch.

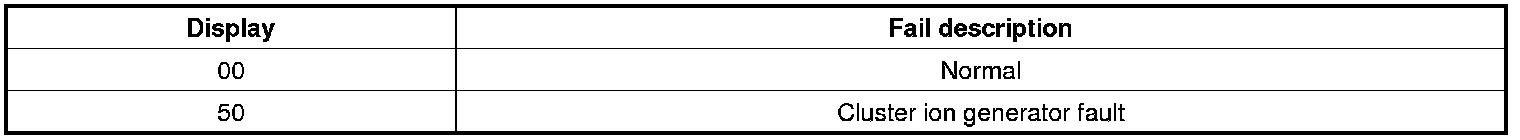

* For diagnostic procedure, refer to DTC guide.

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the glove box.

3. Disconnect the connector (A) and then remove the cluster ionizer (B) after loosening the mounting screws.




4. Install in the reverse order of removal.
