Temperature Control Actuator

Inspection

1. Turn the ignition switch OFF.
2. Disconnect the temperature control actuator connector.

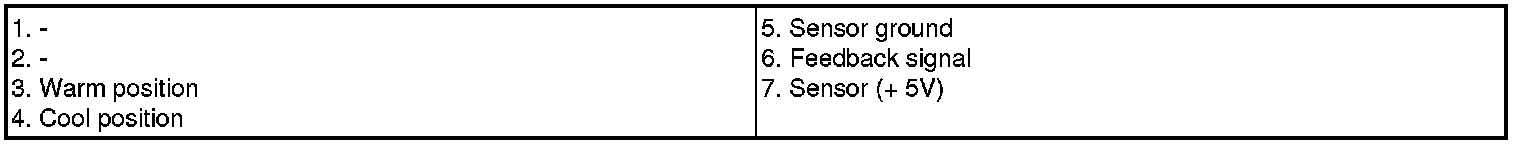

3. Verify that the temperature control actuator operates to the warm position when connecting 12V to terminal 3 and grounding terminal 4.
Verify that the temperature control actuator operates to the cool position when connecting in the reverse.









4. Connect the temperature control actuator connector.
5. Turn the ignition switch ON.
6. Check the voltage between terminal 6 and 5.

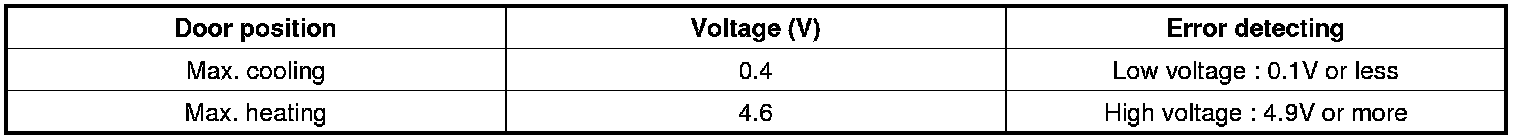

Specification





It will feedback current position of actuator to controls.
7. If the measured voltage is not within specification, substitute with a known-good temperature control actuator and check for proper operation.
8. Replace the temperature control actuator if it is proved that there is a problem with it.
