Mode Control Actuator

Inspection

1. Turn the ignition switch OFF.
2. Disconnect the mode control actuator connector.

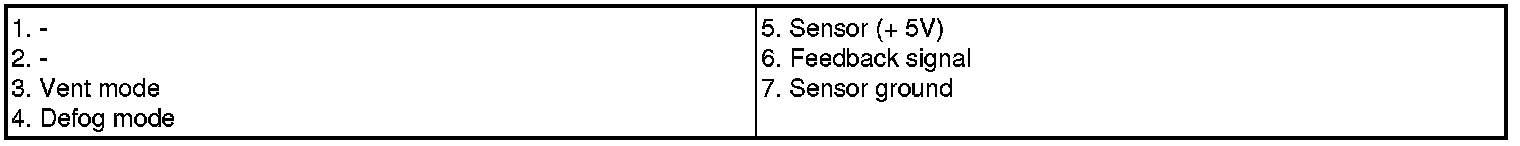

3. Verify that the mode control actuator operates to the defog mode when connecting 12V to terminal 4 and grounding terminal 3.
Verify that the mode control actuator operates to the vent mode when connecting in the reverse.









4. Connect the mode control actuator connector.
5. Turn the ignition switch ON.
6. Check the voltage between terminal 6 and 7.
Specification

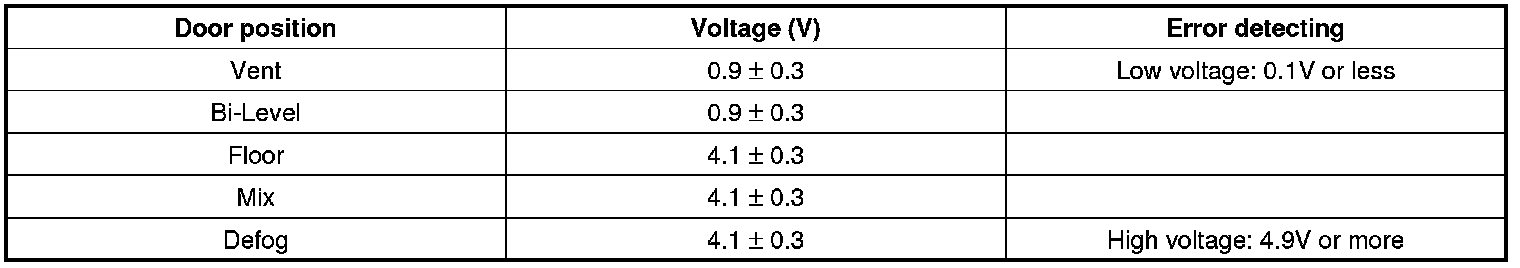

With auto defogging activated

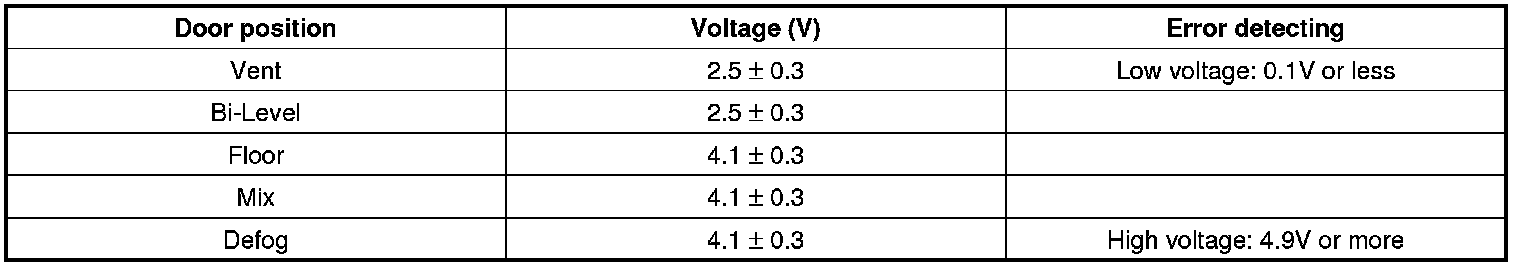

With auto defogging deactivated





It will feedback current position of actuator to controls.
7. If the measured voltage is not within specification, substitute with a known-good mode control actuator and check for proper operation.
8. Replace the mode control actuator if it is proved that there is a problem with it.
