Radiator: Description and Operation

Description

[Air conditioning type]
The cooling fan operates in 2 stages (HIGH/LOW). The engine control module (ECM) controls the cooling fan according to the coolant temperature, vehicle speed and A/C operation.

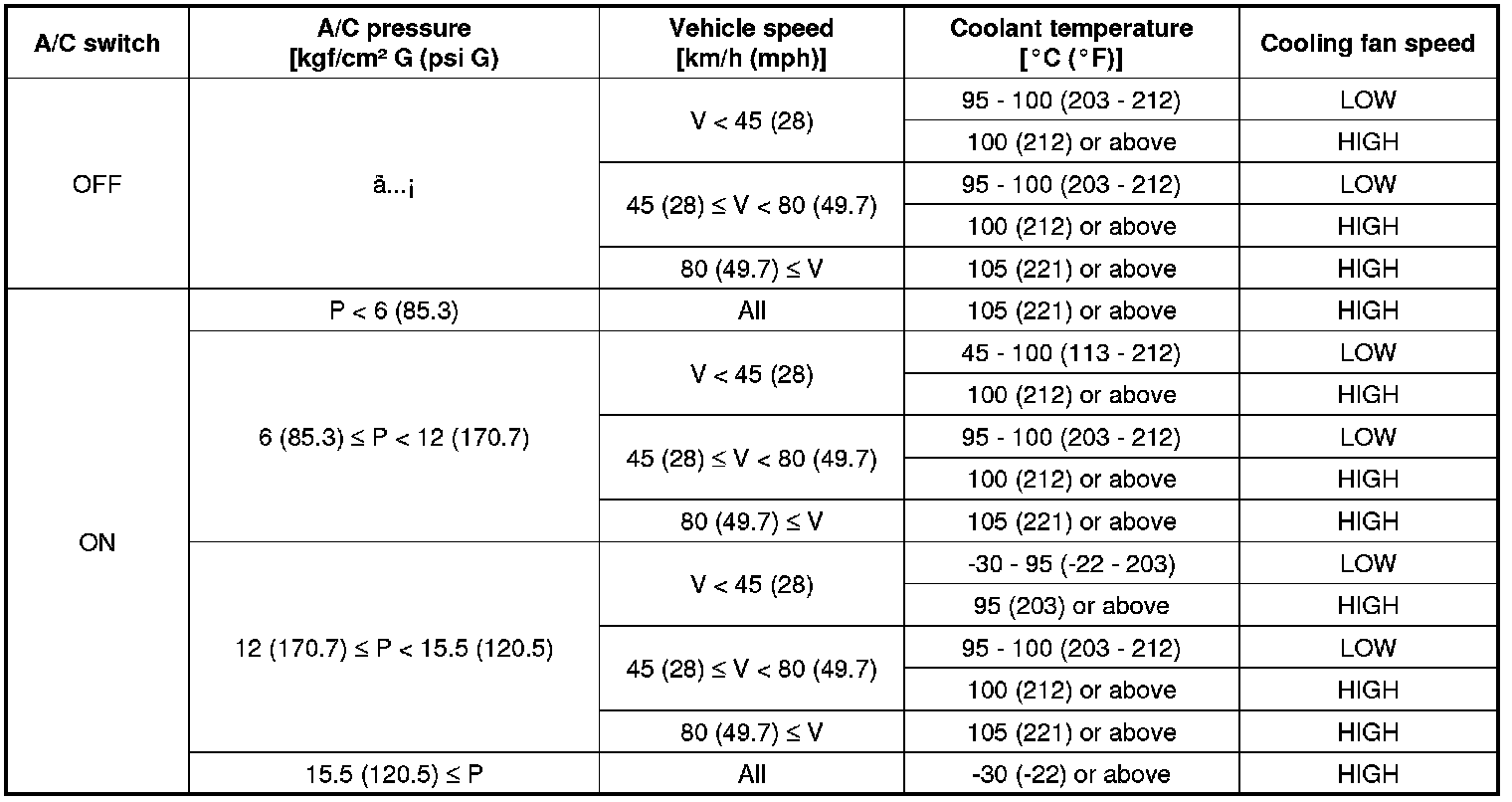

[Cooling fan operation conditions]






[Non-Air conditioning type]
The cooling fan operates in 1 stages (HIGH). The engine control module (ECM) controls the cooling fan according to the coolant temperature, vehicle speed and A/C operation.

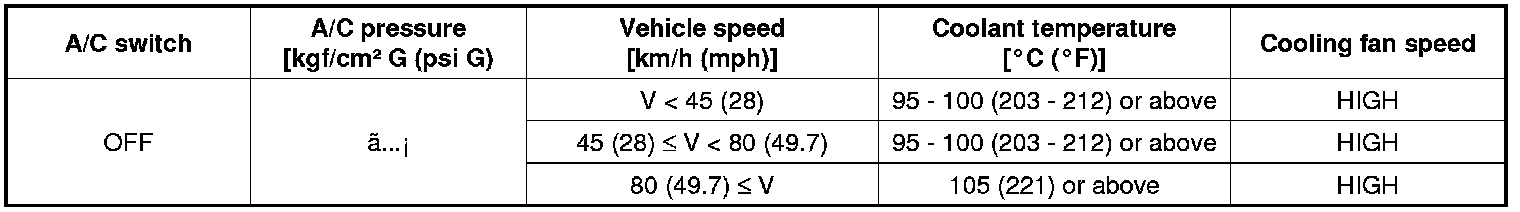

[Cooling fan operation conditions]
