Home
>>
Kia
>>
2012
>>
Rio L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Front Harness
Front Harness

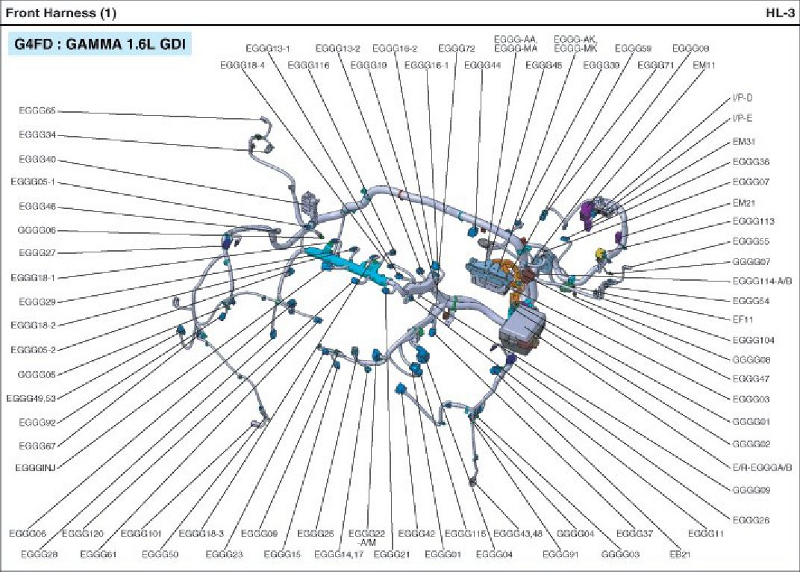

Front Harness View:

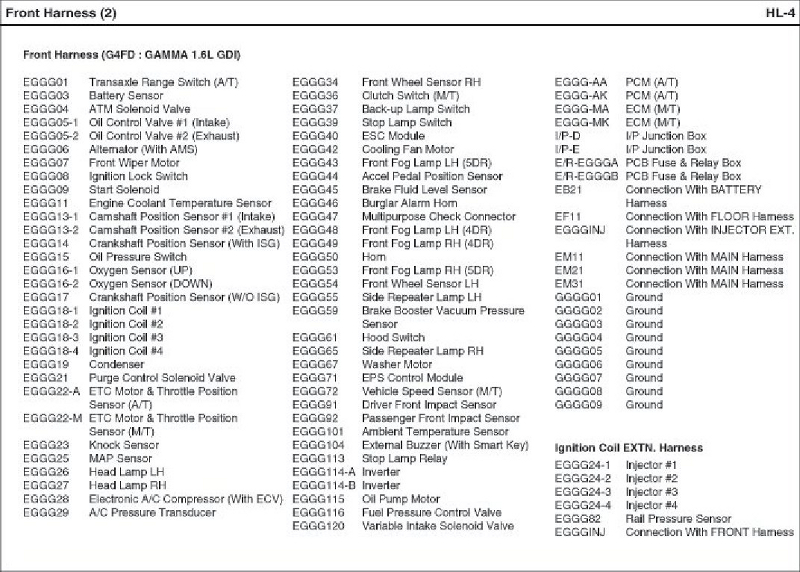

Front Harness Index:
